100-130kg/H Vibrating Fluidized Bed Dryer
Product Details
130kg/h Vibrating Fluidized Bed Dryer
,100kg/h Vibrating Fluidized Bed Dryer
,450v fluidized bed dryer in food industry
Vibrating fluidized bed drying equipment for magnesium sulfate ethylene

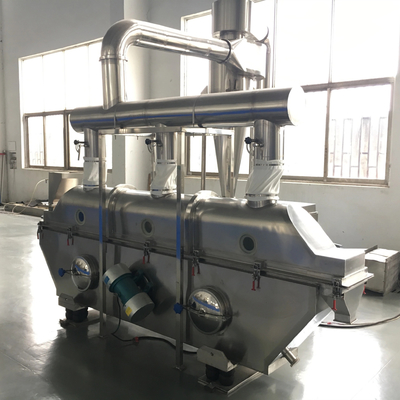

Vibrating Fluidized Bed Dryer
Vibrating fluidized bed dryer is a kind of intensified drying device with special purpose. It is usually used for the final drying of materials.As the material fluidization is assisted by mechanical vibration in the drying process, it is not only beneficial to the boundary layer turbulence and the enhancement of heat and mass transfer, but also ensures the drying equipment to work under the relatively stable flow mechanical conditions.This equipment has a good drying function, but also according to the needs of the process with material cooling, screening and conveying processes.At present, it has been widely used in sugar, medicine, fertilizer, chemical industry, plastics, dairy products, salt industry, and mining and metallurgy industries.The technology is basically mature and has been serialized.
1. Raw material is heated evently and heat exchange is fully used and dry capacity is high. Compared with ordinary drier, the energy can be saved about 30%.
2. The vibration is created by motor. It is stable in operation and convenient in maintenance, low noise and long life.
3. The fluided state is stable and no dead angle and phenomenon of broken out.
4. It is good in regulation and wide in suitability. The thickness of raw material layer and movable speed inside the machine and the total amplitude can be adjusted through continuous variable speed.
5. It is small for damaging the surface of raw material. The equipment can be used for drying raw materials that are easy broken.The drying effect can not be affected even if raw materials have anomaly shape.
6. Adopts full sealed structure.It is effective to prevent from cross pollution between raw material and air because the equipment adapts fully closed structure. The environment of operation is clean.

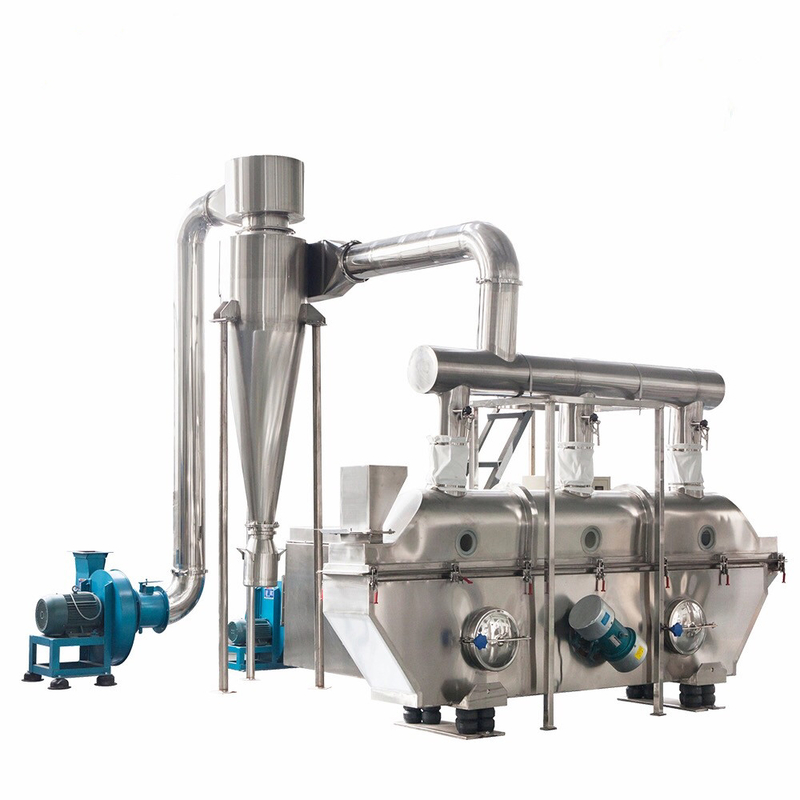

Raw material is fed into the fliud bed dryer from the inlet and moves forward continuously along with the level of fluidized-bed under the action of vibration.The hot air passes through fluidized-bed and carries out heat exchange with damp raw material.Then the damp qir is exhausted out through cyclone separator and duster the dry raw material is discharged through discharge outlet.
The machine is suitable for drying, cooling, humidifying of powder and granule materials in chemistry, pharmaceutical, foodstuff, beverage and mining industries, also can be used for drying, cooling and humidifying simultaneously.
1. Pharmaceutical and chemical industries: All kinds of press tablet and granules, boric acid, borax, dihydroxy benzene, malice acid, malefic acid and so on.
2. Foodstuff industry: Distiller’s grains, monosodium, edible salt, mine residue, bean seed, mushroom essence, chicken essence, desiccated coconut and so on.
3. It can also used for raw materials to add up damp or cooling so on.
Raw material feature:
1: material particles are too big or irregular need to fluid.
2: lower speed fluidization is needed to keep particles complete,
3: materials are sticky or sensitive to temperature.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
-
