210kg/H 6.75m2 Continuous Vibrating Fluidized Bed Dryer For Refined Oxalic Acid
Product Details
210kg/h Vibrating Fluidized Bed Dryer
,Refined Oxalic Acid Fluidized Bed Dryer
,6.75m2 continuous fluidized bed dryer
Fluidized bed drying equipment refined oxalic acid continuous dryer

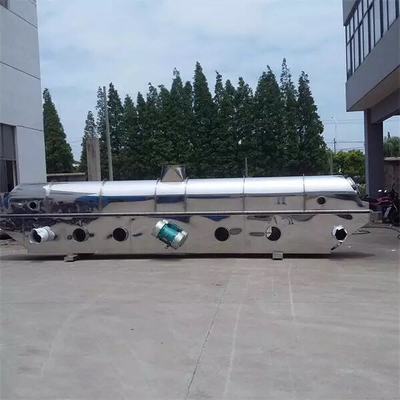

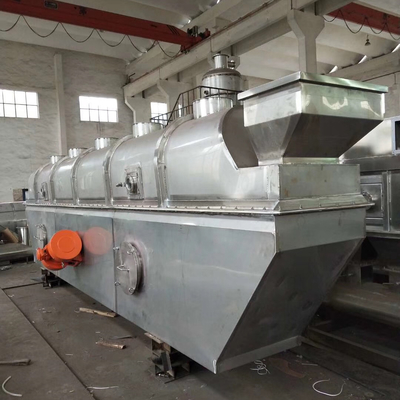

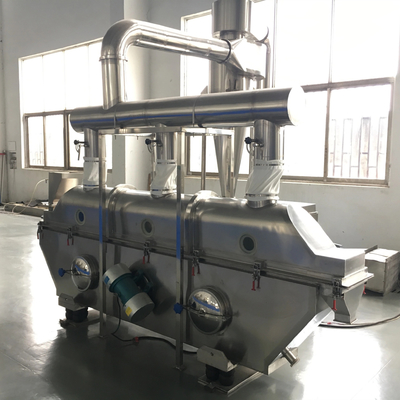

Vibrating Fluidized Bed Dryer
WORKING PRINCIPLE
The raw material is fed into the dryer from the feeding inlet and the material will continue moving along with the fluidized bed level under the action of vibration. The hot air passes through fluidized bed and carries out heat exchange with damp raw materials. The wet air is exhausted out by the cyclone separator and the dried material will be discharged from the discharge outlet.
APPLICATION
This dryer is widely used for drying, cooling, wetting of the products in the light industry, chemical industry, pharmaceutical industry, foodstuff, and etc.
Technical parameters
| Model | Area of fluidi bed(㎡) | Temperature of inlet air(℃) | Temperature of outlet air(℃) | Water evaporation capacity (kg/h) | Motor Power(kW) | Weight (kg) |
| WKS-FBD-3*0.3 | 0.9 | 70-140 | 40-70 | 20-35 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.3 | 1.35 | 70-140 | 40-70 | 35-50 | 0.8*2 | 1250 |
| WKS-FBD-4.5*0.45 | 2.025 | 70-140 | 40-70 | 50-70 | 1.1*2 | 1670 |
| WKS-FBD-4.5*0.6 | 2.7 | 70-140 | 40-70 | 70-90 | 1.1*2 | 1670 |
| WKS-FBD-6*0.45 | 2.7 | 70-140 | 40-70 | 80-100 | 1.5*2 | 2100 |
| WKS-FBD-6*0.6 | 3.6 | 70-140 | 40-70 | 100-130 | 1.5*2 | 2400 |
| WKS-FBD-6*0.75 | 4.5 | 70-140 | 40-70 | 120-140 | 2.2*2 | 2840 |
| WKS-FBD-6*0.9 | 5.4 | 70-140 | 40-70 | 140-170 | 2.2*2 | 3160 |
| WKS-FBD-7.5*0.75 | 5.625 | 70-140 | 40-70 | 150-180 | 2.2*2 | 3200 |
| WKS-FBD-7.5*0.9 | 6.75 | 70-140 | 40-70 | 160-210 | 3.0*2 | 3600 |
Brief drawing
Applicable Materials
Boric Acid, Borax, Dihydroxybenzene, Malic Acid, Maleic Acid, Monosodium Glutamate, Oxalate, Potassium, Permanganate, Sesame, Pentaerythritol, HPAM, Hypha Protein, Sodium Sulfate, Sodium Borate, Plastic Archon, Catalyst, Baking Soda, Detergent, Quartz Sand, Bean Pulp, Edible Sugar, Refine Salt, Bean, Seeds, Mining Slag, Activated Clay, Compound Fertilizer, and etc.
FEATURES
1. The vibration is created by vibrating motor which is stable in operation, easy for maintenance, low noise, and long service life.
2. The material is being heated evenly and the heat exchange is fully used which ensured high drying capacity. The energy consumption is 30% lower compared to the common dryers.
3. The adjustability of the dryer is good and it is widely used in different industries. The material thickness, moving speed inside the dryer, and amplitude can be adjusted.
4. The damage to the material surface is small so the dryer can be used for fragile materials. The irregular particles will not affect the performance of the dryer.
5. A fully enclosed structure will effectively prevent cross-contamination between the material and the air environment.
6. Multiple series connections are optional if the material contents high moisture and required high capacity; such as Polyacrylamide.
-
