Product Details:
|
| Name: | Pressure Spray Dryer | Capacity: | 25-500 Kg/h Water Evaporation |
|---|---|---|---|
| Diameter Of Tower Body:: | 1300-3800mm | Total Height Of Equipment:: | 7800-19000mm |
| Warranty: | 1 Year | Material: | SUS304, SUS304L, SUS316, SUS316L |
| High Light: | 50kg/H Multifunctional Pressure Spray Dryer,Resin Dye Pressure Spray Dryer,Dia 1800mm Spray Dryer Machine |
||
Multifunctional Pressure Granulation Spray Dryer Resin Dye Intermediate Dryer

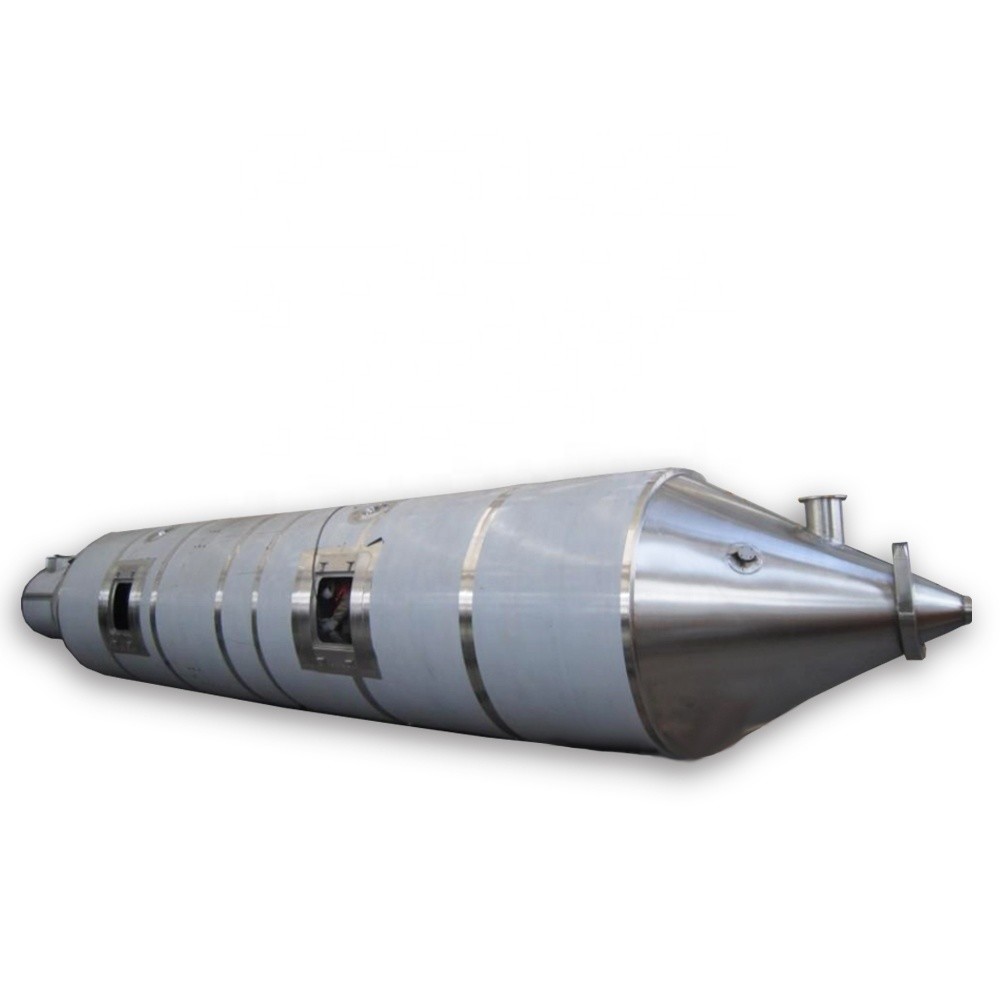

Pressure Spray Dryer
The material is sprayed into exiguity fog by nozzle on the top of tower. Follow the heat wind, the material is dried. The machine's charateristic is high collect drit, no past, economization energy, high efficent, and wide used in food, dyestuff, chemical industry and so on.
1. The dry speed is fast. The surface area of raw material liquid after atomized will be increased greatly, 95-98% of moisture can be evaporated at moment. The time to finish dry needs about ten seconds to several tens seconds. It is suitable for drying thermal sensitivity material particularly.
2. The finished products is ball granule with uniform size. Its fluidity and solubility are good. The purity of product is high and its quality is good.
3. The applied scope is wide. According to the characteristics of raw material, it can use hot air to dry and can also use cool air to granule. It has strong adaptability to raw materials.
4. Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.
Granulating through atomizing dry:
Chemical industry: organic catalyst, resin, synthetic washing powder, oils, thiamin, dyestuff, intermediate of dyestuff, white carbon black, graphite, ammonium phosphate and so on.
Foodstuff: amino acids and similar substances, flavoring, protein, starch, dairy products, extractive substance from coffee, fish powder, extractive substance from meat and so on.
Pharmaceutical: Chinese patent medicines
Granulating through atomizing:
all kinds of fertilizer, aluminum oxide, ceramics powder, pharmaceutical, heavy metallic super hardness steel, chemical fertilizer, washing powder, Chinese patent medicines and so on.
Technical parameters
| Model | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000-2000 | |
| Water evaporation kg/h | 25 | 50 | 100 | 150 | 200 | 300 | 500 | The index can be affirmed inaccordance with particle conditions. | |
| DiaphragmPump | Power kW | 0.35 | 4 | 7.5 | 11 | 15 | 22 | 30 | |
| Pressure Mpa | lt can be regulated from 0.6-5, usually, it is between 1-3 when in operation | ||||||||
| Heating way | Electricity | Electricity+steam | Electricity+coal(oil) hot air furnace | ||||||
| Diameter of tower mm | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | ||
| Total height of equipment mm | 7800 | 9200 | 11600 | 14000 | 15300 | 17100 | 19000 | ||
APPLICATION
Chemical industry: Sodium Fluoride (Potassium ), Alkaline Dyestuff And Pigment,Dyestuff Intermediate, Mn3o4, Compound Fertilizer, Formic Silicic Acid, Catalyst, Sulphuric Acid Agent, Amino Acid,White Carbon, and etc.
Food Industry: Fatty Milk Powder, Protein, Cocoa Milk Powder, Subsitute Milk Powder,Egg White (Yolk), Food And Plant,Oats,Chicken Juice, Coffee, Instant Dissoluble Tea ,Seasoning Meat,Protein ,Soybean,Peanut Protein, Hydrolysate, Sugar,Corn Syrup,Corn Starch,Glucose, Pectin,Malt Sugar, Sorbic Acid Potassium, and etc.
Pharmaceutical Industry: Chinese Traditional Medicines, Pesticide, Antibiotic, Medical Drinking Agent,and etc.
Plastics and Resin: AB, ABS Emulsion, Uric Acid Resin, Phenolic Aldehyde Resin, Urea-Formaldehyde Resin, Formaldehyde Resin, Polythene, Poly-Chloroprene, And etc.
Detergent: Common Washing Powder,Advanced Washing Powder,Soap Powder, Soda Ash, Emulsifier, Brightening Agent, Orthophosphoric Acid, and etc.
Ceramic: Aluminium Oxide, Ceramic Tile Material, MagnesiumOxide, Talcum, and etc. Other: Calmogastrin, Hime Chloride , Stearic Acid Agent, and etc.
