Product Details:
|
| Name: | Pressure Spray Dryer | Capacity: | 25-500 Kg/h Water Evaporation |
|---|---|---|---|
| Diameter Of Tower Body:: | 1300-3800mm | OEM ODM: | YES |
| Pressure: | 0.6-5Mpa | Material: | SUS304, SUS304L, SUS316, SUS316L |
| High Light: | Viscous Paste Material Spray Dryer,Medicine Extract Spray Dryer Machine,Spray Dryer Machine 50kg/H |
||
Medicine extract viscous paste material drying equipment pressure spray dryer
Pressure Spray Dryer
Features
1. High collecting rate, no stick on the wall.
2. Fast drying, high efficiency, energy saving.
3. Particularly applicable for heat sensitive material
4. Good for raw materials that are large in viscosity, paste material.
5. The nozzle is simple in structure, convenient in maintenance and low cost in operation.
6. The machine heating system is very flexible, we can configure it based on the customer site conditions such as steam, electricity, gas furnace and etc.
Control systems have more choices, such as push button, HMI+PLC and etc.
Technical parameters
| Model | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000-2000 | |
| Water evaporation kg/h | 25 | 50 | 100 | 150 | 200 | 300 | 500 | The index can be affirmed inaccordance with particle conditions. | |
| DiaphragmPump | Power kW | 0.35 | 4 | 7.5 | 11 | 15 | 22 | 30 | |
| Pressure Mpa | lt can be regulated from 0.6-5, usually, it is between 1-3 when in operation | ||||||||
| Heating way | Electricity | Electricity+steam | Electricity+coal(oil) hot air furnace | ||||||
| Diameter of tower mm | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | ||
| Total height of equipment mm | 7800 | 9200 | 11600 | 14000 | 15300 | 17100 | 19000 | ||
Brief Introduction
The material is sprayed into fine mist by nozzle on the top of tower, Follow the heat wind, the material is dried. The machine with high collection rate and no stick on the wall characteristic. Save energy, high efficiency, Particularly suitable for heat sensitive material.it is widely used in food, dyestuff, chemical industry and etc
Working principle

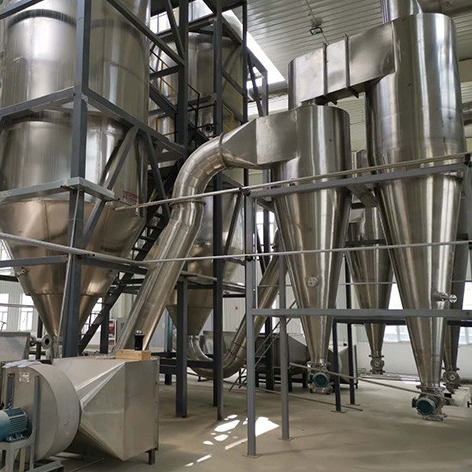

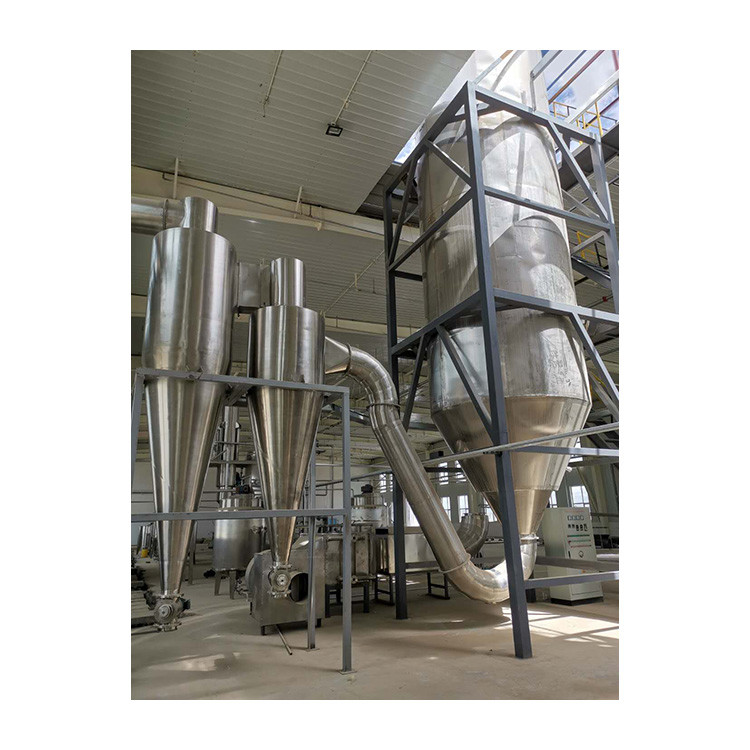

The liquid material is pumped in through diaphragm pump. The liquid material can be atomized into tiny droplets. Then it gathers with hot air falling off. Most parts of powder material will be collected from the outlet of the main tower bottom. For the fine powder, we will still continuously collect by the cyclone separator and cloth bag filter.
Scope of applications
1. Food Industry: Fatty milk power, protein, cocoa milk powder, substitute milk powder, egg white(York), food and plant, oats, chicken juice, coffee, instant dissoluble tea, seasoning meat, protein, soybean, peanut protein, hydrolysate and so forth , sugar, corn starch, corn syrup, glucose, pectin, malt sugar, sorbic acid potassium and etc.
2. Pharmaceutical industry: Traditional Chinese medicine extract, ointment, yeast, vitamin, antibiotic, amylase, lipase and etc.
3. Plastic and resin: AB, ABS emulsion, uric acid resin, phenolic aldehyde resin, urea-formaldehyde resin, formaldehyde resin, polythene, poly-chloroprene and etc.
4. Detergent: common washing powder, advanced washing powder, soap powder, soda ash, emulsifier, brightening agent, orthophosphoric acid and etc.
5. Chemical industry: Sodium fluoride(Potassium), alkaline dyestuff and pigment, dyestuff intermediate, Mn3O4, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and etc.
6. Ceramic industry: Aluminum oxide, ceramic tile material, magnesium oxide, talcum and etc.
7. Other industry: calmogastrin, hime chloride, stearic acid agent and etc.
