| Name: | Paddle Dryer | Keyword: | Hollow Paddle Dryer |
|---|---|---|---|
| Key Selling Points: | Energy Saving | Feature: | Low Energy High Efficiency |
| Highlight: | Paste Materials Paddle Dryer System,Hot Air Paddle Dryer System,Low Environmental Pollution Paddle Dryer System |
||

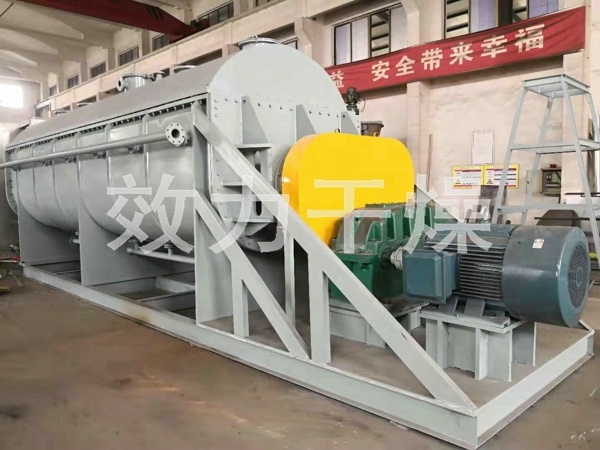

Hot Air Paste Materials Paddle Dryer System Low Environmental Pollution
Product Description:
Our Hot Air Paste Materials Paddle Dryer System is a specialized agitation dryer designed to handle high-moisture paste, slurry, and granular materials while maintaining strict environmental standards
Classified as a hot air type paddle dryer, this system is engineered to provide stable operation with minimal gradients in temperature and humidity, ensuring the highest process stability for your production line
Low Environmental Pollution: The system is designed so that dust entrainment is kept to a minimum, ensuring a clean working environment
Minimal Solvent Evaporation: For contaminated materials, solvent evaporation is kept very small, facilitating easier processing and potential recovery through closed-loop systems
Wedge-Shaped Self-Cleaning Blades: The stirring heat transfer blades feature a self-cleaning function that removes adhering material through a washing effect
High Thermal Efficiency: Densely arranged hollow blades provide a large heat transfer area per unit volume, ensuring all heat is effectively used to heat the material
Sealed Construction: The Ω-shaped shell features sealed end caps and a top cover to prevent material dust leakage
Technical Specifications
| project | KJG68 |
| model | |
| heat transfer area(m2) | 68 |
| Effective volume(m3) | 5.21 |
| Speed range(rmp) | 10-20 |
| power(kw) | 45 |
| Container width A(mm) | 1652 |
| Total width B(mm) | 2134 |
| Container width C(mm) | 5842 |
| Total length D(mm) | 9296 |
| Inlet/outlet distance E(mm) | 5384 |
| Center High F(mm) | 1220 |
| Total height H(mm) | 2362 |
| Inlet N(inch) | 11/2 |
| Outlet O(inch) | 11/2 |
Installation structure diagram
Why This System is Ideal for Paste Materials
Piston Flow Movement: Material moves along the axial direction in a "piston flow," which is critical for maintaining uniform quality in thick pastes
Compression-Expansion Stirring: The special stirring effect of the wedge-shaped blades ensures that even viscous particles stay in full contact with the heat transfer surface
Wide Temperature Range: The system supports heat transfer medium temperatures ranging from -40℃ to 320℃
Low Operating Costs: Its robust structure minimizes wear and tear, resulting in very low maintenance and operational expenses
Application Cases
| name | Jiangyin Farsun |
| Processing Equipment: | Paddle Dryer |
| Initial Moisture: | 70% |
| Final Moisture: | 25% |
| Processing Capacity: | 200 kg/h ~ 300 kg/h |
| Processing Equipment: | |
| Before processing | After processing |
|
|
FAQ
Q: How does the system prevent pollution during paste drying?
A: By minimizing air usage and utilizing a sealed Ω-shaped shell, the dryer prevents dust leakage and limits solvent evaporation to a manageable level
Q: Can this system handle highly heat-sensitive pastes?
A: Yes. The uniformity of temperature and humidity within the axial range allows for safe processing of heat-sensitive materials
Q: What heat media can be used in the hot air type system?
A: Common media include steam, thermal oil, hot water, or cooling water flowing through the rotary joints and shell jacket
