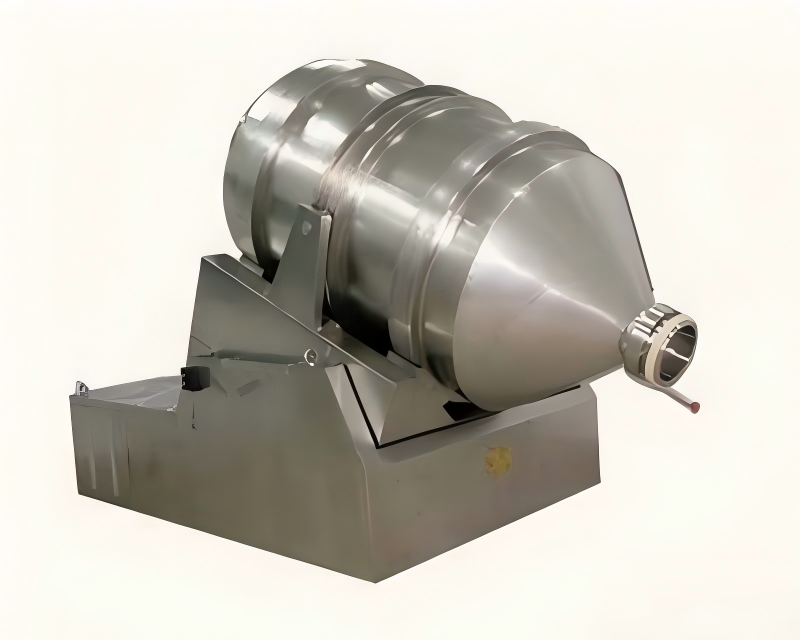

5000 Litres Capacity GMP Compliant 2D Mixer For Mixing Various Solid Materials

The 5000 Litres GMP Compliant 2D Mixer is a high capacity powder mixing machine engineered for homogeneous blending of various solid materials in the pharmaceutical, chemical, food, and feed industries. With a large 5000 L barrel volume, a 3000 L loading capacity, and a powerful 9.5 kW drive motor, this machine delivers consistent, uniform mixing for large scale production batches, making it a dependable choice for manufacturers who require reproducible product quality and hygienic processing performance.

The two dimensional motion drives the barrel through a combined swing and rotation movement, creating a complex three dimensional material flow inside the chamber. Unlike conventional single axis mixers, this dual action eliminates dead zones, shortens mixing time, and produces a highly uniform blend. The gentle movement also minimizes heat build up and mechanical stress, protecting fragile and heat sensitive powders, granules, and other solid materials during processing, which is essential for preserving ingredient integrity and batch consistency.

This GMP compliant 2D mixer features a sealed barrel that prevents dust leakage and cross contamination between batches, while the hygienic structure allows quick loading, discharging, and thorough cleaning. With a robust 9.5 kW drive motor, a 5000 L barrel, and a compact footprint, the machine delivers dependable, energy efficient operation with minimal maintenance requirements, making it a cost effective solution for production lines that require both capacity and precision.

• Two Dimensional Motion: combined swing and rotation create an efficient three dimensional flow path for fast, uniform blending of powders and granules.
• 5000 L Barrel Capacity: supports a loading volume of up to 3000 L and a maximum loading weight of 1500 kg per batch.
• 9.5 kW Drive Motor: powerful and dependable motor delivers stable performance for continuous large scale mixing.
• GMP Compliant Design: hygienic structure supports quick cleaning and reduces the risk of cross contamination between batches.
• Sealed Dust Free Design: enclosed barrel prevents dust leakage and protects the working environment.
• Simple Operation and Maintenance: robust compact design allows easy loading, discharging, and cleaning to minimize downtime.

The 5000 Litres GMP Compliant 2D Mixer is widely used for mixing various solid materials across the pharmaceutical, chemical, food, and feed industries, including active pharmaceutical ingredients, excipients, pigments, fertilizers, nutritional powders, food additives, and compound feed ingredients. It delivers the uniform mixing required for consistent product quality and batch to batch reproducibility. With its large 5000 L capacity and 9.5 kW drive, the machine is particularly well suited to manufacturing operations that need high throughput without sacrificing blend uniformity. The machine can also be customized to handle different materials and production capacities according to specific process requirements.

Each 5000 Litres GMP Compliant 2D Mixer is inspected and tested before shipment, then packed in a sturdy export grade wooden case with protective wrapping to ensure safe long distance delivery. We provide full technical documentation, installation guidance, and after sales support. For inquiries regarding specifications, customization, pricing, or delivery time, please contact our sales team for a tailored quotation.
