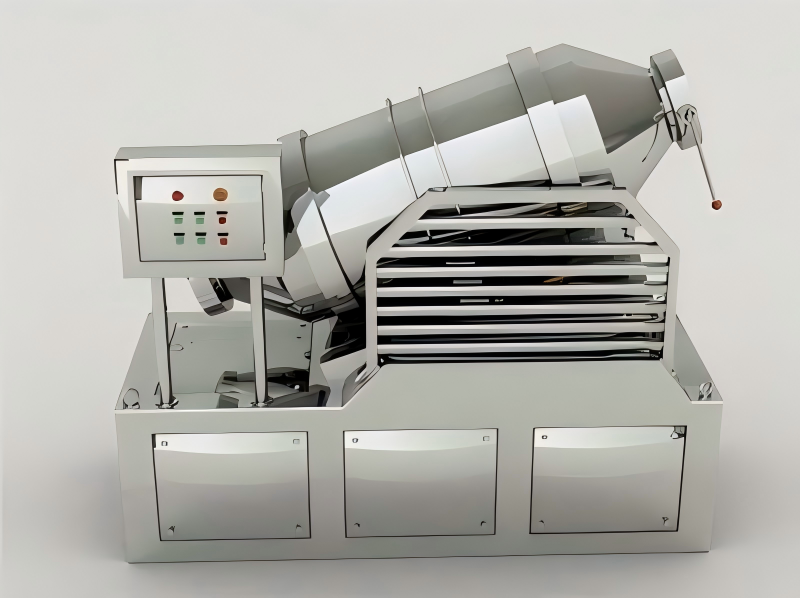

10000 Litres Industrial Powder Mixer Pharmaceutical High Efficiency 2D Mixer

The 10000 Litres Industrial Powder Mixer is a high efficiency, pharmaceutical grade powder mixing machine engineered for homogeneous blending of dry powders and granules. With an extra large 10000 L barrel volume, a 6000 L loading capacity, and a powerful 18.5 kW drive motor, this machine delivers consistent, uniform mixing for very large scale production batches, making it a dependable choice for pharmaceutical and related manufacturers who require maximum throughput, reproducible product quality, and strict hygienic performance.

The two dimensional motion drives the barrel through a combined swing and rotation movement, creating a complex three dimensional material flow inside the chamber. Unlike conventional single axis mixers, this dual action eliminates dead zones, shortens mixing time, and produces a highly uniform blend. The gentle movement also minimizes heat build up and mechanical stress, protecting fragile and heat sensitive powders, granules, and other solid materials during processing, which is essential for preserving ingredient integrity and batch consistency.

This pharmaceutical grade industrial powder mixer features a sealed barrel that prevents dust leakage and cross contamination between batches, while the hygienic structure allows quick loading, discharging, and thorough cleaning. With a robust 18.5 kW drive motor, a 10000 L barrel, and a compact footprint, the machine delivers dependable, energy efficient operation with minimal maintenance requirements, making it a cost effective solution for high volume production lines that require both capacity and precision.

• High Efficiency Mixing: two dimensional motion shortens mixing time and eliminates dead zones for fast, uniform blending.
• 10000 L Large Volume Barrel: supports a loading volume of up to 6000 L and a maximum loading weight of 3000 kg per batch.
• 18.5 kW Drive Motor: powerful and dependable motor delivers stable performance for continuous very large scale mixing.
• Pharmaceutical Grade Design: hygienic structure supports quick cleaning and reduces the risk of cross contamination between batches.
• Two Dimensional Motion: combined swing and rotation create an efficient three dimensional flow path for uniform blending.
• Sealed Dust Free Design: enclosed barrel prevents dust leakage and protects the working environment.

The 10000 Litres Industrial Powder Mixer is widely used for large volume blending across the pharmaceutical, chemical, food, and feed industries, including active pharmaceutical ingredients, excipients, pigments, fertilizers, nutritional powders, food additives, and compound feed ingredients. Its pharmaceutical grade design and hygienic structure make it particularly well suited to GMP regulated pharmaceutical production lines that require strict cleanliness control and batch to batch reproducibility. With its extra large 10000 L capacity and 18.5 kW drive, the machine is well suited to high volume manufacturing operations that need maximum throughput without sacrificing blend uniformity. The machine can also be customized to handle different materials and production capacities according to specific process requirements.

Each 10000 Litres Industrial Powder Mixer is inspected and tested before shipment, then packed in a sturdy export grade wooden case with protective wrapping to ensure safe long distance delivery. We provide full technical documentation, installation guidance, and after sales support. For inquiries regarding specifications, customization, pricing, or delivery time, please contact our sales team for a tailored quotation.
