LDH-0.2 High Efficiency Ploughshare Mixer 8.4kW Industrial Powder Mixer 120-180kg Per Batch

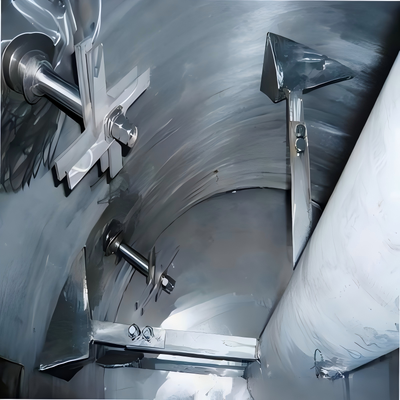

The LDH-0.2 ploughshare mixer is a mid-capacity powder blending machine from the LDH series, built for production lines that need efficient mixing and uniform quality at volumes larger than pilot scale. Its mixing chamber is a horizontal cylinder in which high-speed coulter (ploughshare) blades rotate close to the inner wall, lifting material into a continuous fluidized state. The resulting three-dimensional motion combines convective turnover with intense shear, so powders, granules and trace additives are dispersed rapidly and evenly. Rated for 120-180 kg per batch with an installed power of 8.4 kW and a total equipment weight of 950 kg, the LDH-0.2 fills the gap between small batch mixers and heavy production machines, making it a practical choice for medium-size plants, contract blending workshops and manufacturers scaling up from small-batch production.

• LDH Series Ploughshare Mixing Technology: High-speed coulter blades generate a fluidized bed with strong convective and shear action, giving short cycles and complete dispersion of dry solids.
• Larger Batch Capacity: The 120-180 kg working range supports medium-volume production while keeping the flexibility to run smaller trial batches.
• Uniform Quality Batch After Batch: Stable particle movement pattern delivers repeatable composition from the first charge to the last, batch after batch.
• Moderate Power Consumption: The 8.4 kW installed power balances throughput against energy cost, keeping per-kilogram operating expense under control.
• Robust Construction: At 950 kg the machine offers a rigid, heavy-duty frame that dampens vibration during continuous operation.
• Efficient Discharge: The bottom outlet allows full-volume discharge, minimizing material retention and speeding up the cycle between batches.
• Easy Maintenance Access: Inspection openings and accessible blade assembly simplify routine checks and wear-part replacement.

Operating the LDH-0.2 follows the same straightforward routine proven across LDH series installations. Load the dry components into the chamber, start the blades, and let the fluidized motion blend the charge; for most free-flowing powder recipes the cycle is short, and our engineers will recommend a mixing time based on your material density and particle size. Keep each charge within the rated 120-180 kg window, because underloading reduces mixing efficiency while overloading restricts fluidization and extends the cycle. Position the machine on a level, load-bearing floor with clearance below the discharge outlet, and have the 8.4 kW supply connected by a qualified electrician following the wiring diagram supplied with the unit. Between batches, wipe down the chamber interior and discharge area to prevent carry-over; for hygienic applications the accessible design supports more thorough cleaning. These practices come from real operating experience with similar machines and help plants reach consistent quality from the first week of service.

The LDH-0.2 ploughshare mixer serves dry blending duties across chemical, pharmaceutical, food, feed and building material industries. Typical tasks include premixing active ingredients with excipients, homogenizing pigment and additive masterbatches, blending feed premixes and mineral supplements, mixing fertilizer and pesticide granules, and preparing detergent or seasoning powder formulations. Its medium batch size makes it well suited to plants that produce multiple formulations during the day, because the machine switches between recipes quickly and leaves minimal residue between runs. Materials with different particle size and bulk density are handled while maintaining uniform quality throughout the batch.

Every LDH-0.2 ploughshare mixer is factory test-run before shipment to verify mixing performance, power consumption and safety interlocks, and the results are recorded in the quality inspection certificate delivered with the machine. The unit is packed in an export-grade wooden case with protective wrapping for long-distance sea or air freight. Standard documentation includes the operation manual, wiring diagram and inspection certificate. Our after-sales team provides online technical guidance for installation, commissioning and troubleshooting, and spare wear parts are kept in stock for quick replacement. We provide honest, verifiable information: if your material needs special handling or a different configuration, we will tell you before you order rather than after.

To receive a recommendation matched to your material properties and required batch size, please contact us with your powder type, bulk density and target output. We will respond with the suitable LDH series configuration, cycle estimate and delivery details.
