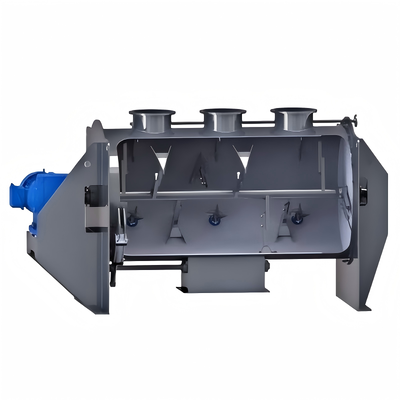

LDH-0.5 Fast Plough Mixer 9.9kW Industrial Powder Mixer 200-300kg Per Batch

The LDH-0.5 plough mixer is a production-scale powder blending machine from the LDH series, designed for plants that need efficient mixing and uniform quality across larger batches. Inside a horizontal cylindrical chamber, high-speed coulter (ploughshare) blades rotate close to the inner wall and lift the material into a continuous fluidized state. This three-dimensional motion combines convective turnover with intense shear, dispersing powders, granules and trace additives rapidly and evenly throughout the charge. Rated for 200-300 kg per batch with an installed power of 9.9 kW and a total equipment weight of 1100 kg, the LDH-0.5 is a dependable workhorse for medium and large production lines in chemical, pharmaceutical, food, feed and building material plants.

• LDH Series Plough Mixing Technology: High-speed coulter blades create a fluidized bed with strong convective and shear action, giving short mixing cycles and complete dispersion of dry solids.
• Production-Scale Batch Capacity: The 200-300 kg working range supports medium and large production runs while retaining flexibility for smaller trial batches.
• Uniform Quality Batch After Batch: Repeatable three-dimensional particle movement keeps composition consistent from the first charge to the last.
• Balanced Power and Output: The 9.9 kW installed power delivers high throughput while keeping per-kilogram energy cost competitive.
• Heavy-Duty Construction: At 1100 kg the rigid frame and reinforced chamber provide stable, low-vibration operation under continuous duty.
• Full-Volume Discharge: The bottom outlet empties the chamber completely, reducing material retention and shortening cycle time between batches.
• Service-Friendly Design: Inspection openings and an accessible blade assembly simplify routine checks and wear-part replacement.

Running the LDH-0.5 plough mixer follows the same dependable routine proven across LDH series installations. Load the dry components into the chamber, start the blades, and let the fluidized motion blend the charge; for most free-flowing powder recipes the cycle is short, and our engineers will recommend a mixing time based on your material density and particle size. Keep each charge within the rated 200-300 kg window, because underloading reduces mixing efficiency while overloading restricts fluidization and extends the cycle. Set the machine on a level, load-bearing floor with clearance below the discharge outlet, and have the 9.9 kW supply connected by a qualified electrician following the wiring diagram supplied with the unit. Between batches, wipe down the chamber interior and discharge area to prevent carry-over; for hygienic applications the accessible design supports more thorough cleaning. These habits come from real operating experience with similar machines and help plants achieve consistent quality from the first week of service.

The LDH-0.5 plough mixer handles dry blending duties across chemical, pharmaceutical, food, feed and building material industries. Typical tasks include premixing active ingredients with excipients, homogenizing pigment and additive masterbatches, blending feed premixes and mineral supplements, mixing fertilizer and pesticide granules, and preparing detergent or seasoning powder formulations. Its larger batch size suits plants that run continuous daily production of a limited number of formulations, while the low-residue design still allows quick changeover when the recipe changes. Materials with different particle size and bulk density are processed while maintaining uniform quality throughout the batch.

Every LDH-0.5 plough mixer is factory test-run before shipment to verify mixing performance, power consumption and safety interlocks, and the results are recorded in the quality inspection certificate delivered with the machine. The unit is packed in an export-grade wooden case with protective wrapping for long-distance sea or air freight. Standard documentation includes the operation manual, wiring diagram and inspection certificate. Our after-sales team provides online technical guidance for installation, commissioning and troubleshooting, and spare wear parts are kept in stock for quick replacement. We provide honest, verifiable information: if your material needs special handling or a different configuration, we will tell you before you order rather than after.

To receive a recommendation matched to your material properties and required batch size, please contact us with your powder type, bulk density and target output. We will respond with the suitable LDH series configuration, cycle estimate and delivery details.
