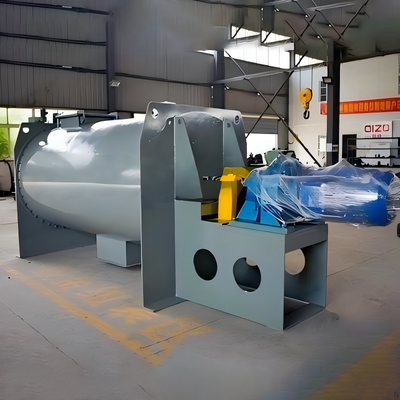

LDH-1 Powder Plow Mixer 23kW Industrial Powder Mixing Machine 400-600kg Per Batch

The LDH-1 plow mixer is a high-capacity powder blending machine from the LDH series, built for production plants that need efficient mixing and uniform quality in large batches. Its horizontal cylindrical chamber houses high-speed coulter (ploughshare) blades that rotate close to the inner wall, lifting the material into a continuous fluidized state. The resulting three-dimensional motion combines convective turnover with intense shear, dispersing powders, granules and trace additives rapidly and evenly. Rated for 400-600 kg per batch with an installed power of 23 kW and a total equipment weight of 1800 kg, the LDH-1 is a heavy-duty workhorse for large-scale dry blending in chemical, pharmaceutical, food, feed and building material industries.

• LDH Series Plow Mixing Technology: High-speed coulter blades create a fluidized bed with strong convective and shear action, delivering short mixing cycles and complete dispersion of dry solids.
• Large Batch Capacity: The 400-600 kg working range supports high-volume production runs, reducing the number of cycles needed per shift.
• Uniform Quality Batch After Batch: Repeatable three-dimensional particle movement keeps composition consistent from the first charge to the last.
• High Power for Heavy Loads: The 23 kW drive provides the torque needed to fluidize dense and cohesive powders efficiently.
• Heavy-Duty Construction: At 1800 kg the reinforced frame and chamber provide stable, low-vibration operation under continuous industrial duty.
• Full-Volume Discharge: The bottom outlet empties the chamber completely, reducing retention and shortening the cycle between batches.
• Service-Friendly Design: Inspection openings and an accessible blade assembly simplify routine checks and wear-part replacement.

Operating the LDH-1 plow mixer follows the same dependable routine proven across LDH series installations. Load the dry components into the chamber, start the blades, and let the fluidized motion blend the charge; for most free-flowing powder recipes the cycle is short, and our engineers will recommend a mixing time based on your material density and particle size. Keep each charge within the rated 400-600 kg window, because underloading reduces mixing efficiency while overloading restricts fluidization and extends the cycle. Position the machine on a level, load-bearing floor with clearance below the discharge outlet, and have the 23 kW supply connected by a qualified electrician following the wiring diagram supplied with the unit. Between batches, wipe down the chamber interior and discharge area to prevent carry-over; for hygienic applications the accessible design supports more thorough cleaning. These practices come from real operating experience with similar machines and help plants reach consistent quality from the first week of service.

The LDH-1 plow mixer handles dry blending duties across chemical, pharmaceutical, food, feed and building material industries. Typical tasks include premixing active ingredients with excipients, homogenizing pigment and additive masterbatches, blending feed premixes and mineral supplements, mixing fertilizer and pesticide granules, and preparing detergent or seasoning powder formulations. Its large batch size suits plants running continuous daily production of a limited number of formulations, while the low-residue design still allows quick changeover when recipes change. Materials with different particle size and bulk density are processed while maintaining uniform quality throughout the batch.

Every LDH-1 plow mixer is factory test-run before shipment to verify mixing performance, power consumption and safety interlocks, and the results are recorded in the quality inspection certificate delivered with the machine. The unit is packed in an export-grade wooden case with protective wrapping for long-distance sea or air freight. Standard documentation includes the operation manual, wiring diagram and inspection certificate. Our after-sales team provides online technical guidance for installation, commissioning and troubleshooting, and spare wear parts are kept in stock for quick replacement. We provide honest, verifiable information: if your material needs special handling or a different configuration, we will tell you before you order rather than after.

To receive a recommendation matched to your material properties and required batch size, please contact us with your powder type, bulk density and target output. We will respond with the suitable LDH series configuration, cycle estimate and delivery details.
