Electric Meat Jerky Biltong Hot Air Oven Dryer SUS304 Food Herb Fruit Dehydrator

Electric Meat Jerky Biltong Tray Dryer Food Herb Drying Machine Fruit Dehydrator

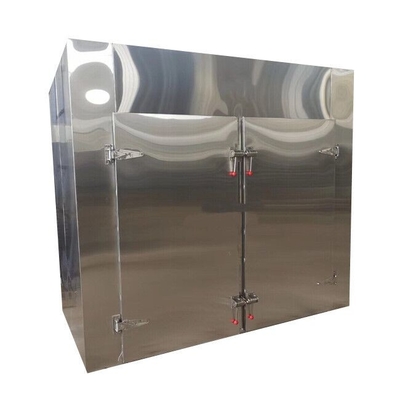

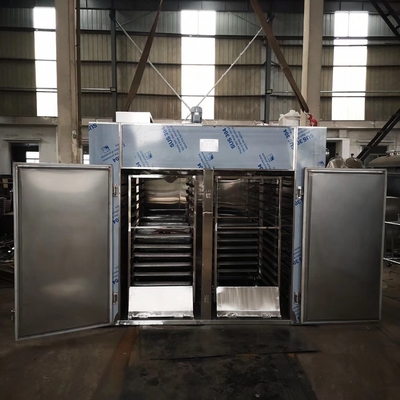

Hot Air Oven Dryer

Hot air circulating drying oven applies a low-noise and high temperature-proof axial flow blower and an automatic temperature control system which is fully sealed, making that the heat efficiency of the drying oven increases from 3-7% of traditional oven to 35-45% of the present one, the highest heat efficiency can reach 50%. WKS series special drying oven adopts the axial flow fan, with automatic constant temperature control system. Its thermal efficiency is more than 95%, which uses electricity as heating source and adopts convective heat transfer method to heat the air by axial flow fan and heat exchanger . Fresh air from the air inlet supplement, waste damp is out from the dehumidification system. Constantly add fresh air and discharge damp to keep the correct relative humidity in the oven. The biggest characteristic of this series of drying oven is that most hot air is cycling in the cabinet, the entire cycle is closed, so as to enhance the heat transfer, saving the energy.

Main features

1. Most of the hot air inside the loop, high thermal efficiency, energy conservation

2. The use of forced ventilation box with adjustable air divider plate, uniform drying, the heat source can be steam, oil, electricity, hot water, far infrared and so on

3. Small machine noise, running balance, the temperature automatically controlled, easy installation and maintenance

4. Applicable to a wide range, can be used for drying various materials and is a versatile drying equipment

Technical parameters

Application

Widely used for heating, solidification, and dehydration of pharmacy, chemical, food, light industry, heavy industry materials and products, such as raw material medicine, medicine, Chinese Herbal Medicine, powders, granules, pill bottles, pigments, dyes, dehydrated vegetables, dried fruit, sausages, plastic resin, electric elements, drying varnish and so on.

Structure

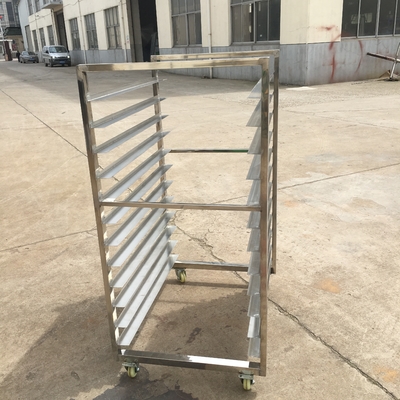

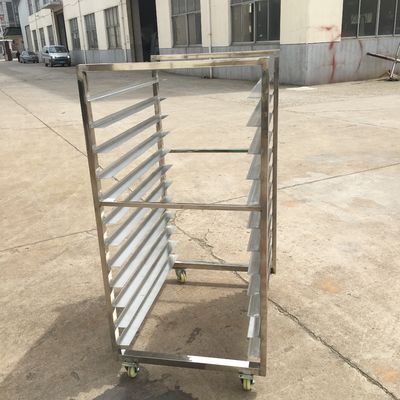

This machine is mainly composed of box circulation, fan, dehumidification fan, air distribution board, drying car, intelligent automatic humidity control of drying pan, and automatic dehumidification at regular intervals. The axial flow fan circulates the hot air in the box, and the heat source is heated by electricity and distributed by the air distribution board into the drying box through the air duct to heat the material. The wet fan (the dehumidification time is appropriately set by the user according to the material) is discharged out of the box, so that the material can be dried.
