Product Details:
|
| Name: | Horizontal Ribbon Mixer | Voltage: | Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V |
|---|---|---|---|
| Warranty: | 1 Year | Mixer Type: | Ribbon,double Ribbon Blender |
| Application: | Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine | Product Type: | Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic |
| High Light: | Double Paddle Horizontal Ribbon Mixer,42rpm Horizontal Ribbon Mixer,Medicine Capsule Chemical Blender Machine |
||
Double Paddle Horizontal Ribbon Type Mixer Blender Mixing Machine for Chemicals Medicine Capsule

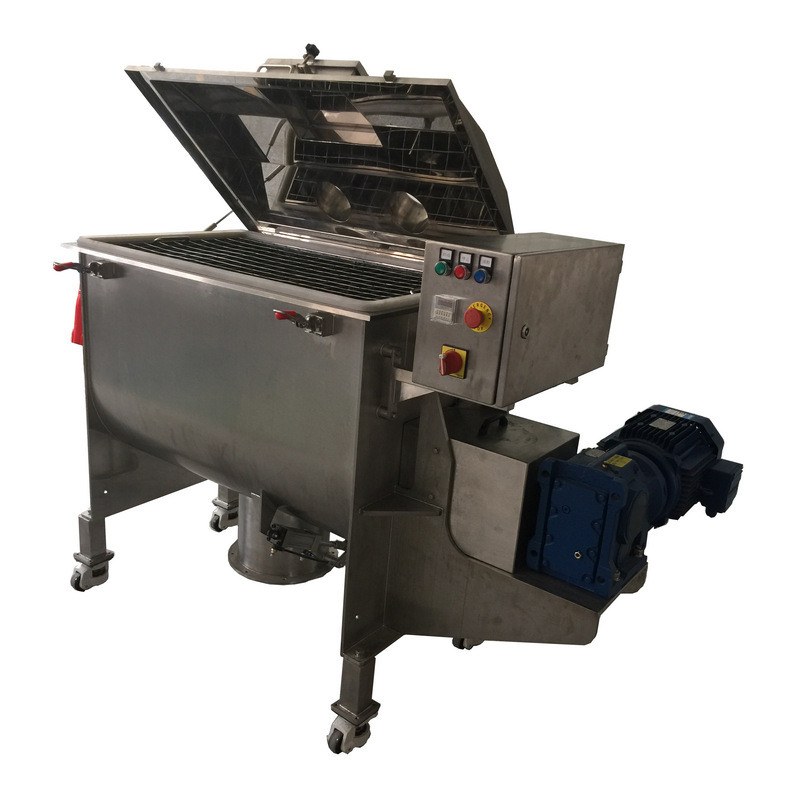

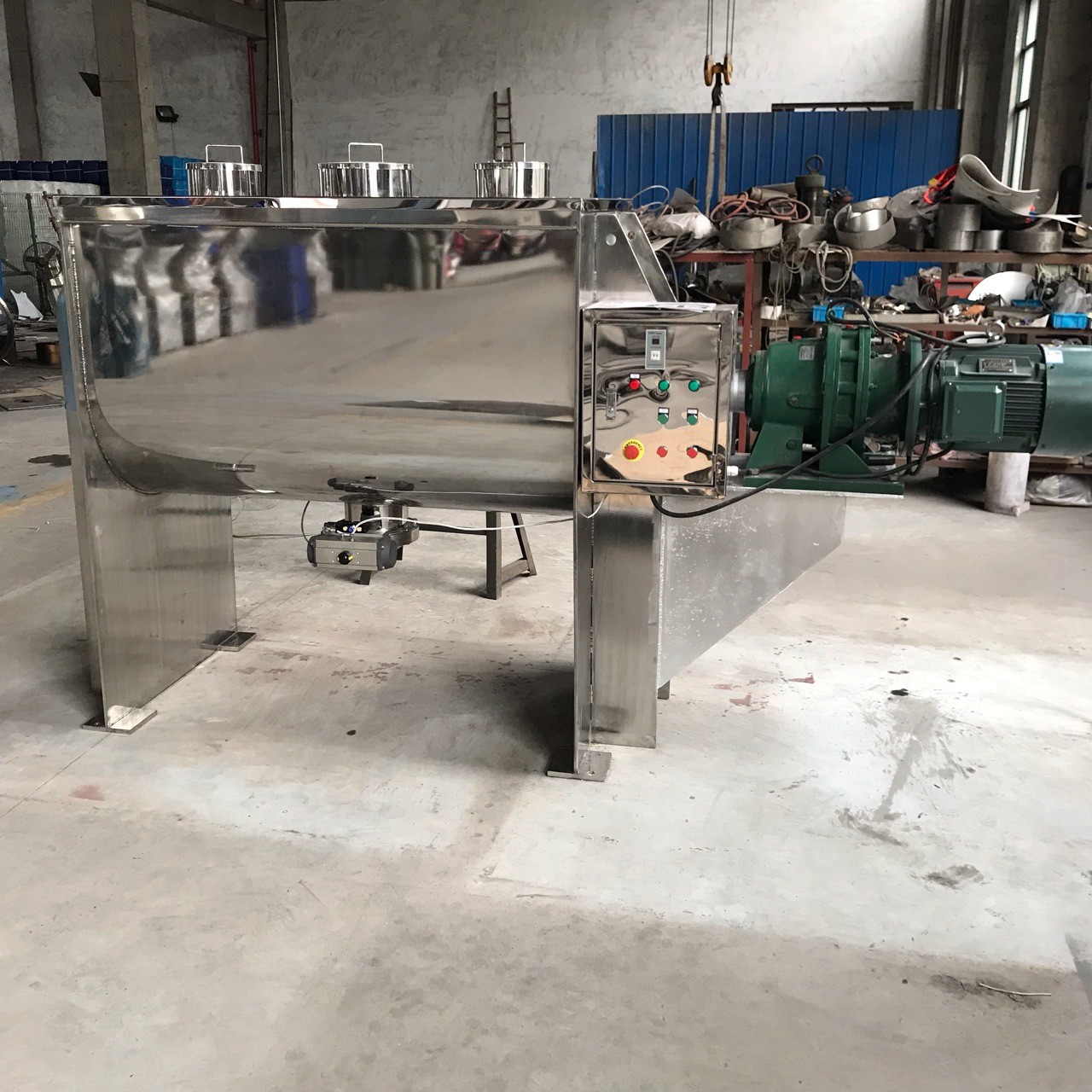

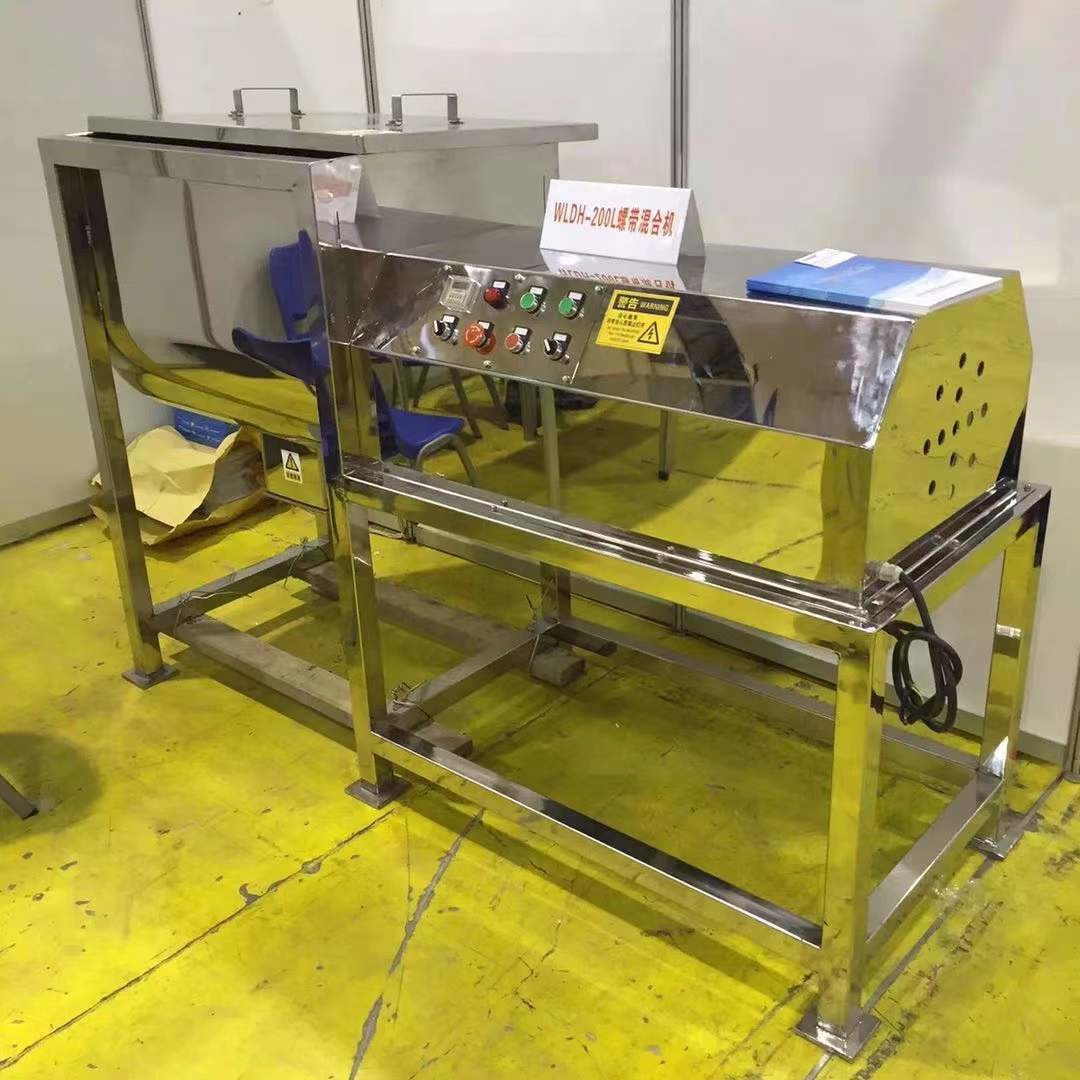

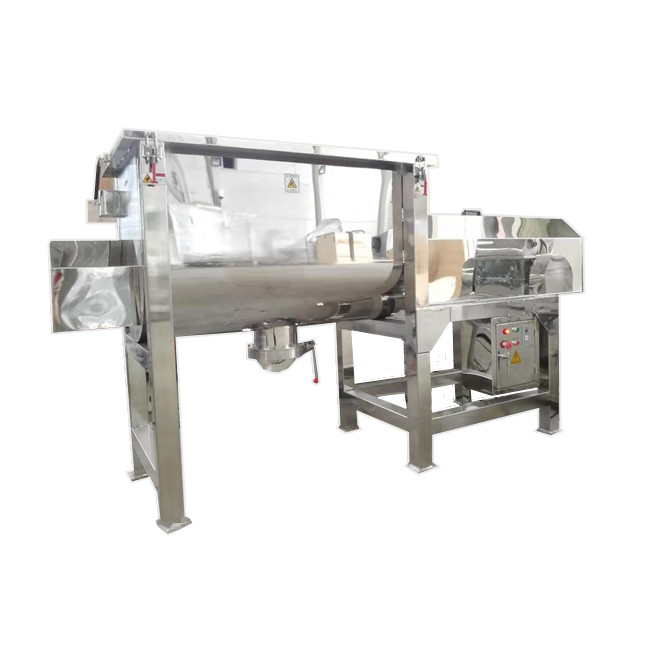

Horizontal Ribbon Mixer
Description
The machine is composed of container, screw paddles and transitional parts; the screw paddle are generally made into 2 layer or 3 layers, the outer screw converge is the material to the centre front two sides, and the inner layer of screw conveys the material to the two sides from the centre, so as to form convention mixing. The cubage can be made into rotundity, so the jacket can be played in reaction and drying.
Applications
Widely used in chemical industry, medicine, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder,health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials,rare earth, plastic glass, new materials, nuclear materials and other industries.
Technical Parameters
| Model | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 |
| Capacity (kg/batch) | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
| Volume (L) |
500 | 1000 | 2000 | 3000 | 4000 | 6000 |
| Rotating (rpm) |
≤42 | ≤42 | ≤42 | ≤42 | ≤42 | ≤42 |
| Power (kW) |
5.5 | 11 | 18.5 | 22 | 30 | 37 |
| Dimension (cm) |
230*80*130 | 270*100*150 | 340*120*175 | 350*140*205 | 420*145*210 | 480*165*235 |
| Weight (kg) |
1000 | 1500 | 2300 | 3200 | 4100 | 5200 |
Features
1) Horizontal tank body, need small space but more capacity.
2) Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3) Gear box drive the auger shaft , low noise and low malfunction, long using life.
4) U-Shape tank bottom, better for material discharge and cleaning.
5) Pneumatic cylinder to control the discharge exit.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
6) Heating,cooling function can be realized.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
7) Customized ribbon blender available. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating.
Specifications Configuration
1) Major sections: barrel, ribbon agitators, feeding parts, discharging part and driven unit
2) Sizes: available from 500L to 6000L.Ribbon auger mixer detergent powder horizontal ribbon mixer
3) Material: Stainless Steel304, 316.
4) Discharge: Flap valve, butterfly valve, slide gate valve, ball valve, manually or pneumatically.
5) Speed:Constant speed rotation,also controls such as variable frequency drives, motor starters and operator stations are available.
6)Temperature: mixer can be equipped with heating or cooling jacket if temperature control is required,
7)Spray :nozzles for liquid introduction.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
8)Open cover: pneumatic, manual.
Pre-service
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2. Make plans for choice according to the needs and special requirements of users in different sectors;
After-sale service
1. Assist clients to prepare for the first construction scheme;
2. Install and debug the equipment;
3. Train the first-line operators;
4. Examine the equipment;
5. Take initiative to eliminate the troubles rapidly;
6. Provide technical support;
7. Establish long-term and fri
