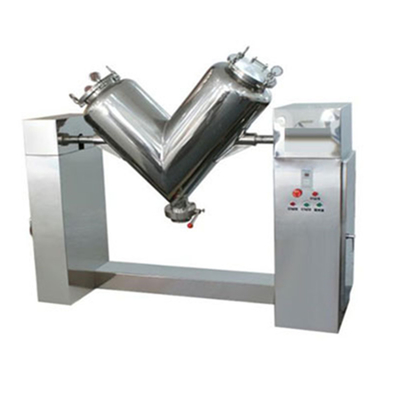

1.5m3 Chemical Vitamin V Shape Powder Mixer 4-5.5KW Medicine Mixing Machine
Product Details
1.5m3 Chemical v shape powder mixer
,Vitamin V Shape Powder Mixer 4KW
,5.5KW Medicine Mixing Machine
Chemical Medicine Vitamin Powder V Shape Powder Mixing Machine
V Type Powder Mixer
Product Description
V series mixer is a highly asymmetric mixer, mixing it for granular materials in powder chemical, food, medicine, feed, ceramics, metallurgy and other industries or easily broken, easy to wear, or fine powder, block, containing certain moisture material mixed with. The machine has the advantages of reasonable structure, simple operation, closed operation, convenient import and export. It is made of stainless steel and is easy to clean. It is one of the basic equipments of enterprises.
Technical parameter
| TYPE | FULL VOL. (m³) |
LOADING RATIO |
L (mm) |
W (mm) |
H (mm) |
DISCHARGE DIAMETER (mm) |
ROTATING HEIGHT (mm) |
ROTATING SPEED (rpm) |
ELECTRIC POWER (kW) |
WEIGHT (kg) |
| WKS-V-0.1 | 0.1 | 0.4~0.8 | 1650 | 500 | 1550 | φ80 | 1600 | 12 | 0.75~1.1 | 180 |
| WKS-V-0.3 | 0.3 | 0.4~0.8 | 1900 | 600 | 1750 | φ100 | 1900 | 12 | 1.1~1.5 | 350 |
| WKS-V-0.5 | 0.5 | 0.4~0.8 | 2300 | 700 | 2100 | φ150 | 2250 | 9 | 1.5~2.2 | 550 |
| WKS-V-1 | 1 | 0.4~0.8 | 2700 | 1000 | 2500 | φ150 | 2700 | 9 | 2.2~4 | 1000 |
| WKS-V-1.5 | 1.5 | 0.4~0.8 | 3000 | 1000 | 2600 | φ200 | 2900 | 8 | 4~5.5 | 1100 |
| WKS-V-2 | 2 | 0.4~0.8 | 3200 | 1200 | 3100 | φ200 | 3250 | 8 | 4~7.5 | 1500 |
| WKS-V-2.5 | 2.5 | 0.4~0.8 | 3950 | 1500 | 3550 | φ200 | 3800 | 7 | 5.5~11 | 1700 |
| WKS-V-3 | 3 | 0.4~0.8 | 4100 | 1500 | 3600 | φ200 | 3850 | 6 | 7.5~11 | 1800 |
Working principle
V-shaped cylinder which is driven by the drive shaft rotates around the center of the rotary axis, during which material starts gravity diffusion movement along with the V-shaped inclined cylinder, when the connection of the V-shaped cylinder is rotated in the upper position, the materials collected at the bottom are diverted into the two inclined cylinder bodies, so that the material of each inclined cylinder body can also enter the other inclined body through the joint ports tube inside. With the continuous rotation of the cylinder, the continuous changes of the cylinder body, V-cylinder material is repeatedly dislocation, translation, diffusion, so as to achieve uniform mixing.
Features
1.This machine adopts manual feed and closed valve disc discharge, which can avoid dust spill.
2.With unique mixing barrel structure, high efficiency blending, no dead ends.
3.Using stainless steel material can prevent the mixing materials from being polluted.The inside and outside of machine are made of stainless steel.
4.Mixing evenly and it is applicable to a wide range of fields. It also can be equipped with the compulsory mixer according to the users demand.
5.It is suitable for smaller powder, blocks
Use a high quality flange;
Strong and durable intensifier bar;
Inching function available;
Intensifer bar optional
Our services
One-year warranty, 24-hour hot-line service, complete components & parts are ready for supply anytime.
The company has a full-time after-sales service team, they are from the manufacturing staff who understands the operation of the equipment very well, they will solve all problems encountered by customers, and provide you with timely maintenance and use recommendations.

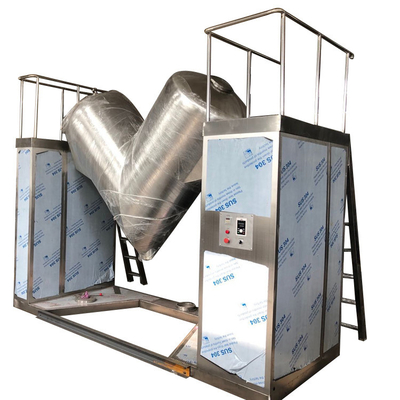

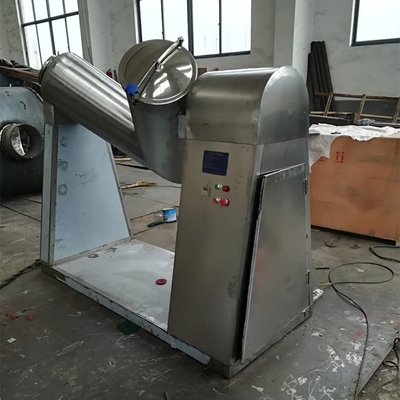

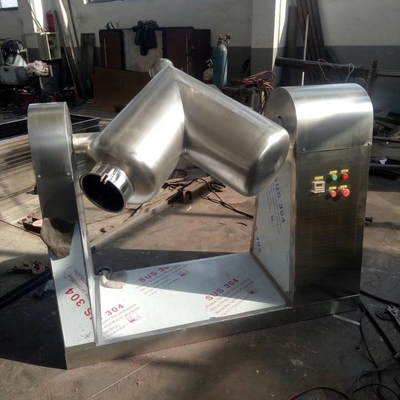

Pictures
Company information
Henan Workers Machinery & Equipment Co., Ltd, established for over ten years, gained extensive experience in design and production of various drying machines applied in different industries and food processing equipment (both complete processing lines and individual machines) and packaging machines tailored to your precise needs.
With worldwide sales on five continents, WKS brand is among the world’s leading providers of drying machines and food processing equipment technology.
With her innovative engineers, well trained technicians, wide knowledge and long- standing experience, WKS serves its customers in each phase of the production.
WKS not only designs and manufactures each machine, but also assembles, operates, trains and carries technical responsibilities of every delivered equipment.
To ensure hygiene, durability and ease of maintenance, WKS uses the most advanced technology and materials. Whether you require a simple conveyor or high-tech automated equipment, WKS can supply the most suitable machine for your application. Instant supply of in-stock spare parts ensures your machinery serviced in the shortest time possible.
-
