Product Details:
|
| Name: | V Type Power Mixer | Material: | SUS304 |
|---|---|---|---|
| Application: | Powder | Certification: | CE Certificate |
| Function: | Mixer Blender | Product Type: | Powder And Granules |
| High Light: | OEM Commercial V Type Blender,ODM Commercial V Type Blender,Pharmaceutical Powder Mixer For Shrimp |
||
Commerical V Type Blender Pharmaceutical Powder Mixer Specialized for Shrimp

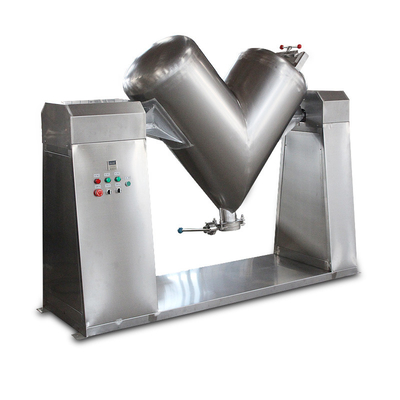

V Type Powder Mixer
Introduction
The machine is used for mixing of dry granulate material in pharmaceutical, food-stuff, chemical and other industries.
Features
1. This machine adopts manual feed and closed valve disc discharge, which can avoid dust spill.
2. With unique mixing barrel structure, high efficiency blending, no dead ends.
3. Using stainless steel material can prevent the mixing materials from being polluted.The inside and outside of machine are made of stainless steel.
4. Mixing evenly and it is applicable to a wide range of fields. It also can be equipped with the compulsory mixer according to the users demand.
5. It is suitable for smaller powder, blocks
Application
The machine used for pharmaceuticals, chemicals, food, metallurgical industry, dry granular materials mixed.
Our services
One-year warranty, 24-hour hot-line service, complete components & parts are ready for supply anytime.
The company has a full-time after-sales service team, they are from the manufacturing staff who understands the operation of the equipment very well, they will solve all problems encountered by customers, and provide you with timely maintenance and use recommendations.
Technical parameter
| TYPE | FULL VOL. (m³) |
LOADING RATIO |
L (mm) |
W (mm) |
H (mm) |
DISCHARGE DIAMETER (mm) |
ROTATING HEIGHT (mm) |
ROTATING SPEED (rpm) |
ELECTRIC POWER (kW) |
WEIGHT (kg) |
| WKS-V-0.1 | 0.1 | 0.4~0.8 | 1650 | 500 | 1550 | φ80 | 1600 | 12 | 0.75~1.1 | 180 |
| WKS-V-0.3 | 0.3 | 0.4~0.8 | 1900 | 600 | 1750 | φ100 | 1900 | 12 | 1.1~1.5 | 350 |
| WKS-V-0.5 | 0.5 | 0.4~0.8 | 2300 | 700 | 2100 | φ150 | 2250 | 9 | 1.5~2.2 | 550 |
| WKS-V-1 | 1 | 0.4~0.8 | 2700 | 1000 | 2500 | φ150 | 2700 | 9 | 2.2~4 | 1000 |
| WKS-V-1.5 | 1.5 | 0.4~0.8 | 3000 | 1000 | 2600 | φ200 | 2900 | 8 | 4~5.5 | 1100 |
| WKS-V-2 | 2 | 0.4~0.8 | 3200 | 1200 | 3100 | φ200 | 3250 | 8 | 4~7.5 | 1500 |
| WKS-V-2.5 | 2.5 | 0.4~0.8 | 3950 | 1500 | 3550 | φ200 | 3800 | 7 | 5.5~11 | 1700 |
| WKS-V-3 | 3 | 0.4~0.8 | 4100 | 1500 | 3600 | φ200 | 3850 | 6 | 7.5~11 | 1800 |
Working principle
V-shaped cylinder which is driven by the drive shaft rotates around the center of the rotary axis, during which material starts gravity diffusion movement along with the V-shaped inclined cylinder, when the connection of the V-shaped cylinder is rotated in the upper position, the materials collected at the bottom are diverted into the two inclined cylinder bodies, so that the material of each inclined cylinder body can also enter the other inclined body through the joint ports tube inside. With the continuous rotation of the cylinder, the continuous changes of the cylinder body, V-cylinder material is repeatedly dislocation, translation, diffusion, so as to achieve uniform mixing.

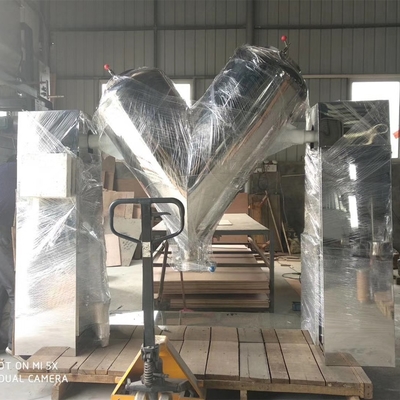

Pictures
