Product Details:
|
| Name: | High Speed Centrifugal Spray Dryer | Heat Source: | Gas Or Electric Or Steam Heating |
|---|---|---|---|
| Capacity: | 25kg/h | Application: | Liquid Form Material, Extracts |
| Voltage: | 220v/380v | Condition: | New |
| Weight: | 1000kg-9000kg (based On Capacity) | Warranty: | 1 Year |
| High Light: | 220v High Speed Centrifugal Spray Dryer,Ceramic Powder Centrifugal Spray Dryer,Egg Yolk Vitamin Ceramic Spray Dryer |
||

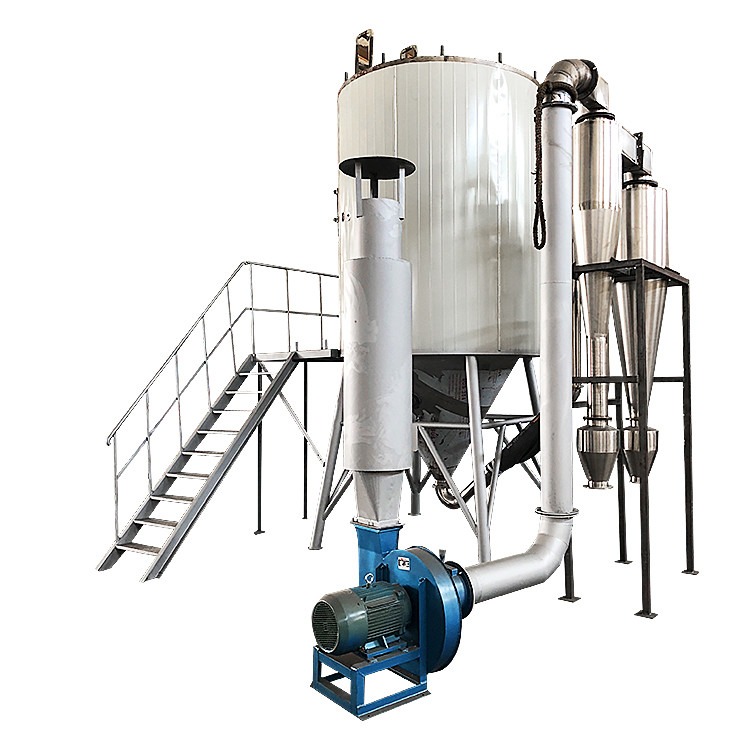

High Speed Centrifugal Spray Dryer
Ceramic Powder Centrifugal Spray Dryer Egg Yolk Vitamin Gas Heating Drying Machine
Introduction
Centrifugal Atomizer Spray Dryer
Particularly it has unique advantage for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, diary products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.
Principle of work
Air is turned into hot air through heater and enters into hot air distributor at the top of dry chamber and then enters into dry chamber and rotates in the state of helix. At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber through stepless variable screw pump. In which liquid of raw material atomizes small drops. Air and liquid of raw material flow and contact each other. The moisture vaporizes rapidly. Liquid of raw material is dried into finished product in a short time. The finished product is discharged through the bottom cyclone separator of drier and the wasted air is exhausted through fan.
Technical parameters
| Specification | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 |
| Inlet temp. (℃) | 140-350 | ||||
| Outlet temp. (℃) | 80-90 | ||||
| Spray form | High speed centrifugal atomization | ||||
| Water evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 |
| Atomizer speed(rpm) | 25000 | 22000 | 21500 | 18000 | |
| Diameter of atomizing disk(mm) | 50 | 120 | 150 | ||
| Electric heating power(kw) | 9.6 | 31.5 | 60 | 81 | 99 |
| Recovery rate of dry powder (%) | 99 | ||||
| Occupied length(m) | 1.6 | 4 | 4.5 | 5.2 | 7 |
| Occupied width (m) | 1.1 | 2.7 | 2.8 | 3.5 | 5.5 |
| Height of Tower(m) | 1.75 | 4.5 | 5.5 | 6.7 | 7.2 |
| Lifting height of nozzle(m) | 2.5 | 2.5 | 3.2 | 3.2 | |
Features
The dry speed is very quick. When raw material is atomized, the surface area increases greatly. 65~98% of moisture can be vaporized in hot air stream momentary. The dry time to be used is only 5~15 seconds. Especially, it is suitable for drying thermal sensitive raw materials.
The size of finished product is uniform and the flow and solubility are good. The purity and quality of product are good too.
The operation is stable and simple. The regulation and control is very convenient. It is easy to realize automatic operation.
The operation process is simplified and the operation environment is superior and can avoid powder dust during the period of operation.
Application
Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica, and so on.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.
