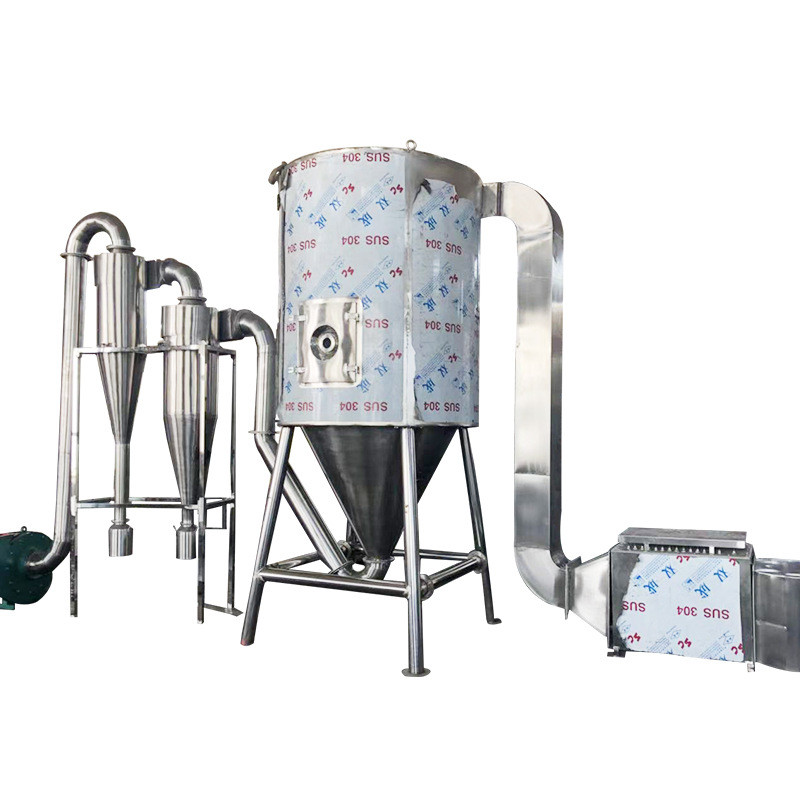

High Speed Centrifugal Spray Dryer
Electric Heating Graphene Carbon Powder Centrifugal Spray Dryer
Introduction
Description
The spray drying is the widest used technology in the liquid shaping technology and in the drying industry. It is most suitable for producing powder, particle, or block solid products from materials of solution, emulsion, soliquoid and pumpable paste states. Therefore, when the particle size and distribution of the final products, their residual water contents, the stocking density and the particle shape meet the precision standards, the spray drying is one of the most desired technologies.
Technical parameters
| Specification |
LPG-5 |
LPG-25 |
LPG-50 |
LPG-100 |
LPG-150 |
| Inlet temp. (℃) |
140-350 |
| Outlet temp. (℃) |
80-90 |
| Spray form |
High speed centrifugal atomization |
| Water evaporation(kg/h) |
5 |
25 |
50 |
100 |
150 |
| Atomizer speed(rpm) |
25000 |
22000 |
21500 |
18000 |
| Diameter of atomizing disk(mm) |
50 |
120 |
150 |
| Electric heating power(kw) |
9.6 |
31.5 |
60 |
81 |
99 |
| Recovery rate of dry powder (%) |
99 |
| Occupied length(m) |
1.6 |
4 |
4.5 |
5.2 |
7 |
| Occupied width (m) |
1.1 |
2.7 |
2.8 |
3.5 |
5.5 |
| Height of Tower(m) |
1.75 |
4.5 |
5.5 |
6.7 |
7.2 |
| Lifting height of nozzle(m) |
|
2.5 |
2.5 |
3.2 |
3.2 |
Feature
1, High speed of drying. After the spraying of he material liquid, the surface area of the material will be increased greatly. In the hot-air flow, 95%-98% of water can be evaporated at a moment. The time of completing the drying needs only several seconds.
2, It is especially suitable for drying the heat sensitive materials. It’s final products own the good uniformity, mobility, dissolving capacity. And the final products are high in purity and good in quality.
3, The production procedure is simple and the operational control is easy. The liquid with the moisture contents 40-60%(for special materials, the contents may reach 90%) can be dried into power or particle products once a time. After the drying, there is no need for smashing of sorting, so as to reduce the operation procedures in the production and enchance the purity. The product particle diamenters, looseness and water contents can be adjusted through changing the operation condition in a certain scope. It is very convenient to carry out the control and management.
Application
Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica, and so on.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.
