Zanthoxylum Stainless Steel Spray Drying Machine Ceramic Metal Powder Dryer
Product Details
Stainless Steel Spray Drying Machine
,Zanthoxylum Spray Drying Machine
,Ceramic Metal Powder Dryer
Stainless Steel Spray Drying Machine for Ceramic Metal Powder Zanthoxylum
High Speed Centrifugal Spray Dryer
Introduction
Made in China Stainless Steel Spray Dryer
This small centrifugal spray dryer is specially developed for scientific research department, colleges and universities, enterprises and institutions and engineering experiment centers, for experiment, small test and pilot test and so on.

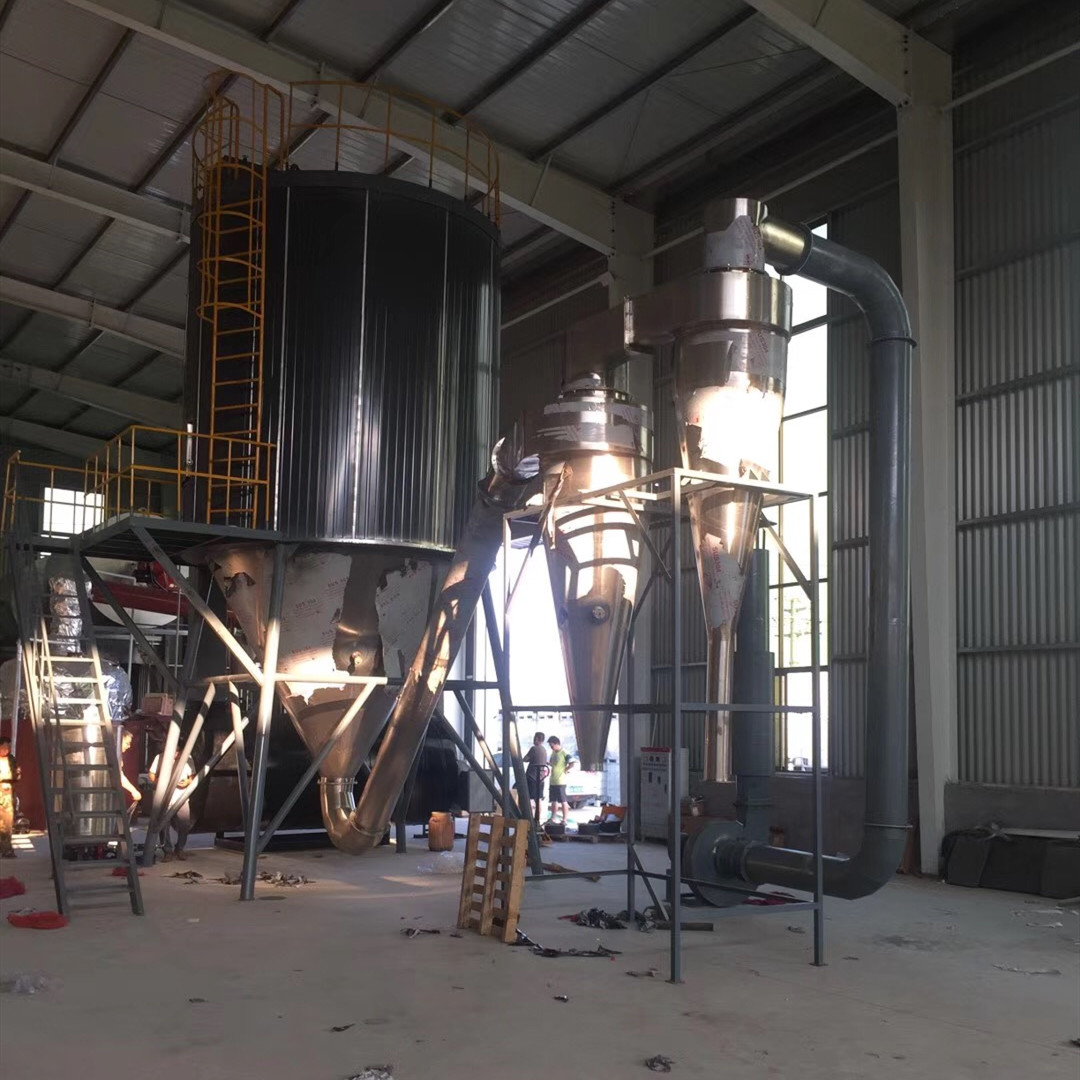

The equipment is mainly composed of a junior middle efficient filter, an electric heating box, a spray tower main body, a frequency conversion atomizer, a cyclone separator, an induced draft fan, a hot air pipe, an electric control box, etc. All parts are centralized on one frame, with wheels at the bottom of the frame for easy movement. The interface is simple and can be used only by connecting the power supply.
The drying speed is fast. After atomization, the surface area of the feed liquid increases greatly, and the moisture can be evaporated 65-98% in the hot air instantly.
Technical parameters
| Specification | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 |
| Inlet temp. (℃) | 140-350 | ||||
| Outlet temp. (℃) | 80-90 | ||||
| Spray form | High speed centrifugal atomization | ||||
| Water evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 |
| Atomizer speed(rpm) | 25000 | 22000 | 21500 | 18000 | |
| Diameter of atomizing disk(mm) | 50 | 120 | 150 | ||
| Electric heating power(kw) | 9.6 | 31.5 | 60 | 81 | 99 |
| Recovery rate of dry powder (%) | 99 | ||||
| Occupied length(m) | 1.6 | 4 | 4.5 | 5.2 | 7 |
| Occupied width (m) | 1.1 | 2.7 | 2.8 | 3.5 | 5.5 |
| Height of Tower(m) | 1.75 | 4.5 | 5.5 | 6.7 | 7.2 |
| Lifting height of nozzle(m) | 2.5 | 2.5 | 3.2 | 3.2 | |
Especially suitable for drying heat-sensitive materials, to ensure the color, aroma and taste of materials.
Simple and stable operation, convenient adjustment and control, easy to achieve automation.
The product has uniform particle size, good fluidity and instant solubility, high purity and good quality.
The atomizer is regulated by frequency conversion and the speed is adjustable from 0 to 25000 rpm.
The production process is simplified, the operation environment sanitation condition is superior, can avoid the dust in the drying process. For the integral frame structure, easy to move.
Application
Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica, and so on.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.
-
