Product Details:
|
| Name: | IBC Bin Blender | Control Mode: | PLC Touch Screen |
|---|---|---|---|
| Model: | 1000L | Mixing Speed: | 3-10rpm |
| Max. Volume: | 1000L | Load Volume: | 800L |
| Load Weight: | 500kg | Power: | 7kW |
| Weight: | 2000kg | Material: | 304 Or 316L Stainless Steel |
| High Light: | Aseptic Square Cone Mixer,Pharmaceutical square cone mixer,Chemical Powder Granule Mixing Machine |
||
Pharmaceutical aseptic square cone mixer chemical powder granule mixing machine

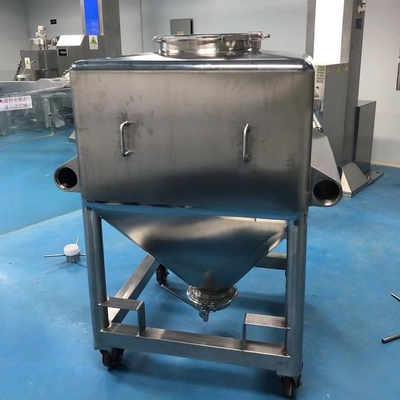

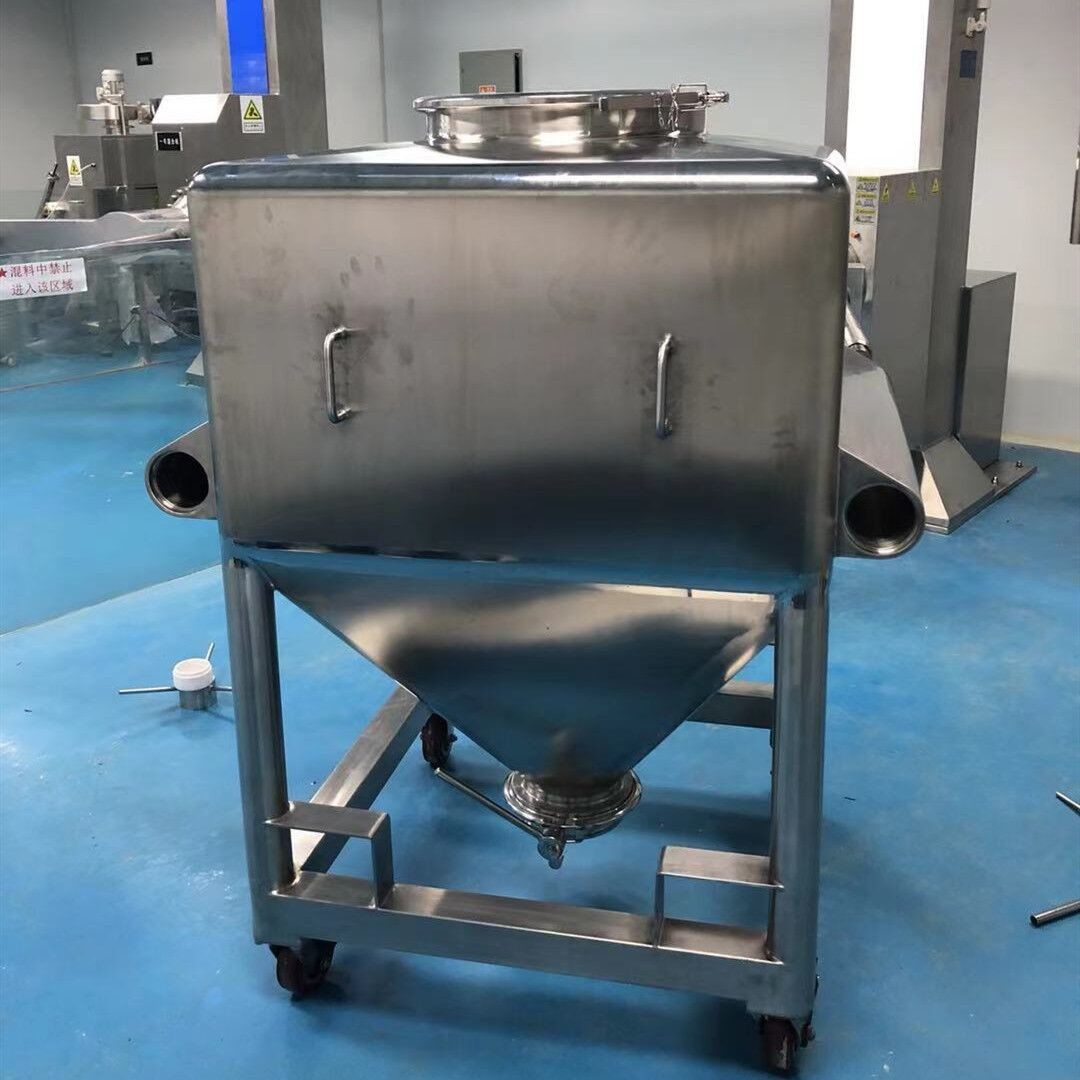

IBC Bin Blender
HTD series fixed hopper mixer is a machine, light and electricity integrated equipment that applies PLC program control technology and frequency conversion control technology. It is mainly used for the mixing of solid particles and powders, particles and particles, powder and powder and other materials in the pharmaceutical industry. It is also suitable for the mixing production process of powder materials in the food, fine chemical and other industries.
1. Use PLC and frequency conversion speed regulation to realize program control of the whole machine, with stable transmission, reliable structure, and large mixing volume. The square cone hopper is used to rotate around the symmetrical axis, and the material produces asymmetric, multi-directional and multi-dimensional movement in the hopper. , the mixing uniformity is high.
2. The man-machine operation interface adopts touch screen, which is friendly, clear and easy to operate. High degree of automation, built-in automatic and manual switchable control mode.
3. The parameter storage capacity is large, and it can store 20 sets of process parameters of different materials (or different production stages of the same material), which can be directly called when using.
4. The infrared photoelectric sensor with stable and reliable performance is adopted as one of the protective devices of the machine, which ensures the personnel when the equipment is working.
| Model | DTH50 | DTH100 | DTH200 | DTH300 | DTH400 | DTH500 | DTH600 | DTH800 | DTH1000 | DTH1200 | |
| W | 1400 | 1400 | 1800 | 2000 | 2100 | 2300 | 2400 | 2500 | 2700 | 2800 | |
| W1 | 1020 | 1020 | 1202 | 1306 | 1455 | 1530 | 1583 | 1730 | 1898 | 1888 | |
| W2 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 9o0 | 900 | |
| L | 2045 | 2045 | 2260 | 2457 | 2555 | 2595 | 2663 | 2800 | 3020 | 3150 | |
| L1 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 820 | 980 | |
| H | 2000 | 2000 | 2300 | 2300 | 2400 | 2500 | 2500 | 2500 | 2900 | 4250 | |
| H1 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 350 | 400 | 450 | |
| H2 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 900 | 1700 | |
| H3 | 1500 | 1500 | 1950 | 2150 | 2250 | 2400 | 2500 | 2600 | 2800 | 3100 | |
| Mixing speed | rpm | 3～20 | 3～20 | 3～20 | 3～20 | 3～20 | 3～15 | 3～15 | 3～15 | 3～10 | 3～8 |
| Maximum silo volume | L | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Loading | L | 40 | 80 | 160 | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Load weight | kg | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 4o0 | 500 | 550 |
| Total power | kw | 3.7 | 3.7 | 4.4 | 5.2 | 5.2 | 5.2 | 5.2 | 7 | 7 | 7 |
| Total weight | kg | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1600 | 2000 | 2200 |

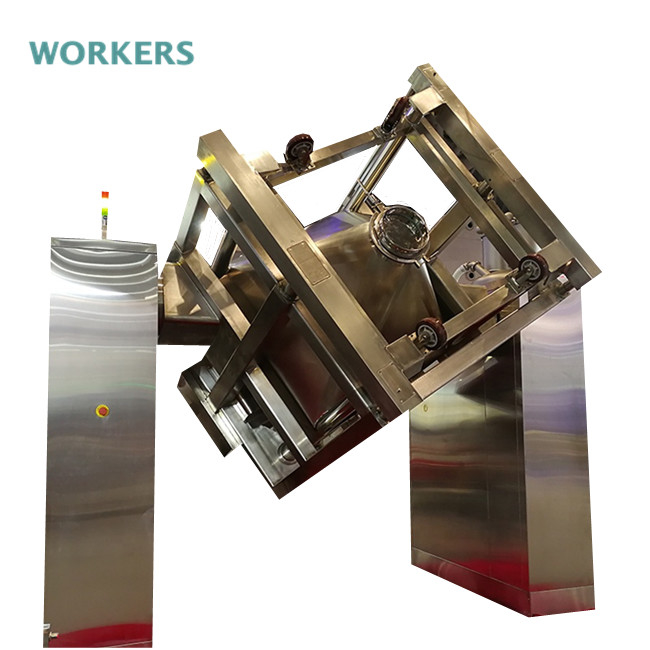

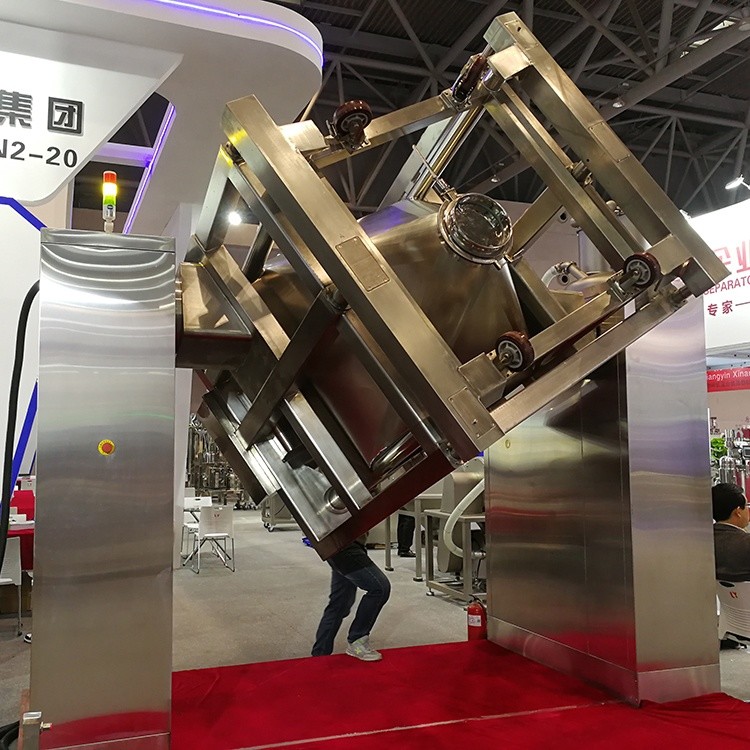

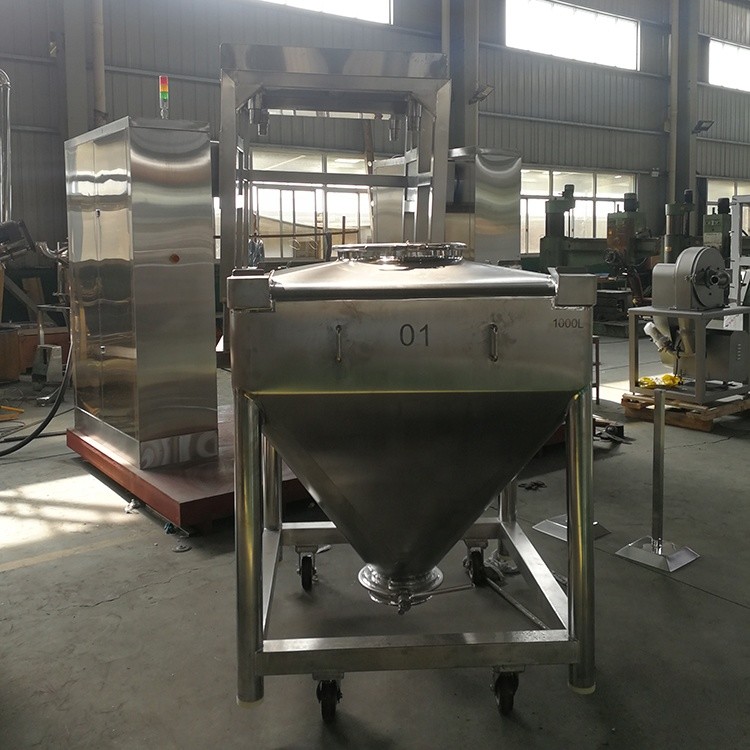

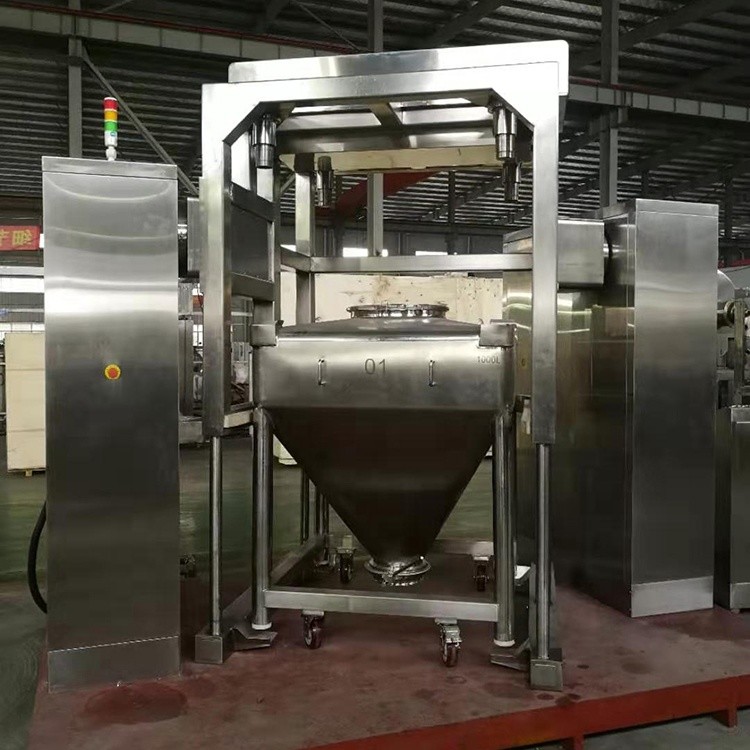

The IBC bin blender machine consists of the base, the rotor, the drive system, the lifting system, the braking system and the control system. Work, the first mixing hopper pushed to the body, press the touch screen "confirm" button, you can automatically raise the mixing hopper in place, and automatically clamp. Pressure sensor to get the clamping signal, the drive system work, according to the set time, speed mixing; to set the parameters, the rotor can automatically stop, while the brake system work, mixing the end; and then upgrade the system work, The rotating body of the mixing hopper down in place, automatically stop, and print process data. Push the mixing hopper to the next step.
