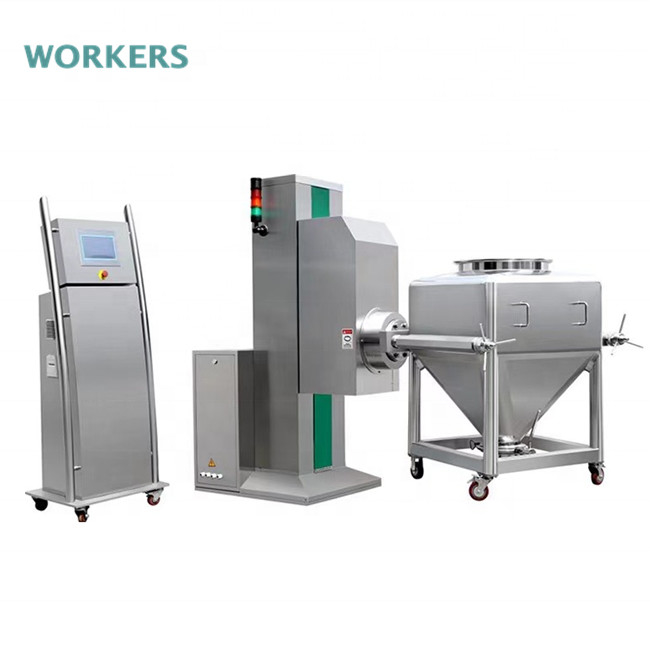

PLC Touch Screen 1000L Lifting Hopper IBC Bin Mixer For Nutraceuticals
Basic Properties
Place of Origin:
CHINA
Brand Name:
xiaoli
Certification:
CE
Model Number:
1000L
Trading Properties
Minimum Order Quantity:
1
Price:
Negotiable
Payment Terms:
T/T
Supply Ability:
10 sets per month
Product Summary
Lifting Hopper IBC Bin Mixer for Nutraceuticals Pharmaceutical Chemical Powders IBC Bin Blender This machine is our company widely absorb, digest foreign advanced technology, combined with national conditions R & D success of the new models. Reasonable structure, stable performance, easy operation, ...
Product Details
Highlight:
PLC Touch Screen IBC Bin Mixer
,IBC Bin Mixer For Nutraceuticals
,1000L Lifting Hopper mixer
Name:
IBC Bin Blender
Control Mode:
PLC Touch Screen
Model:
1000L
Mixing Speed:
3-10rpm
Max. Volume:
1000L
Load Volume:
800L
Load Weight:
500kg
Power:
7kW
Weight:
2000kg
Material:
304 Or 316L Stainless Steel
Product Description
Lifting Hopper IBC Bin Mixer for Nutraceuticals Pharmaceutical Chemical Powders
IBC Bin Blender
This machine is our company widely absorb, digest foreign advanced technology, combined with national conditions R & D success of the new models. Reasonable structure, stable performance, easy operation, no dead ends, no exposed screws. The rotor (mixing hopper) is at an angle of 30 ° to the axis of rotation. The material in the mixing hopper is tilted along with the rotor, and the tangential movement along the bucket wall produces a strong inversion and high-speed tangential motion to achieve the best The mixing effect. Using PLC automatic control, and set the infrared safety devices and anti-misoperation device out of the butterfly valve to ensure production safety. Materials can be in the same container through a different block, do not need frequent transfer, feeding and other procedures. Effectively control the dust and cross pollution, reduce the loss of materials, control the material layer, optimize the production process, in full compliance with the GMP production requirements of drugs.
Technical parameters
| Model | DTH50 | DTH100 | DTH200 | DTH300 | DTH400 | DTH500 | DTH600 | DTH800 | DTH1000 | DTH1200 | |
| W | 1400 | 1400 | 1800 | 2000 | 2100 | 2300 | 2400 | 2500 | 2700 | 2800 | |
| W1 | 1020 | 1020 | 1202 | 1306 | 1455 | 1530 | 1583 | 1730 | 1898 | 1888 | |
| W2 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 9o0 | 900 | |
| L | 2045 | 2045 | 2260 | 2457 | 2555 | 2595 | 2663 | 2800 | 3020 | 3150 | |
| L1 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 800 | 820 | 980 | |
| H | 2000 | 2000 | 2300 | 2300 | 2400 | 2500 | 2500 | 2500 | 2900 | 4250 | |
| H1 | 250 | 250 | 350 | 350 | 350 | 350 | 350 | 350 | 400 | 450 | |
| H2 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 750 | 900 | 1700 | |
| H3 | 1500 | 1500 | 1950 | 2150 | 2250 | 2400 | 2500 | 2600 | 2800 | 3100 | |
| Mixing speed | rpm | 3～20 | 3～20 | 3～20 | 3～20 | 3～20 | 3～15 | 3～15 | 3～15 | 3～10 | 3～8 |
| Maximum silo volume | L | 50 | 100 | 200 | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 |
| Loading | L | 40 | 80 | 160 | 240 | 320 | 400 | 480 | 640 | 800 | 960 |
| Load weight | kg | 25 | 50 | 100 | 150 | 200 | 250 | 300 | 4o0 | 500 | 550 |
| Total power | kw | 3.7 | 3.7 | 4.4 | 5.2 | 5.2 | 5.2 | 5.2 | 7 | 7 | 7 |
| Total weight | kg | 600 | 700 | 800 | 900 | 1000 | 1200 | 1300 | 1600 | 2000 | 2200 |
The IBC BIN blender machine automatically completes the lifting, clamping, mixing, descent and all other actions. With a single-arm lifting hopper mixer and a number of different specifications of the mixing hopper, will be able to meet the large quantities, more varieties of mixed requirements, is the ideal mixture of pharmaceutical equipment. At the same time in the pharmaceutical, chemical, food and other industries widely used. Its main features can be designed for wall design, equipment, work area and drive area separately, to reduce the clean area.

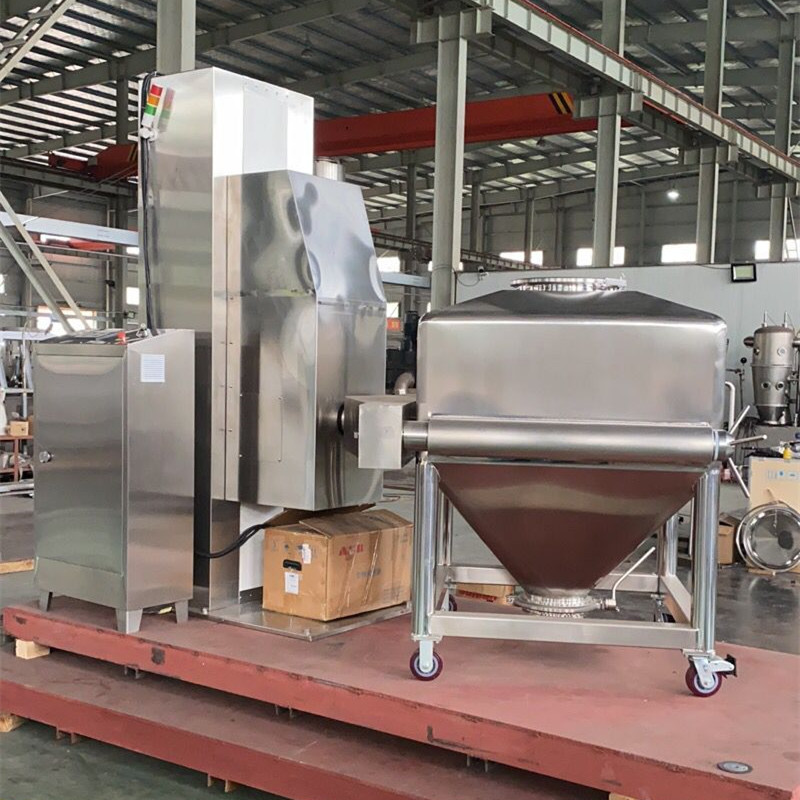

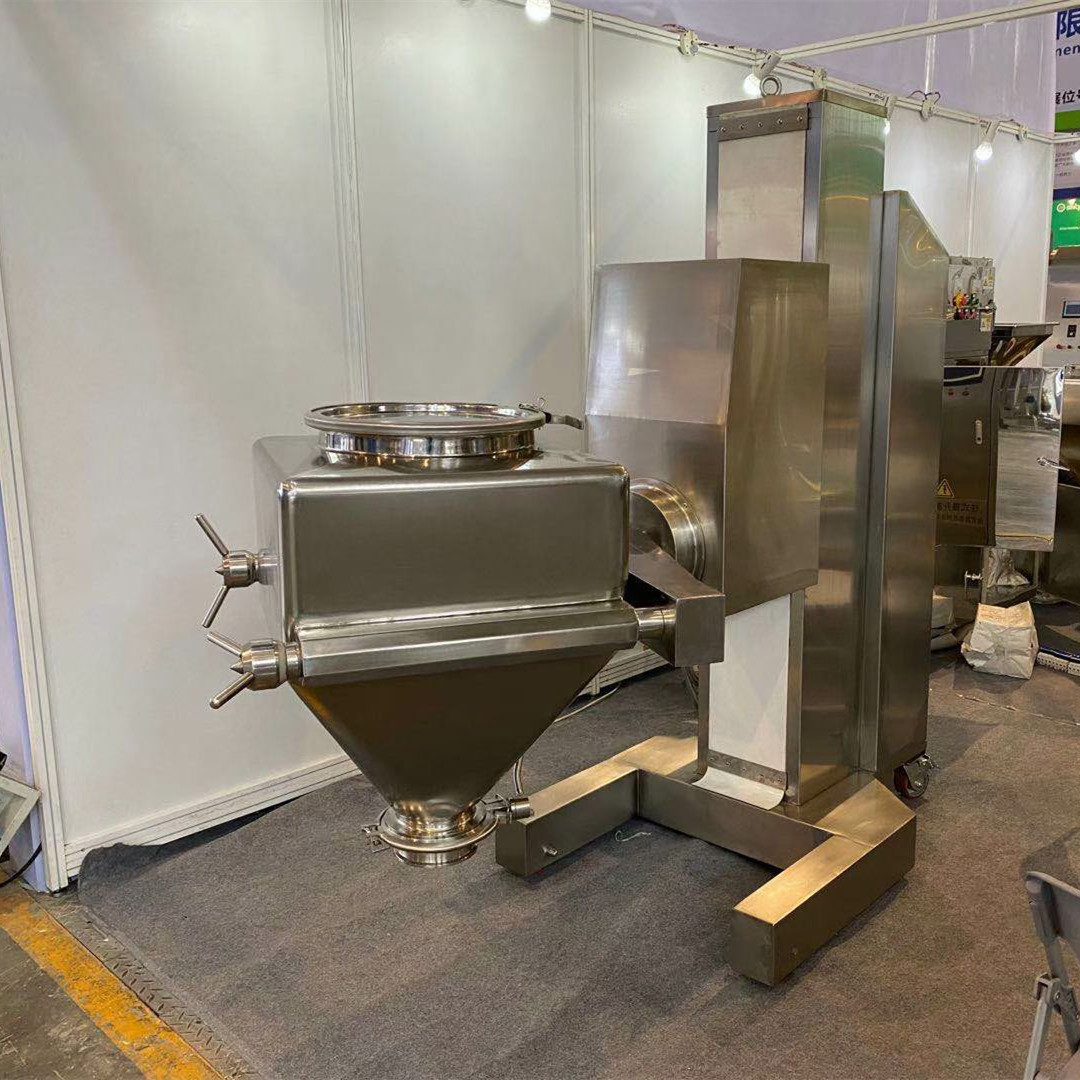

The IBC bin blender machine consists of the base, the rotor, the drive system, the lifting system, the braking system and the control system. Work, the first mixing hopper pushed to the body, press the touch screen "confirm" button, you can automatically raise the mixing hopper in place, and automatically clamp. Pressure sensor to get the clamping signal, the drive system work, according to the set time, speed mixing; to set the parameters, the rotor can automatically stop, while the brake system work, mixing the end; and then upgrade the system work, The rotating body of the mixing hopper down in place, automatically stop, and print process data. Push the mixing hopper to the next step.
Design
