Product Details:
|
| Name: | Experimental Microwave Vacuum Dryer | Model: | WKS-MV-6 |
|---|---|---|---|
| Capacity: | 5-10kg/batch | Function: | Drying |
| Microwave Power: | 6kw | Materials: | 304 Stainless Steel |
| High Light: | Stainless Steel Vacuum Microwave Oven,Laboratory vacuum microwave oven,Vacuum oven with dehydrator function |
||

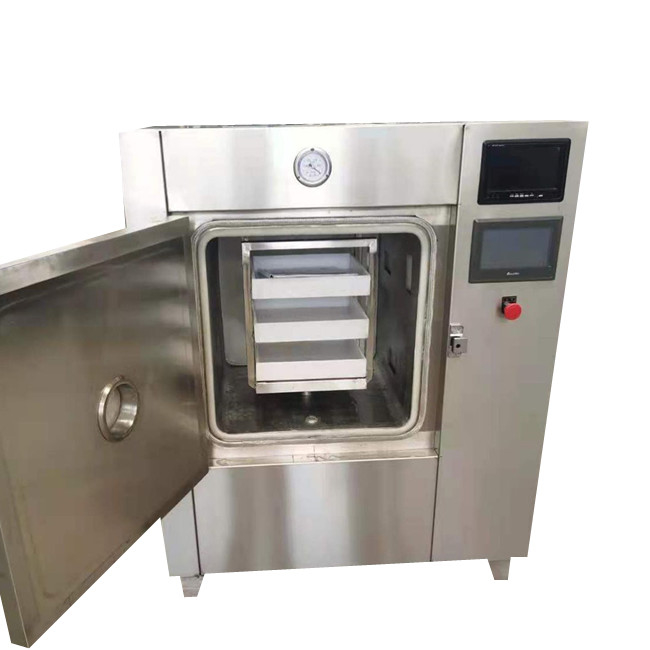

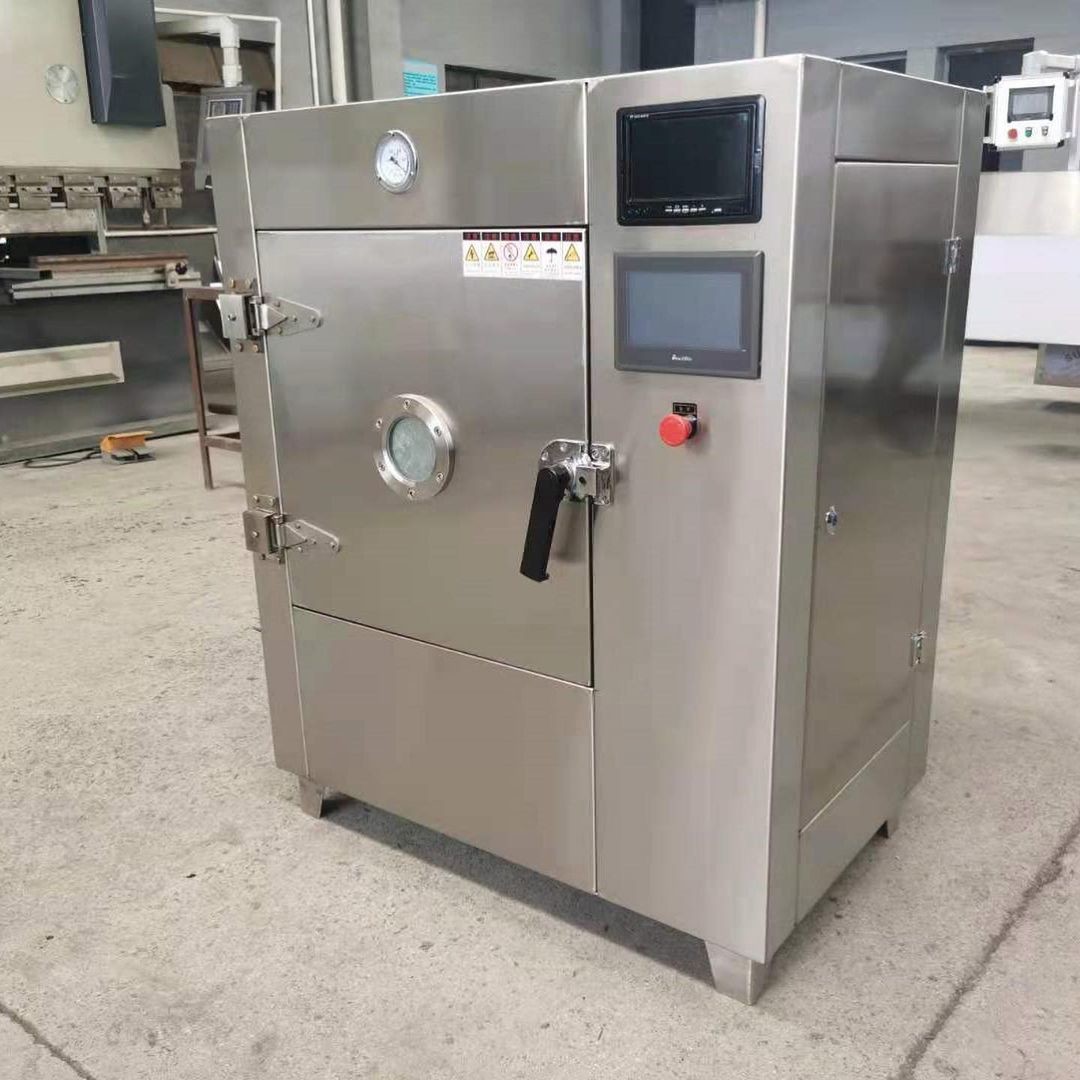

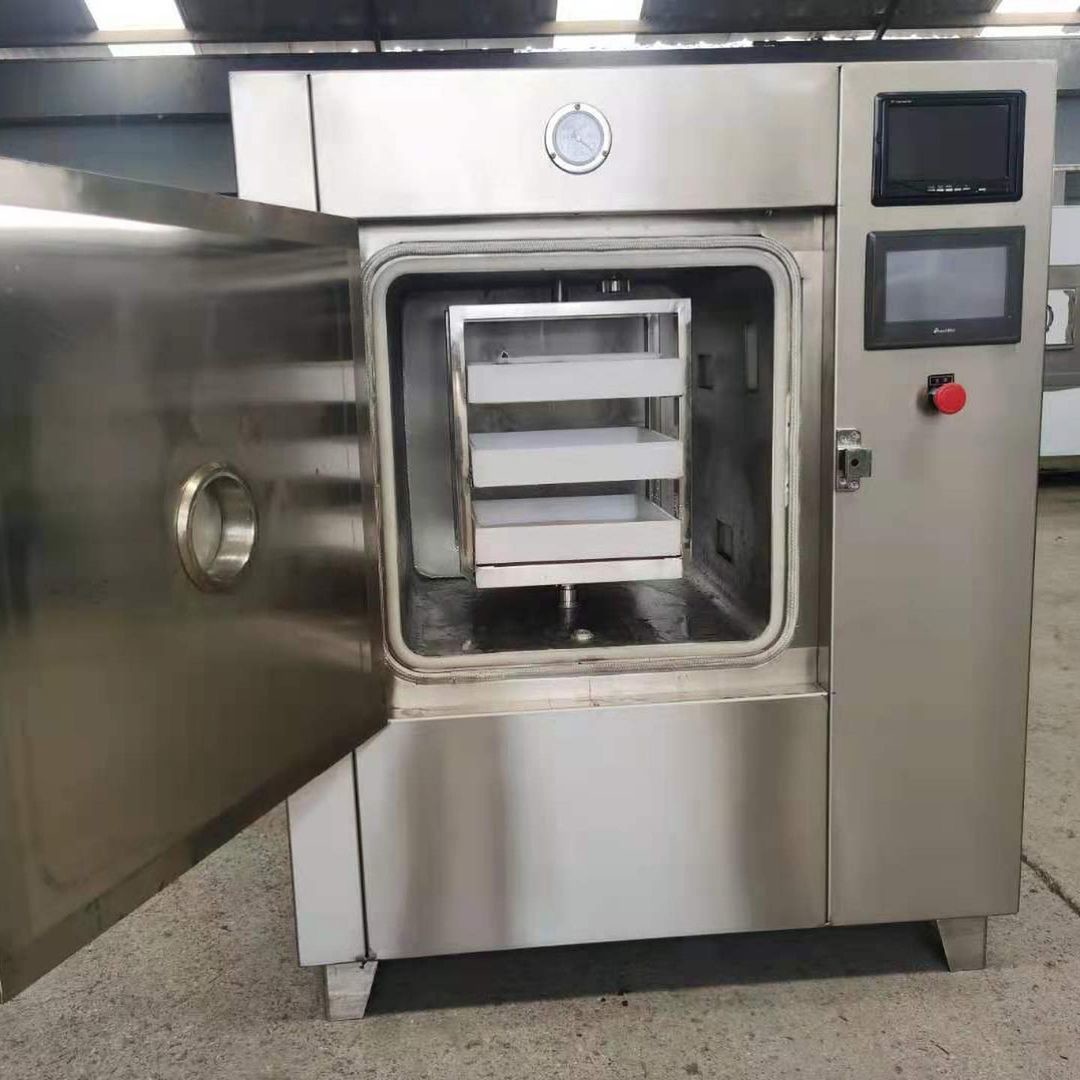

Laboratory stainless steel microwave vacuum dryer vacuum dehydrator drying oven machine
Microwave Vacuum Dryer
Microwave vacuum drying equipment is a new type of microwave energy application equipment combining microwave energy technology and vacuum technology. It has a series of advantages of microwave and vacuum drying, and overcomes the shortcomings of conventional vacuum drying cycle and low efficiency. In the drying process, the work efficiency can be improved by 4 to 10 times compared with the conventional method. Microwave vacuum drying equipment is a comprehensive high-tech equipment combining microwave energy application technology and vacuum drying technology condensation and dehumidification technology. It is mainly used for low temperature dehydration of fruits, vegetables and food etc.
| Model | WKS-MV-3 | WKS-MV-6 | WKS-MV-9 | WKS-MV-12 | WKS-MV-24 | WKS-MV-48 |
| Microwave power | 3kw | 6kw | 9kw | 12kw | 24kw | 48kw |
| Frequency | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz |
| Evaporation capacity | 2.4-3kg/h | 4.8-6kg/h | 7.2-9kg/h | 9.6-12kg/h | 19.2-24kg/h | 38.4-48kg/h |
| Cooling | Air | Air | Air | Air | Air/water | Air/water |
| Vacuum pump | 1.8kw | 2.2kw | 2.2kw | 4.5kw | 7.5kw | 15kw |
| Control | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
Microwave vacuum drying equipment is a new type of microwave energy air drying application equipment that combines microwave drying technology and vacuum technology. In the drying process of general materials, the work efficiency can be increased by 4 to 10 times compared with conventional methods.

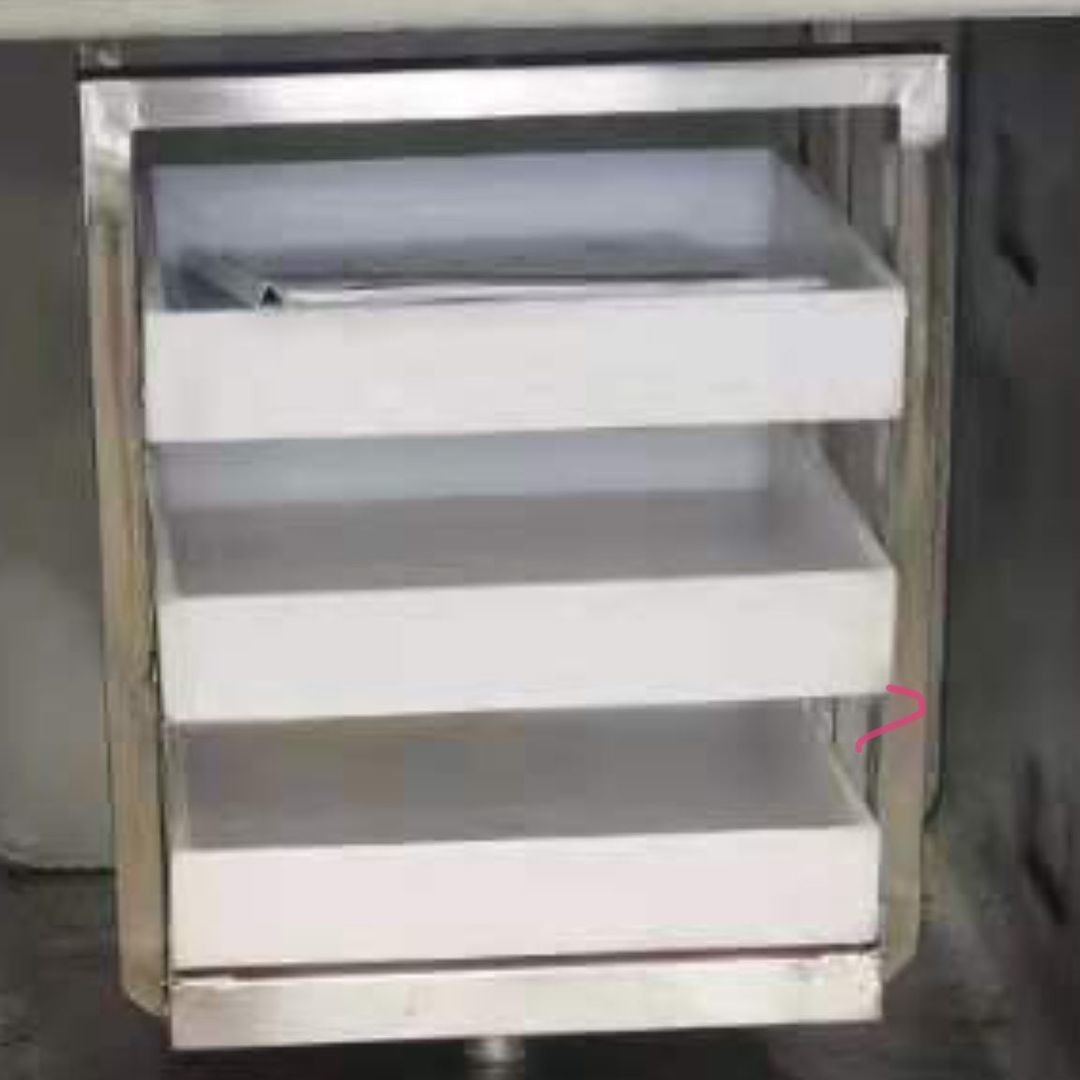

Under vacuum conditions, the vaporization temperature of water is low, which is beneficial to inhibit the browning of food and maintain the original color of food. The microwave vacuum drying equipment mainly includes microwave source, puffing tank, hanging basket system, material tray, vacuum unit, and control system. The whole machine is composed of Made of stainless steel, it is clean, hygienic, and pollution-free. It can also be equipped with a condenser to recover vapor and liquid.
This machine is specially designed and manufactured for laboratories in schools, scientific research institutions, enterprises, etc. It can heat, concentrate, sterilize and expand various materials. Collect experimental data through testing to provide accurate process parameters. This machine can meet the requirements of GMP, automatic control, visual operation, short drying time, low temperature, easy operation, etc. It is widely used in botany, zoology, molecular biology, new material science, medicine, chemical industry, food science and other industries .
FAQ:
1. Question: What information should be provided in order to get a quotation of microwave vacuum dryer?
Answer: Our Sintering oven can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What are you going to dry?
2) What is the handing capacity per batch?
3) Max temperature, heat-up rate, temperature uniformity.
2. Question: What is lead time?
Answer: 30-45 working day.
3. Question: How the dryer will be delivered ?
Answer: FOB LCL or FLC for shipping
5.Question: What standard models do you have?
Answer: We have the following standard models:
