Product Details:
|
| Name: | Low Temperature Microwave Vacuum Dryer | Model: | WKS-MV-30 |
|---|---|---|---|
| Trays: | 300*600*50mm*20pcs | Capacity: | 50-80kg/batch |
| Materials: | 304 Stainless Steel | Application: | Drying And Dehydration |
| High Light: | Cabinet Microwave Vacuum Drying Equipment,ISO microwave vacuum drying equipment,Microwave vegetable dryer dehydrator machine |
||

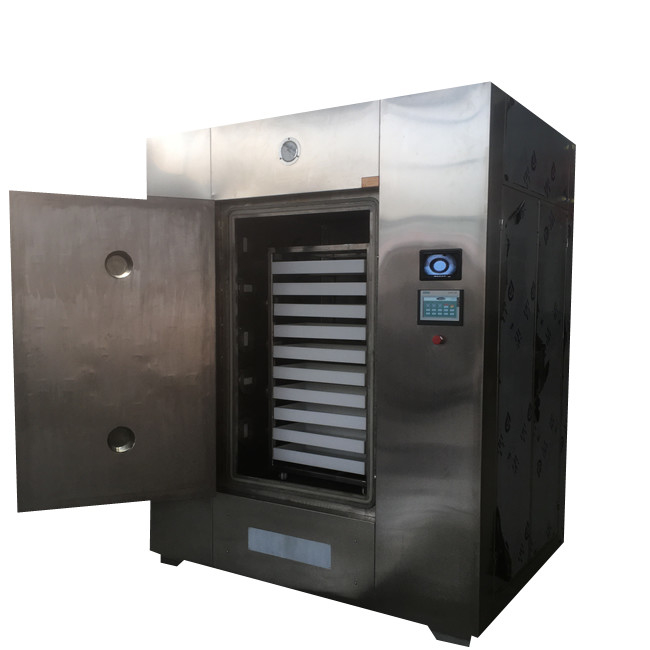

Cabinet Low Temperature Microwave Vacuum Dryer Dehydrator with Polypropylene Tray
Microwave Vacuum Dryer
Microwave vacuum drying equipment is a new type of microwave energy application equipment combining microwave energy technology and vacuum technology. It has a series of advantages of microwave and vacuum drying, and overcomes the shortcomings of conventional vacuum drying cycle and low efficiency. In the drying process, the work efficiency can be improved by 4 to 10 times compared with the conventional method. Microwave vacuum drying equipment is a comprehensive high-tech equipment combining microwave energy application technology and vacuum drying technology condensation and dehumidification technology. It is mainly used for low temperature dehydration of fruits, vegetables and food etc.
| Model | WKS-MV-3 | WKS-MV-6 | WKS-MV-9 | WKS-MV-12 | WKS-MV-24 | WKS-MV-48 |
| Microwave power | 3kw | 6kw | 9kw | 12kw | 24kw | 48kw |
| Frequency | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz |
| Evaporation capacity | 2.4-3kg/h | 4.8-6kg/h | 7.2-9kg/h | 9.6-12kg/h | 19.2-24kg/h | 38.4-48kg/h |
| Cooling | Air | Air | Air | Air | Air/water | Air/water |
| Vacuum pump | 1.8kw | 2.2kw | 2.2kw | 4.5kw | 7.5kw | 15kw |

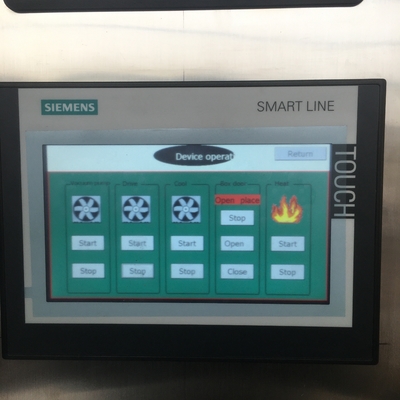

| Control | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
The microwave vacuum dryer has the advantages of high drying output, good quality and low processing cost. It is a newly developed new technology and process. In production, there are many items that cannot be dried under high temperature conditions, such as some medicines, chemicals, nutritional foods, and high-end Chinese herbal medicines such as ginseng and deer antler, especially the drying of traditional Chinese medicine extracts. Benefit characteristics, in order to ensure the quality of the product, the drying treatment must be carried out at a temperature lower than 100 ° C or at room temperature. It is well known that the reduction of air pressure reduces the boiling point of water. For example, under an atmospheric pressure (101.3kpa), the boiling point of water is 100°C, and at -0.073mpa (7.37kpa), the boiling point of water is 40°C, and at -0.09mpa, the boiling point of water is 33°C, which can be achieved at low temperature. Drying of materials, therefore, under vacuum conditions , heating the object can make the moisture inside the object evaporate at the low temperature.

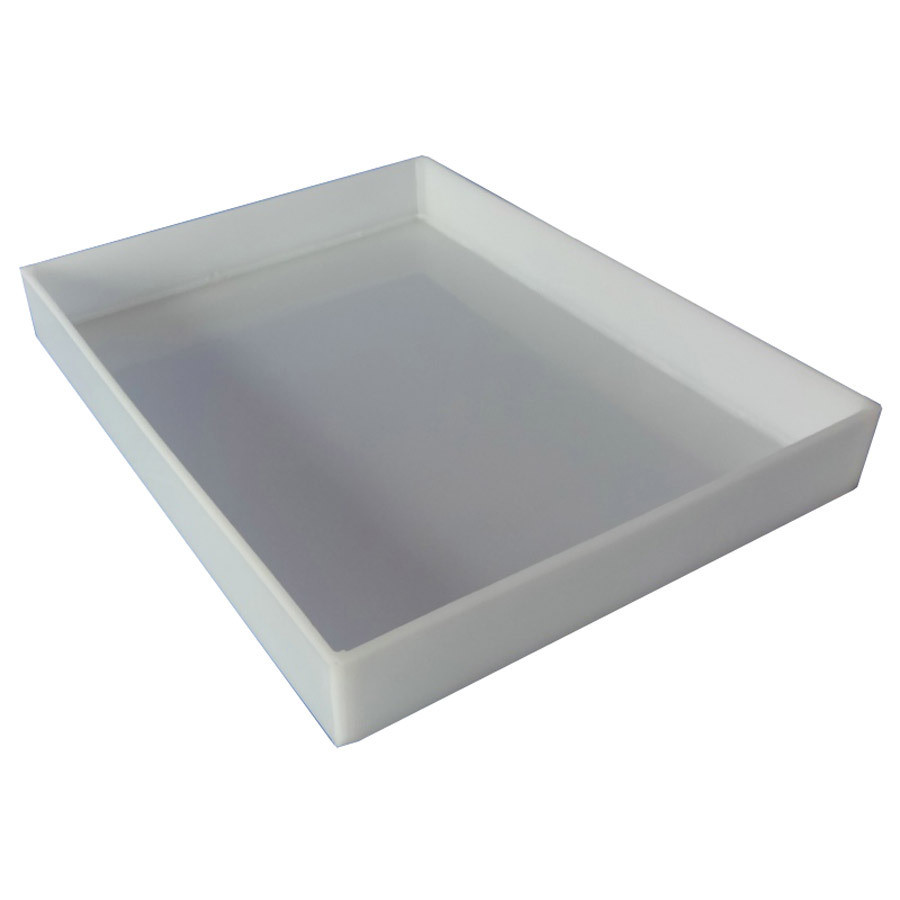

The tray of microwave vacuum dryer is made of high-quality polyethylene material, which is resistant to acid, alkali and high temperature, and is widely used in food, fruit and vegetable, chemical and pharmaceutical industries. The tray can also be made of high-quality PTFE according to customer requirements, which has better corrosion resistance.
FAQ:
1. Question: What information should be provided in order to get a quotation of microwave vacuum dryer?
Answer: Our Sintering oven can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What are you going to dry?
2) What is the handing capacity per batch?
3) Max temperature, heat-up rate, temperature uniformity.
2. Question: What is lead time?
Answer: 30-45 working day.
3. Question: How the dryer will be delivered ?
Answer: FOB LCL or FLC for shipping
5. Question: What standard models do you have?
Answer: We have the following standard models:
