Product Details:
|
| Name: | WKS Series Vacuum Microwave Dryer | Evaporation Capacity: | 9.6-12kg/h |
|---|---|---|---|
| Application: | Food Fruit Vegetable | Microwave Power: | 12kw |
| Materials: | 304 Stainless Steel | Weight: | 3000kg |
| High Light: | WKS Microwave Vacuum Dryer,Microwave Vacuum Dryer 9.6kg/H,12kg/H Food Processing Dehydrator |
||

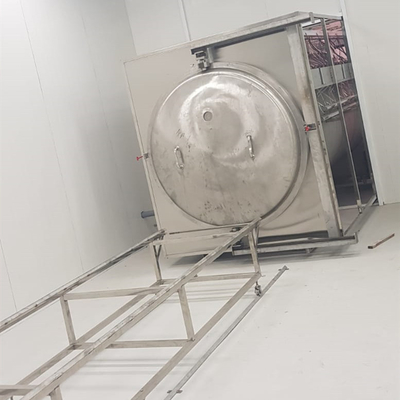

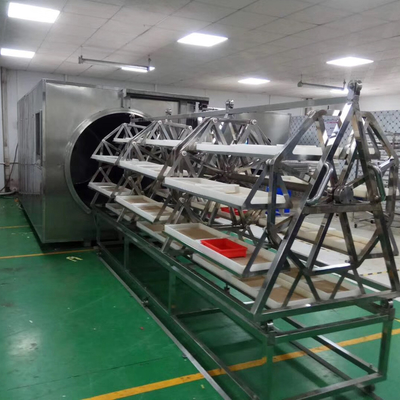

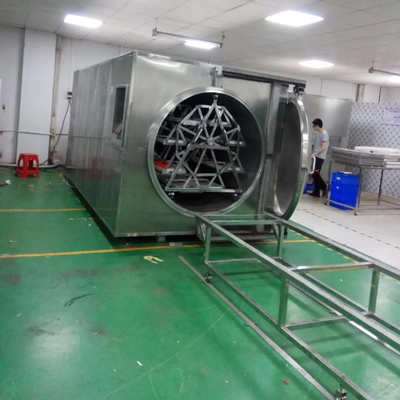

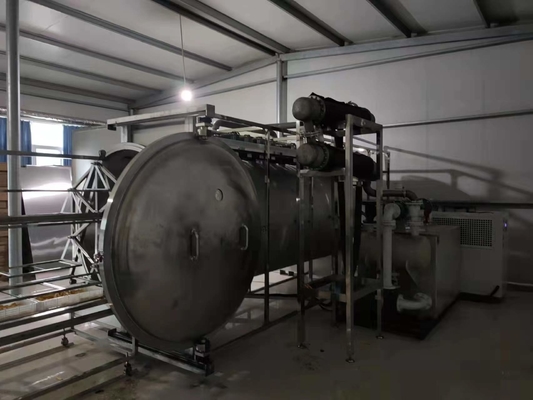

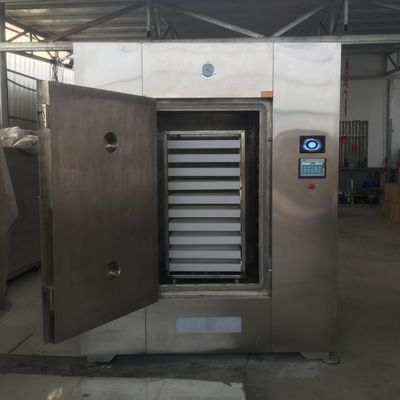

WKS Series Vacuum Microwave Dryer Dehydrator Drying Oven Machine Equipment
Vacuum Microwave dryer
WKS Series Vacuum Microwave Dryer is suitable for low temperature dry of thermal sensitive materials, especially for sold Chinese medicine, honey, bee products, etc. Adjustable vacuum is with this equipment and get high dry speed, it can advance more for product quality and get features of equal heating, easily control and convenient installation, etc. It is widely used in heating sterilizing, ripped of medicine, biology product and forming products. It has special excellent efficient for several kinds of pellet, granule drying., As same, this microwave vacuum dryer comes sterilizing function and has features of adjustable power, intelligent control. Safety and sanitation product will be produced by it with long storage period.
| Model | WKS-MV-3 | WKS-MV-6 | WKS-MV-9 | WKS-MV-12 | WKS-MV-24 | WKS-MV-48 |
| Microwave power | 3kw | 6kw | 9kw | 12kw | 24kw | 48kw |
| Frequency | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz |
| Evaporation capacity | 2.4-3kg/h | 4.8-6kg/h | 7.2-9kg/h | 9.6-12kg/h | 19.2-24kg/h | 38.4-48kg/h |
| Cooling | Air | Air | Air | Air | Air/water | Air/water |
| Vacuum pump | 1.8kw | 2.2kw | 2.2kw | 4.5kw | 7.5kw | 15kw |
| Control | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
Functions:
1.High Efficiency, this processing speed is four times higher than normal drying processing.
2.Uniform Heating: The machine is Micro Wave for heating, So the inner and outer of the raw material will be heated at same time. Then the heating and drying will be very uniform.
3.Easily Controlling: Because of the Micro Wave Heating, so the machine can work continuously. And the power of Micro Wave is easy adjusting without any inertia, so the processing is easy operation and easily controlling. All of the data for Micro Wave can be set by Touch screen.
4.Sterilizing: Micro wave equipments always get functions of sterilizing, fats heating and clean. So the finished products are higher quality with long storage time.
5.The machine comes with Camera for production monitoring.
Application
1.The flavorings spice.
2.Subsidiary agricultural products, deep processing products of fruit, vegetable.
3.Various dried meat, like beef, pork, chicken,duck, fish, etc.
4.The grain, the deep manufactured products.
5.Sterilization of beverage and the wine, the meat, the marine product, the roasted seeds and nuts, and etc.
6.Chemical material,medicine tablet.
7.Powder for various material.
FAQ:
1. Question: What information should be provided in order to get a quotation of microwave vacuum dryer?
Answer: Our Sintering oven can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What are you going to dry?
2) What is the handing capacity per batch?
3) Max temperature, heat-up rate, temperature uniformity.
2. Question: What is lead time?
Answer: 30-45 working day.
3. Question: How the dryer will be delivered ?
Answer: FOB LCL or FLC for shipping
5.Question: What standard models do you have?
Answer: We have the following standard models:
