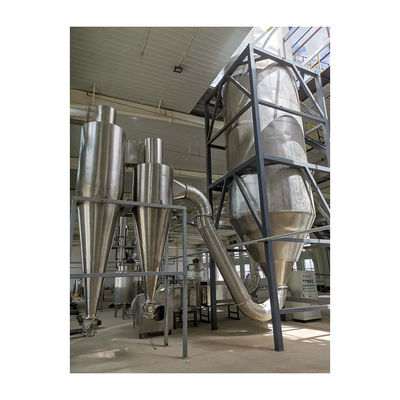

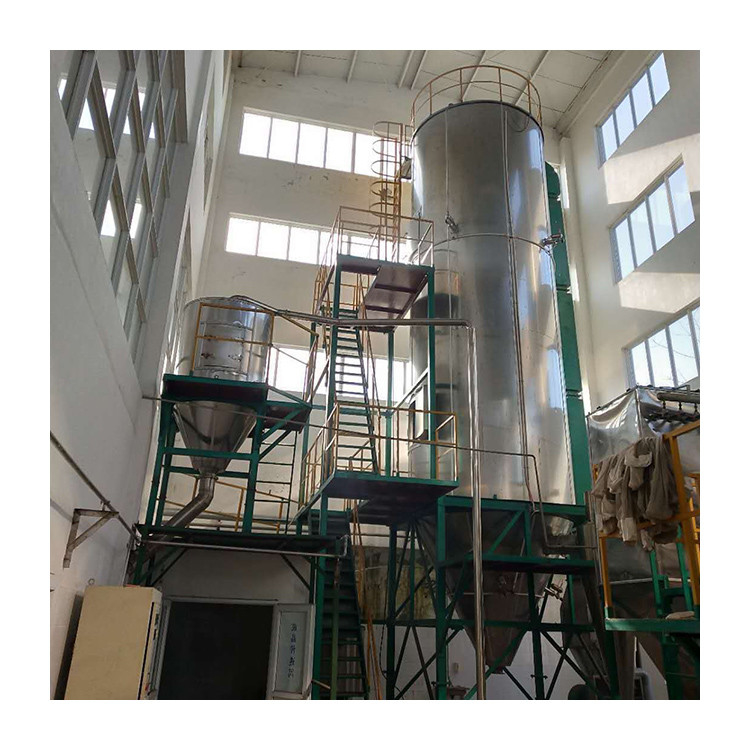

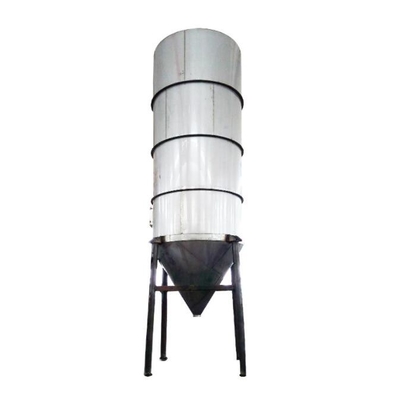

Calcium Chloride Pressure Spray Dryer

Calcium Chloride Pressure Spray Dryer
Calcium Chloride Pressure Spray Dryer Calcium Chloride Pressure Spray Dryer Calcium Chloride Pressure Spray Dryer

Large Image :  Calcium Chloride Pressure Spray Dryer

Product Details:
Place of Origin: CHINA
Brand Name: WKS
Certification: CE
Model Number: YPG-50
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: about 30 working days
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH

Calcium Chloride Pressure Spray Dryer

Description
Name: Pressure Spray Dryer Capacity: 25-500 Kg/h Water Evaporation
Diameter Of Tower Body:: 1300-3800mm Total Height Of Equipment:: 7800-19000mm
Warranty: 1 Year Material: SUS304, SUS304L, SUS316, SUS316L
High Light:

Calcium Chloride Pressure Spray Dryer

,

Aluminum Hydroxide Pressure Spray Dryer

,

ODM calcium chloride dryer

Aluminum Hydroxide Dryer Calcium Chloride Pressure Spray Dryer



Pressure Spray Dryer



Descriptions:
The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of isoulate pump, and quickly drying through amplly heat exchange.(10~90sec.) at last, the powder or small granule is finished.

Features:
● The dry speed is fast and suitable for drying thermal sensitivity material particularly.
● The finished product is ball granile with uniform size. Its fluidity and solubility are good. The purity of product is high and its quaity is good.
● It applied scope is wide. According to the characteristics of raw material,it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
● Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.

Applications:
It is suitable for liquid of foodstuff,pharmaceutical,chemical industry,dyestuff,ceramics,agrochemicals,plastic and so on.



Technical parameters

Model YPG-25 YPG-50 YPG-100 YPG-150 YPG-200 YPG-300 YPG-500 YPG-1000-2000
Water evaporation kg/h 25 50 100 150 200 300 500 The index can be affirmed inaccordance with particle conditions.
DiaphragmPump Power kW 0.35 4 7.5 11 15 22 30
Pressure Mpa lt can be regulated from 0.6-5, usually, it is between 1-3 when in operation
Heating way Electricity Electricity+steam Electricity+coal(oil) hot air furnace
Diameter of tower mm 1300 1800 2400 2600 2800 3200 3800
Total height of equipment mm 7800 9200 11600 14000 15300 17100 19000



Calcium Chloride Pressure Spray Dryer 0



Features

1. High collecting rate, no stick on the wall.

2. Fast drying, high efficiency, energy saving.

3. Particularly applicable for heat sensitive material

4. Good for raw materials that are large in viscosity, paste material.

5. The nozzle is simple in structure, convenient in maintenance and low cost in operation.

6. The machine heating system is very flexible, we can configure it based on the customer site conditions such as steam, electricity, gas furnace and etc.

Control systems have more choices, such as push button, HMI+PLC and etc.



Brief Introduction

The material is sprayed into fine mist by nozzle on the top of tower, Follow the heat wind, the material is dried. The machine with high collection rate and no stick on the wall characteristic. Save energy, high efficiency, Particularly suitable for heat sensitive material.it is widely used in food, dyestuff, chemical industry and etc

Working principle



The liquid material is pumped in through diaphragm pump. The liquid material can be atomized into tiny droplets. Then it gathers with hot air falling off. Most parts of powder material will be collected from the outlet of the main tower bottom. For the fine powder, we will still continuously collect by the cyclone separator and cloth bag filter.



APPLICATION

Chemical industry: Sodium Fluoride (Potassium ), Alkaline Dyestuff And Pigment,Dyestuff Intermediate, Mn3o4, Compound Fertilizer, Formic Silicic Acid, Catalyst, Sulphuric Acid Agent, Amino Acid,White Carbon, and etc.

Food Industry: Fatty Milk Powder, Protein, Cocoa Milk Powder, Subsitute Milk Powder,Egg White (Yolk), Food And Plant,Oats,Chicken Juice, Coffee, Instant Dissoluble Tea ,Seasoning Meat,Protein ,Soybean,Peanut Protein, Hydrolysate, Sugar,Corn Syrup,Corn Starch,Glucose, Pectin,Malt Sugar, Sorbic Acid Potassium, and etc.

Pharmaceutical Industry: Chinese Traditional Medicines, Pesticide, Antibiotic, Medical Drinking Agent,and etc.

Plastics and Resin: AB, ABS Emulsion, Uric Acid Resin, Phenolic Aldehyde Resin, Urea-Formaldehyde Resin, Formaldehyde Resin, Polythene, Poly-Chloroprene, And etc.

Detergent: Common Washing Powder,Advanced Washing Powder,Soap Powder, Soda Ash, Emulsifier, Brightening Agent, Orthophosphoric Acid, and etc.

Ceramic: Aluminium Oxide, Ceramic Tile Material, MagnesiumOxide, Talcum, and etc. Other: Calmogastrin, Hime Chloride , Stearic Acid Agent, and etc.
