WKS Automatic Hot Air Oven Dryer Apple Fruit And Vegetable Dehydrator
Product Details

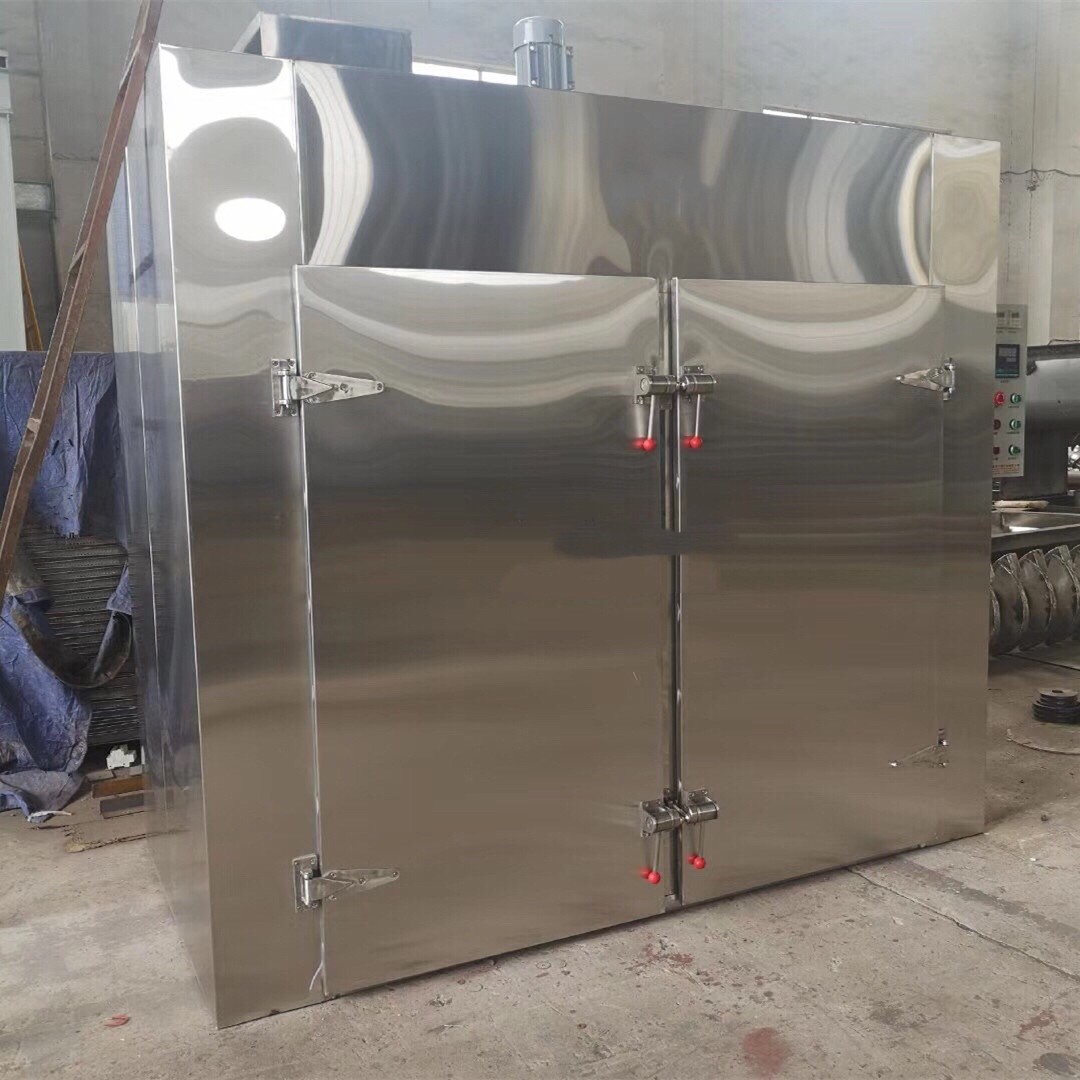

WKS Automatic Hot Air Oven Dryer
,Apple Fruit And Vegetable Dehydrator
,15KW Hot Air apple drying machine
Automatic Control Humidity Hot Air Circulating Vegetable Dryer Machine Dehydrator
Hot Air Oven Dryer
Application
The hot air circulation drying oven can be used for drying agricultural products, including fruits, vegetables, condiments, Chinese medicinal materials, drinks, etc.
Typical Raw Materials :
Fruit: wolf berry,red jujube,grape,lemon
Vegetable: red chili,potato,konjac,garlic
Beverages:rose,honeysuckle,chrysanthemum Condiments:pepper,anise
The above raw materials are just the regular materials with good comments from customers that we had applied to dry and this dryer also can be used in other fileds such as pharmacy chemical etc.
Technical parameters
| Model | Heater (kW) |
Fan (kW) |
Tray Qty. |
Tray & Trolley (mm) |
Trolley Qty. |
Dimensions (mm) |
Weight (kg) |
| WKS-1 | 6~9 | 0.45 | 24 | 640*460*45 950*700*1300 |
1 | 1400*1200*2000 | 400 |
| WKS-2 | 9~15 | 0.45 | 48 | 2 | 2300*1200*2000 | 600 | |
| WKS-3 | 15~30 | 0.9 | 96 | 4 | 2300*2200*2000 | 900 | |
| WKS-4 | 15~45 | 1.35 | 144 | 6 | 3660*2300*2000 | 1500 | |
| WKS-5 | 15~60 | 1.8 | 192 | 8 | 5000*2250*2100 | 2000 |
Features about drying machine
Eletricity as power supply
Low noise drying
Adjusted temperature and time
Important parts about Oven dryer WKS-2

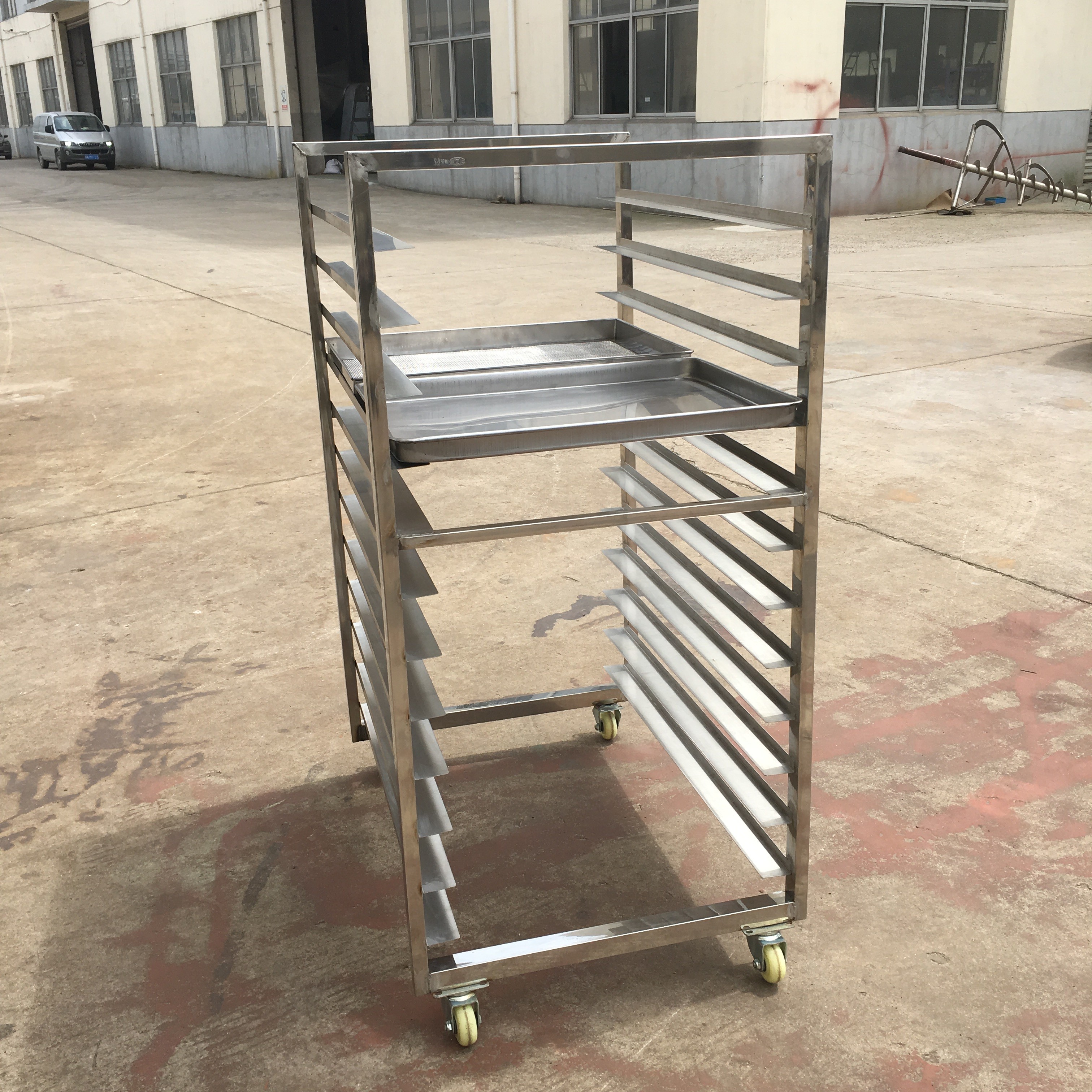

2*Trolleys

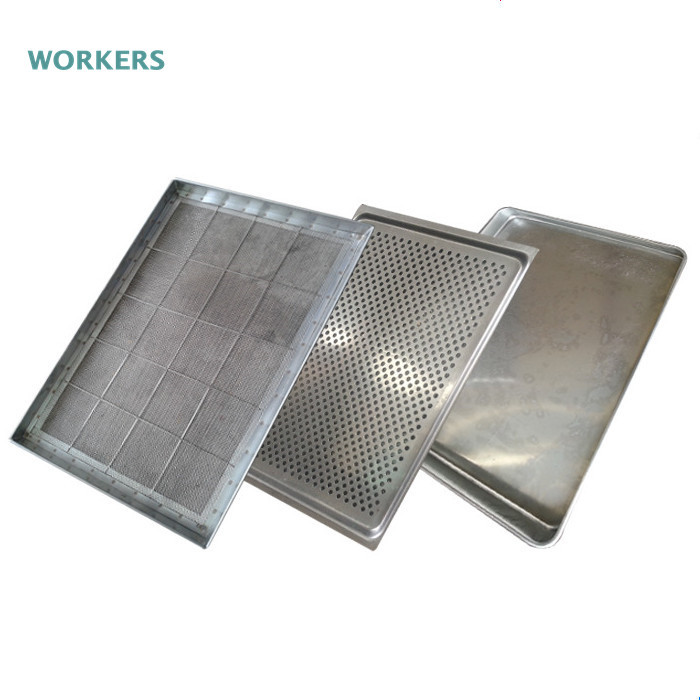

48*Trays
Dimension 2300*1200*2000
Standard power distribution auxiliary heat(9-15kw)

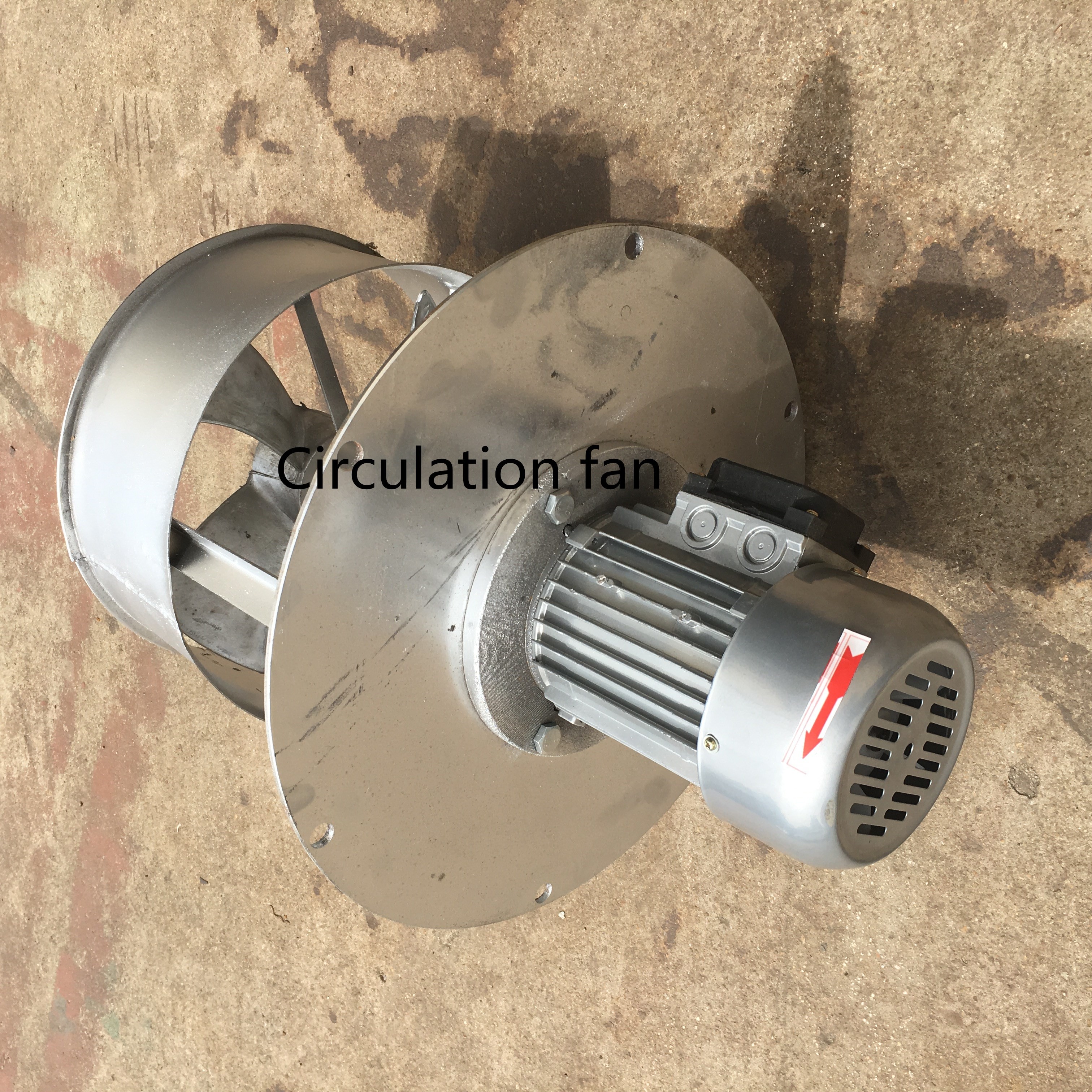

1*Circulating hot air blower
1*Moisture release outlet
1*fresh air inlet
1*control panel
Who we are
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing, and sales of various industrial drying machines, fruits & vegetables, and food processing machines.We have a modern standard workshop, covering over 2,000 square meters; WKS has more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences.Over ten years extensive experience in design and production;Innovative engineers, well trained technicians;A full-time after-sales service team;Guaranteed quality with competitive prices.
-
