Coffee Extract Fish Meal Pressure Spray Dryer Granulator OEM ODM

Pressure spray dryer drying machine for coffee extract Fish meal ​

Pressure Spray Dryer

Descriptions:
The liquid or paste raw material is spraied into minuty liquid drop by pressed spraier draw assistance from pressure of isoulate pump, and quickly drying through amplly heat exchange.(10~90sec.) at last, the powder or small granule is finished.

Features:
1. The dry speed is fast and suitable for drying thermal sensitivity material particularly.
2. he finished product is ball granile with uniform size. Its fluidity and solubility are good. The purity of product is high and its quaity is good.
3. It applied scope is wide. According to the characteristics of raw material,it can use hot air to dry and can also use cool air to granulate. It has strong adaptability to raw materials.
4. Its operation is simple and stable and its control is simple and convenient and is easy to realize automatic operation.

Applications:
It is suitable for liquid of foodstuff,pharmaceutical,chemical industry,dyestuff,ceramics,agrochemicals,plastic and so on.

Technical parameters

Features

1. High collecting rate, no stick on the wall.

2. Fast drying, high efficiency, energy saving.

3. Particularly applicable for heat sensitive material

4. Good for raw materials that are large in viscosity, paste material.

5. The nozzle is simple in structure, convenient in maintenance and low cost in operation.

6. The machine heating system is very flexible, we can configure it based on the customer site conditions such as steam, electricity, gas furnace and etc.

Control systems have more choices, such as push button, HMI+PLC and etc.

Brief Introduction

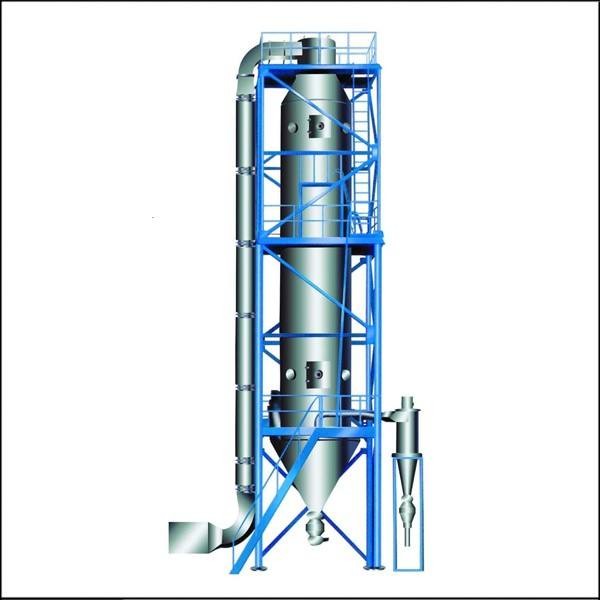

The material is sprayed into fine mist by nozzle on the top of tower, Follow the heat wind, the material is dried. The machine with high collection rate and no stick on the wall characteristic. Save energy, high efficiency, Particularly suitable for heat sensitive material.it is widely used in food, dyestuff, chemical industry and etc

Working principle

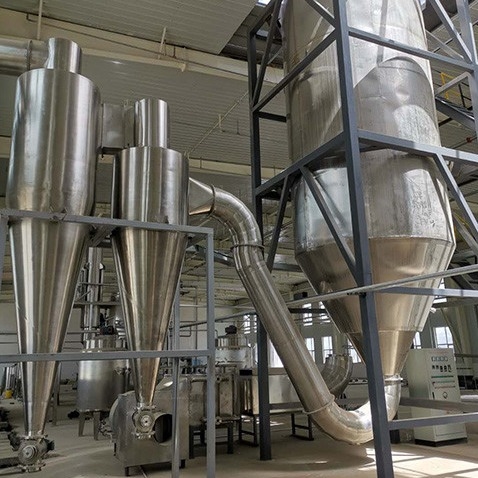

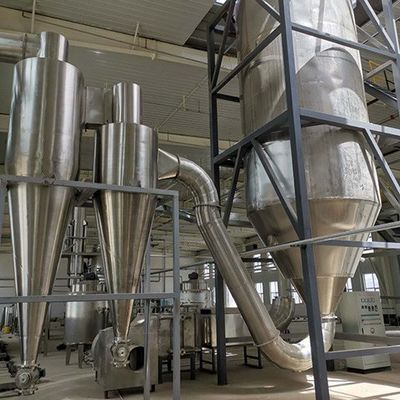

The liquid material is pumped in through diaphragm pump. The liquid material can be atomized into tiny droplets. Then it gathers with hot air falling off. Most parts of powder material will be collected from the outlet of the main tower bottom. For the fine powder, we will still continuously collect by the cyclone separator and cloth bag filter.

APPLICATION

Chemical industry: Sodium Fluoride (Potassium ), Alkaline Dyestuff And Pigment,Dyestuff Intermediate, Mn3o4, Compound Fertilizer, Formic Silicic Acid, Catalyst, Sulphuric Acid Agent, Amino Acid,White Carbon, and etc.

Food Industry: Fatty Milk Powder, Protein, Cocoa Milk Powder, Subsitute Milk Powder,Egg White (Yolk), Food And Plant,Oats,Chicken Juice, Coffee, Instant Dissoluble Tea ,Seasoning Meat,Protein ,Soybean,Peanut Protein, Hydrolysate, Sugar,Corn Syrup,Corn Starch,Glucose, Pectin,Malt Sugar, Sorbic Acid Potassium, and etc.

Pharmaceutical Industry: Chinese Traditional Medicines, Pesticide, Antibiotic, Medical Drinking Agent,and etc.

Plastics and Resin: AB, ABS Emulsion, Uric Acid Resin, Phenolic Aldehyde Resin, Urea-Formaldehyde Resin, Formaldehyde Resin, Polythene, Poly-Chloroprene, And etc.

Detergent: Common Washing Powder,Advanced Washing Powder,Soap Powder, Soda Ash, Emulsifier, Brightening Agent, Orthophosphoric Acid, and etc.

Ceramic: Aluminium Oxide, Ceramic Tile Material, MagnesiumOxide, Talcum, and etc. Other: Calmogastrin, Hime Chloride , Stearic Acid Agent, and etc.
