High Efficiency Soy Protein Pressure Granulator Dryer SUS316 Spray Drying Machine
Product Details
Soy Protein Pressure Granulator Dryer
,High Efficiency Pressure Granulator Dryer
,SUS316 Spray Drying Machine
High Efficiency Soy Protein Pressure Spray Granulator Dryer Drying Machine
Pressure Spray Dryer

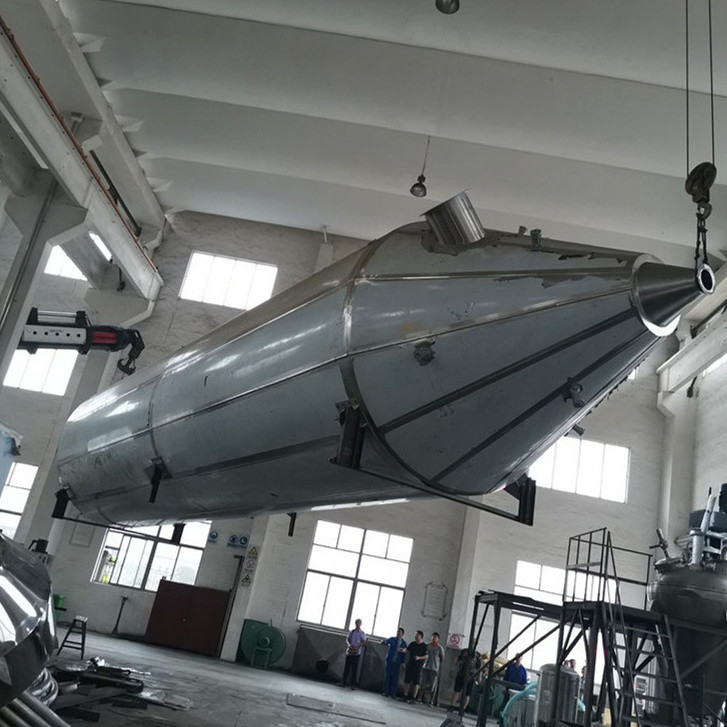

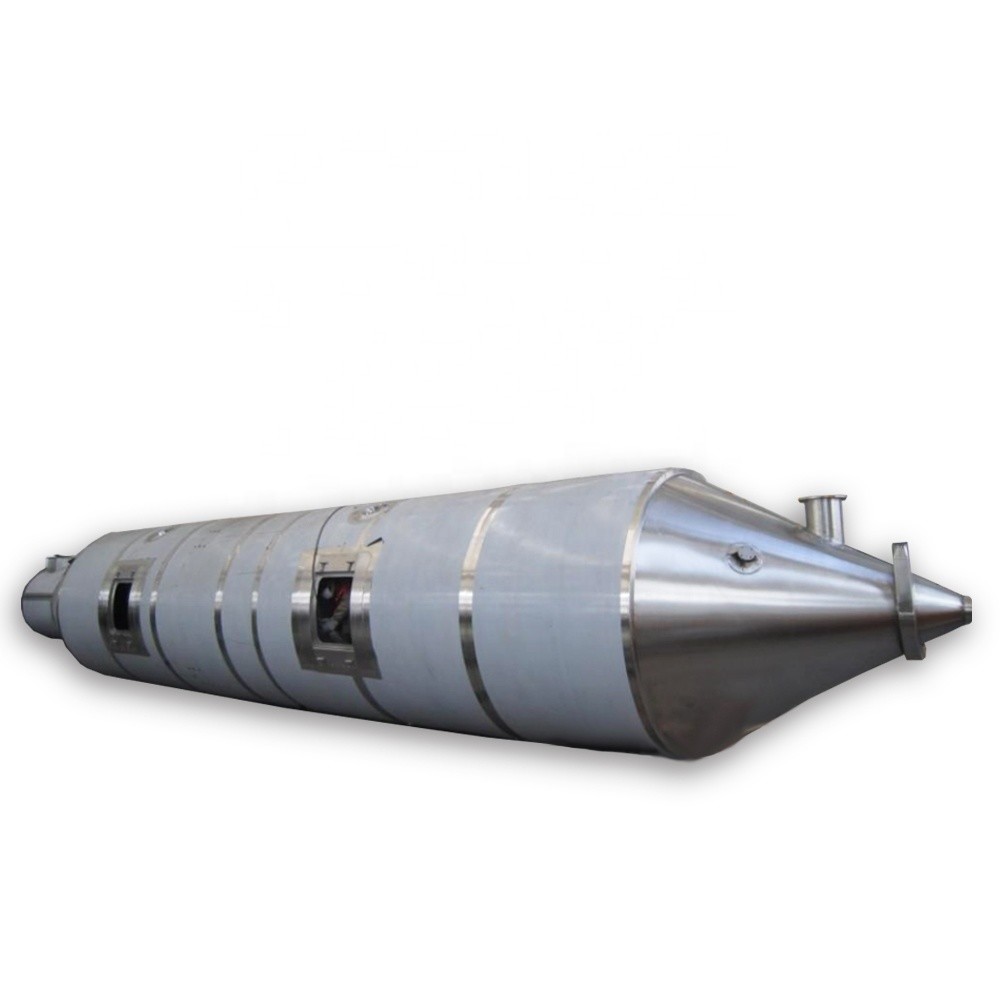

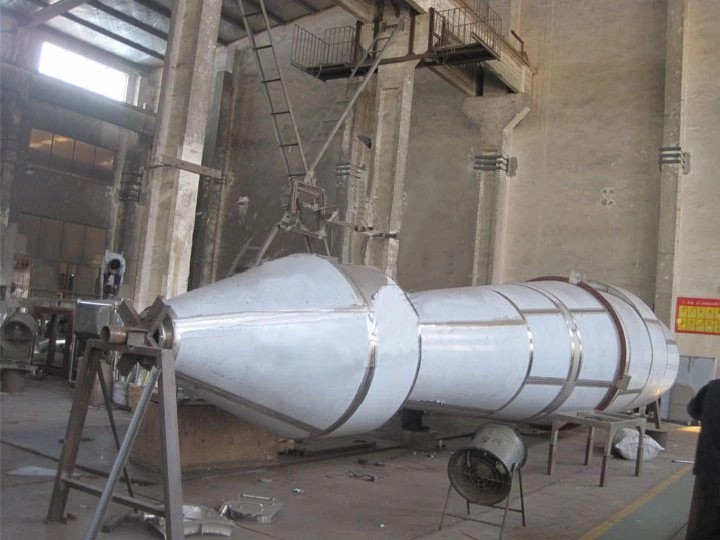

YPG Pressure Spray Dryer Description
YPG pressure spray dryer is suitable for solution, suspension, slurry, paste material, etc. Liquid material is atomized to small fog drops. And fog drops contact with hot air directly in the drying tower. Moisture content is evaporated instantly. So spray dryer features high efficiency, high mass transfer area, and short drying time, in general it is 5~30 seconds. Operating temperature can be adjusted according to actual situation, in general inlet air temperature is 150~500°C. And its automation control degree is control, environment solution environment can be solved.
Technical parameters
| Model | YPG-25 | YPG-50 | YPG-100 | YPG-150 | YPG-200 | YPG-300 | YPG-500 | YPG-1000-2000 | |
| Water evaporation kg/h | 25 | 50 | 100 | 150 | 200 | 300 | 500 | The index can be affirmed inaccordance with particle conditions. | |
| DiaphragmPump | Power kW | 0.35 | 4 | 7.5 | 11 | 15 | 22 | 30 | |
| Pressure Mpa | lt can be regulated from 0.6-5, usually, it is between 1-3 when in operation | ||||||||
| Heating way | Electricity | Electricity+steam | Electricity+coal(oil) hot air furnace | ||||||
| Diameter of tower mm | 1300 | 1800 | 2400 | 2600 | 2800 | 3200 | 3800 | ||
| Total height of equipment mm | 7800 | 9200 | 11600 | 14000 | 15300 | 17100 | 19000 | ||
YPG Pressure Spray Dryer Application
Foodstuff industry: Amino acid and similar substance, flavoring, protein, starch, dairy products, instant coffee, fish powder, meat powder, tomato paste and so on.
Pharmaceutical Industry: Chinese patent medicine, agrochemical, antibiotics, medical drinking agent and so on.
Chemical industry: Organic catalyst, resin, synthetic washing powder, thiamin, dyestuff, intermediate of dyestuff, intermediate of dyestuff, white carbon black, graphite, ammonium phosphate and so on.
Ceramic industry: Magnesium oxide, kaolin, metallic oxide, dolomite and so on.
YPG Pressure Spray Dryer Features
1. The machine has high efficiency to collect dust
2. Without the phenomenon of adhering wall
3. Energy saving and high efficiency
4. Particularly it is suitable for thermal sensitive material
5. Short drying time
-
