Micronized Powder Superfine Grinding Machine

Superfine Grinding Machine

Micronized Fine Powder Grinder Pulverizer Making Machine Superfine Grinding Machine

Introduction

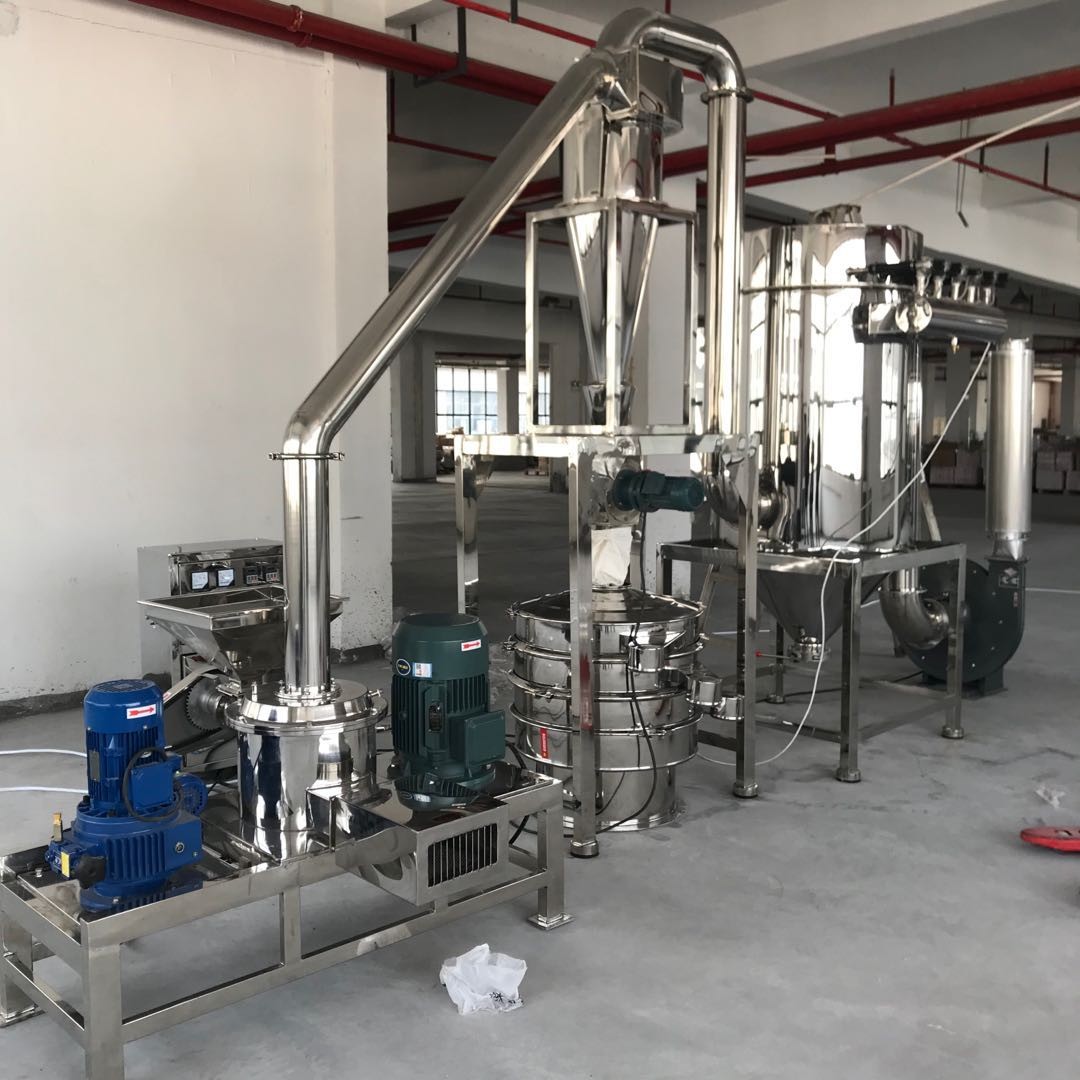

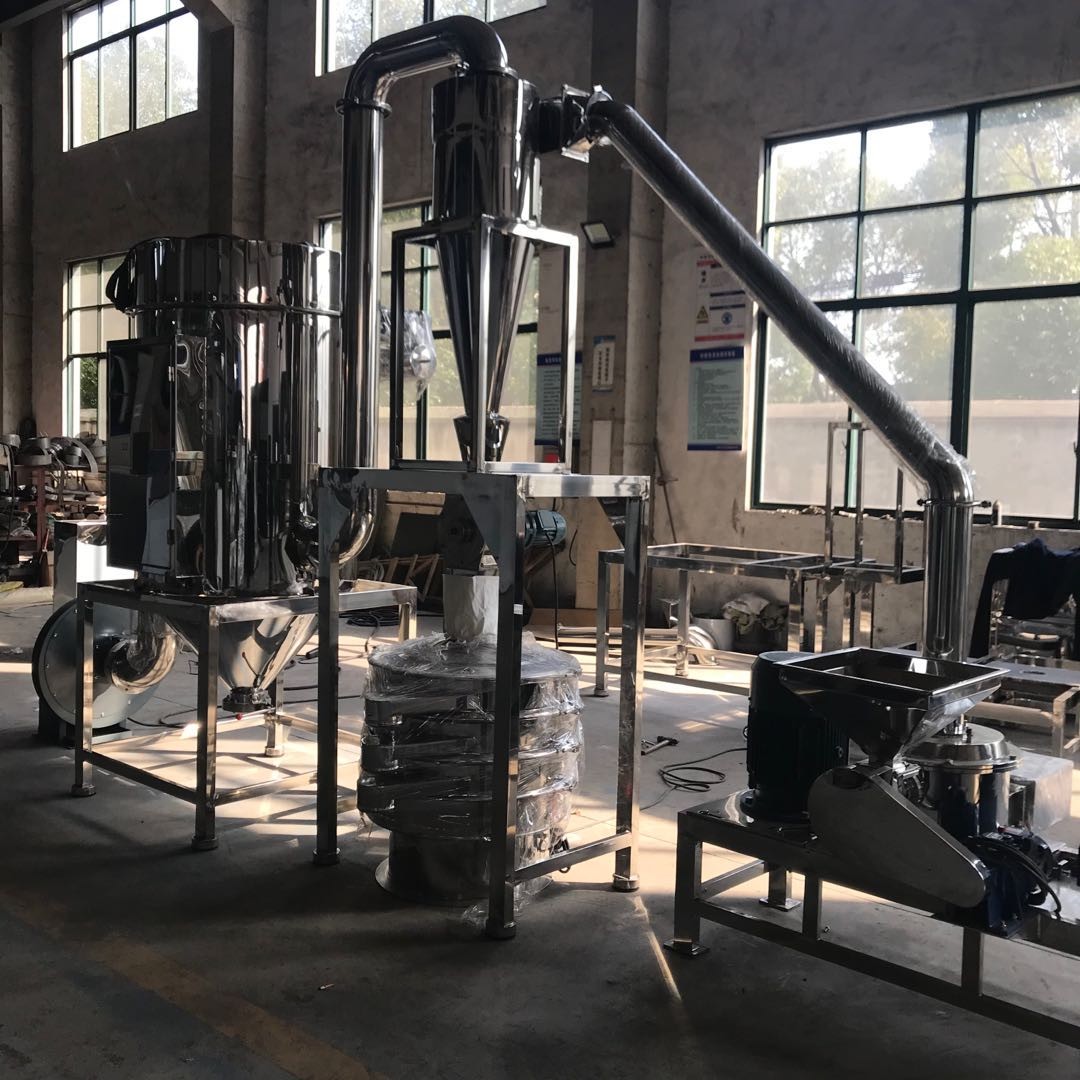

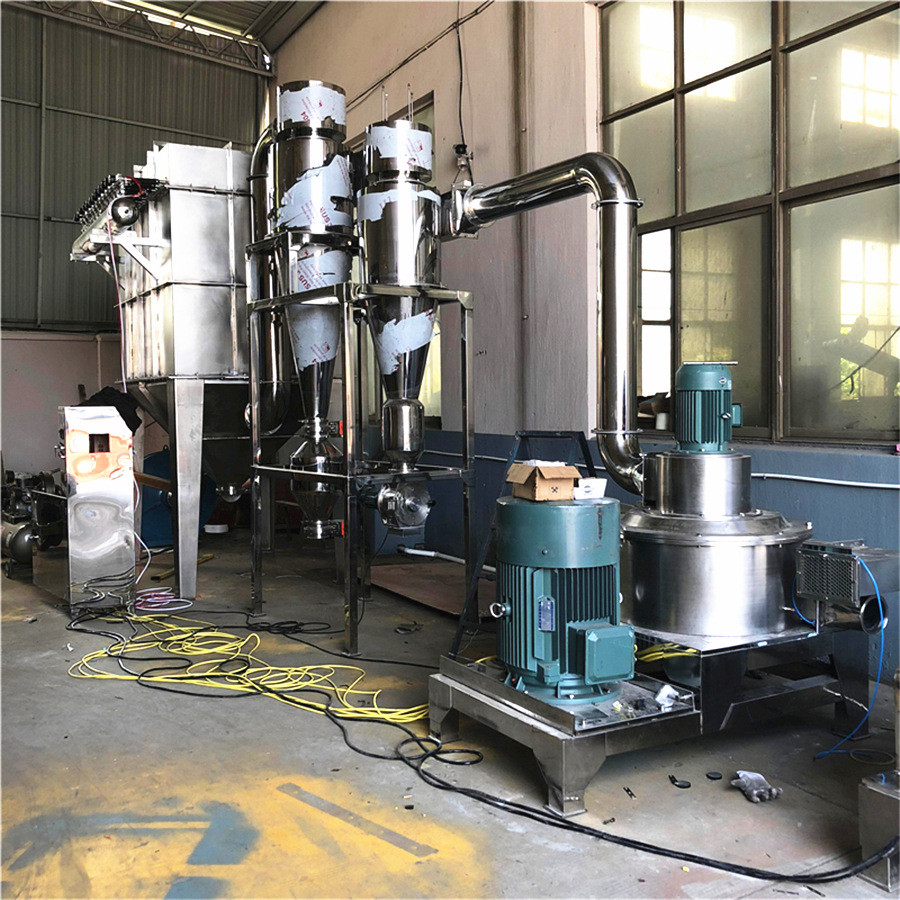

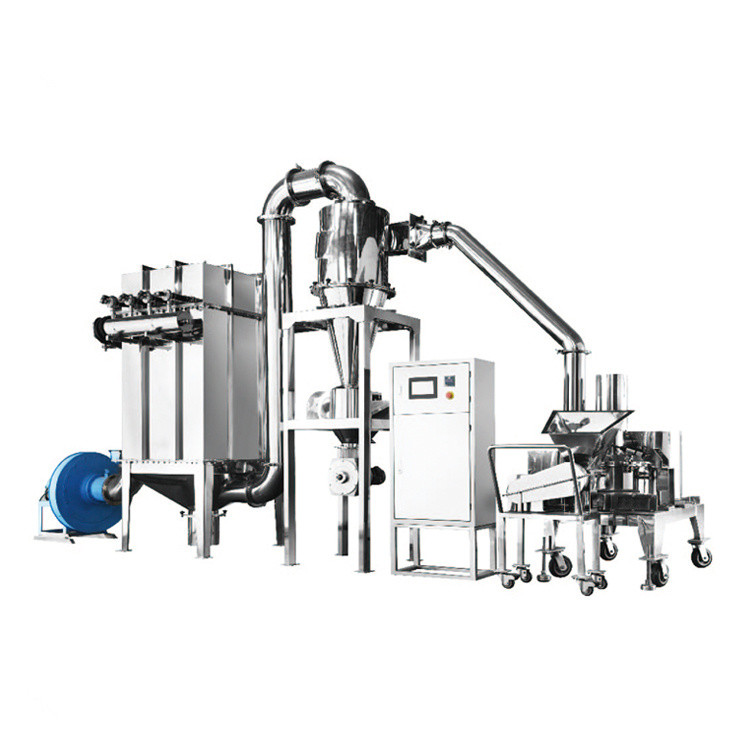

WKS series of ultra-fine grinding unit composed of the host, auxiliary, electronic control box, with wind selection, no screen, no mesh, uniform size, fineness of stepless adjustment.The production process is continuous.No temperature rise during grinding operation, suitable for a variety of heat-sensitive materials, particularly suitable for grinding fibrous material and material with a certain grease.Its comprehensive performance has reached the international advanced level, the machine is widely used in pharmaceutical, chemical, food, minerals (such as: traditional Chinese medicine., Food., Chemical., Health., Roots.), leaves, nuts, corn, pepper, wheat, garlic, star anise, cinnamon, dehydrated vegetables, hawthorn, dried ginger, garlic, sugar, saccharin, shrimp, pumpkin powder, seasoning).The machine has a crushing unit, a cyclone separator, a pulse dust box and an induced draft fan. The material enters the crushing chamber from the feeding hopper and is pulverized by the high-speed rotating hammer. You can adjust the distance between the classifying knife and the grading plate to achieve the required fineness, and the pulverized material enters by the centrifugal force and the effect of the induced draft fan. Powder is collected from the discharge mouth controlled by a discharge fan, and the dust enters the pulse dust box and is filtered through the filter cartridge for recycling.The whole machine is made of 304 stainless steel material, and there is no dust flying during the crushing process.

Technical Parameters

Installation operation and use
1. After unpacking, first carefully check whether the equipment is damaged during transportation, then put the main engine and auxiliary electrical control devices in place, and then connect the pipes of the main and auxiliary machines. Seals are required for each pipe opening flange assembly. Apply "Iron Anchor 09" liquid sealant to ensure the tightness of the pipeline. All single machines and pipeline flanges are connected with grounding wires and grounded to avoid dust explosion caused by static flint.
2. Before the trial operation of each single machine, it is necessary to check whether there are metal objects in the machine. Discharge if any. Whether the bolts are tight, the tightness of the belt, the reliability of the guard, etc.
3. Boot sequence:
Start each motor in the following order: discharge motor - induced draft fan - host - grading motor - screw feeding motor.
4. After the empty car runs for 5 minutes, the operator carefully observes various instruments on the control cabinet, and the material can be fed only after the no-load current is stable. After feeding, the current is not allowed to exceed the rated value of 8-12 amperes (the specific current rating is determined according to different materials), otherwise the feed rate should be reduced to ensure that the discharge motor can work regularly during normal operation.
5. Can be stopped in the following order:
Screw feeding motor - running for 5 minutes, the main machine can be stopped - grading motor - pulse - induced draft fan - discharge motor.
Manipulating the stepless speed change handle of the classifier can change the rotation speed of the classification wheel, and at the same time achieve the fine adjustment of the product. If the particle size of the product is required to be fine, the rotation speed can be increased;
