Product Details:
|
| Name: | Superfine Grinding Machine | After-sales Service Provided: | Online Support |
|---|---|---|---|
| Capacity: | 30-800kg/h | Voltage: | 220V/380V Or Customized |
| Power: | 22kW | Function: | Powder Grinding |
| Rotating Speed: | 3800RPM | ||
| High Light: | 3800RPM Universal Pulverizer Grinding Machine,Pulverizer Grinding Machine Air Classifier,Ultrafine universal pulverizer |
||
Superfine Grinding Machine
Ultrafine Universal Pulverizer Grinding Machine Air Classifier for Polyethylene
The main purpose
This machine is composed of three parts: main machine, auxiliary machine and electric control box. The production process takes place continuously. This machine is widely used for material crushing in pharmaceutical, chemical, food and other industries.
Technical Parameters
| Model | WKS-10 | WKS-20 | WKS-30 | WKS-60 |
| Capacity (kg/h) | 10-200 | 20-400 | 30-800 | 50-1200 |
| Input size (mm) | ≤10 | ≤12 | ≤12 | ≤12 |
| Output size (mesh) | 80-320 | 80-450 | 80-450 | 80-450 |
| Total installation power (KW) | 11.5 | 22.5 | 46 | 84.15 |
| Rotating speed (RPM) | 5800 | 5800 | 3800 | 3200 |
| Installation dimension (mm) | 5410x1660x2500 | 5500x1800x3100 | 9000x2200x4000 | 9000x2700x5280 |
| Gross weight (kg) | 850 | 1200 | 1500 | 3200 |
Working Principle
Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be impacted by high speed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be milled into fine powder. The milled powder would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel,coarse powder and fine powder would be separated. Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

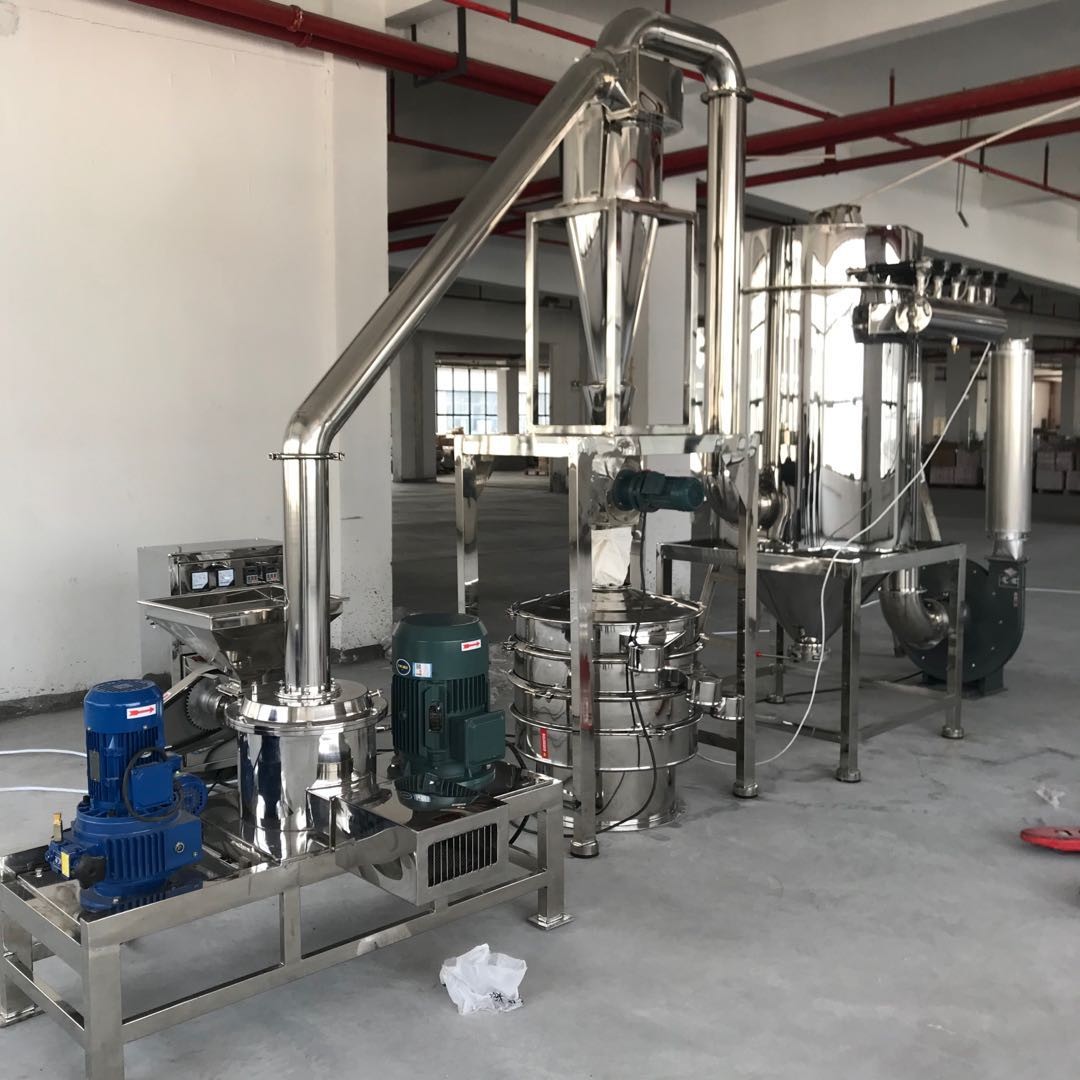

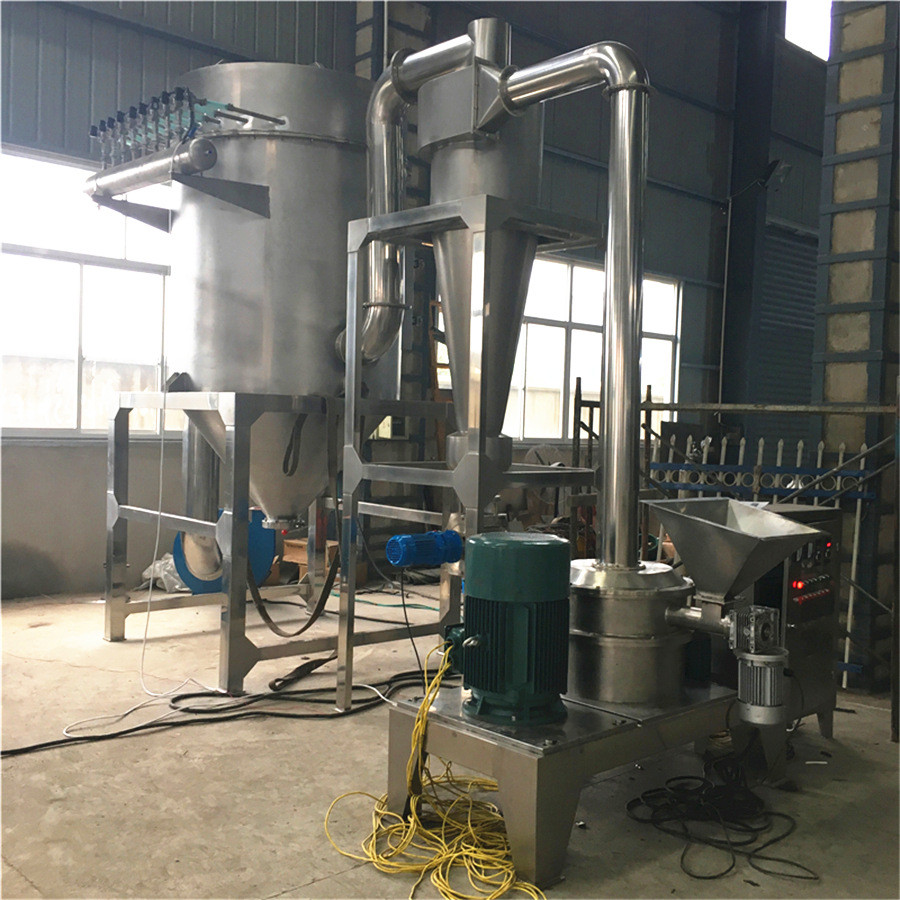

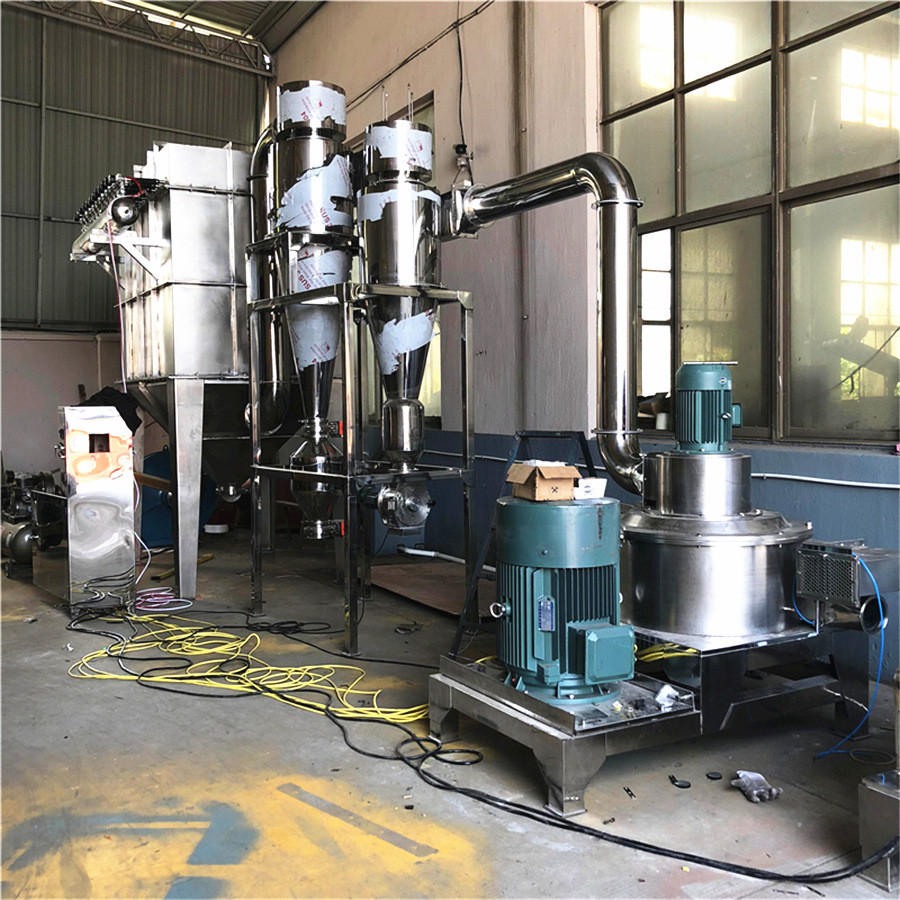

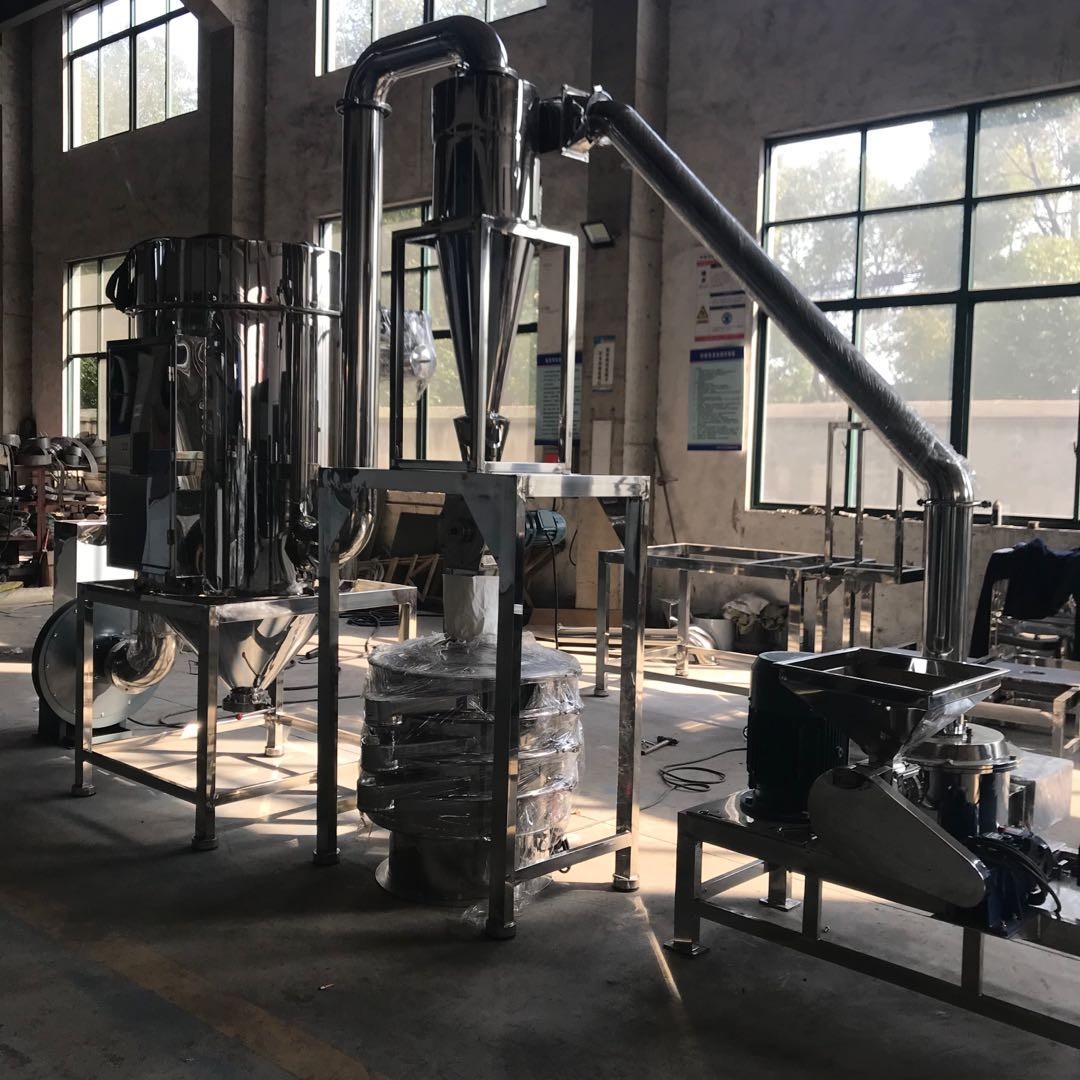

Design and supply of a Complete Milling system for the production .This includes design and supply of all ancillary items necessary for proper operation of the offered equipment including, but not limited to:
1. Feed Bin and Feed Screw
2. Pulverizing Mill
3. Cyclones
4. Bag filters/pulse dust collector with rotary valve
5. Draft Fan
6. Pipes /bracket
7. One product collection systems with rotary valve
8. Electrical Cabinet
