Product Details:
|
Name: | Horizontal Ribbon Mixer | Voltage: | Customized,380V,220V/380V,All Countries Are OK,3 P AC208-415V |
---|---|---|---|
Warranty: | 1 Year | Mixer Type: | Ribbon,double Ribbon Blender |
Application: | Powder,Food Processing,Chemicals Processing,Medicine Processing,ribbon Blender Machine | Product Type: | Fertilizer,dry Powders,Detergent Powder,mixer,cosmetic |
High Light: | Detergent Horizontal Ribbon Mixer,Horizontal Ribbon Mixer 18.5KW,WKS horizontal ribbon blender |
Detergent Ribbon Mixer Blender Ribbon Mixer Horizontal Mixing Machine

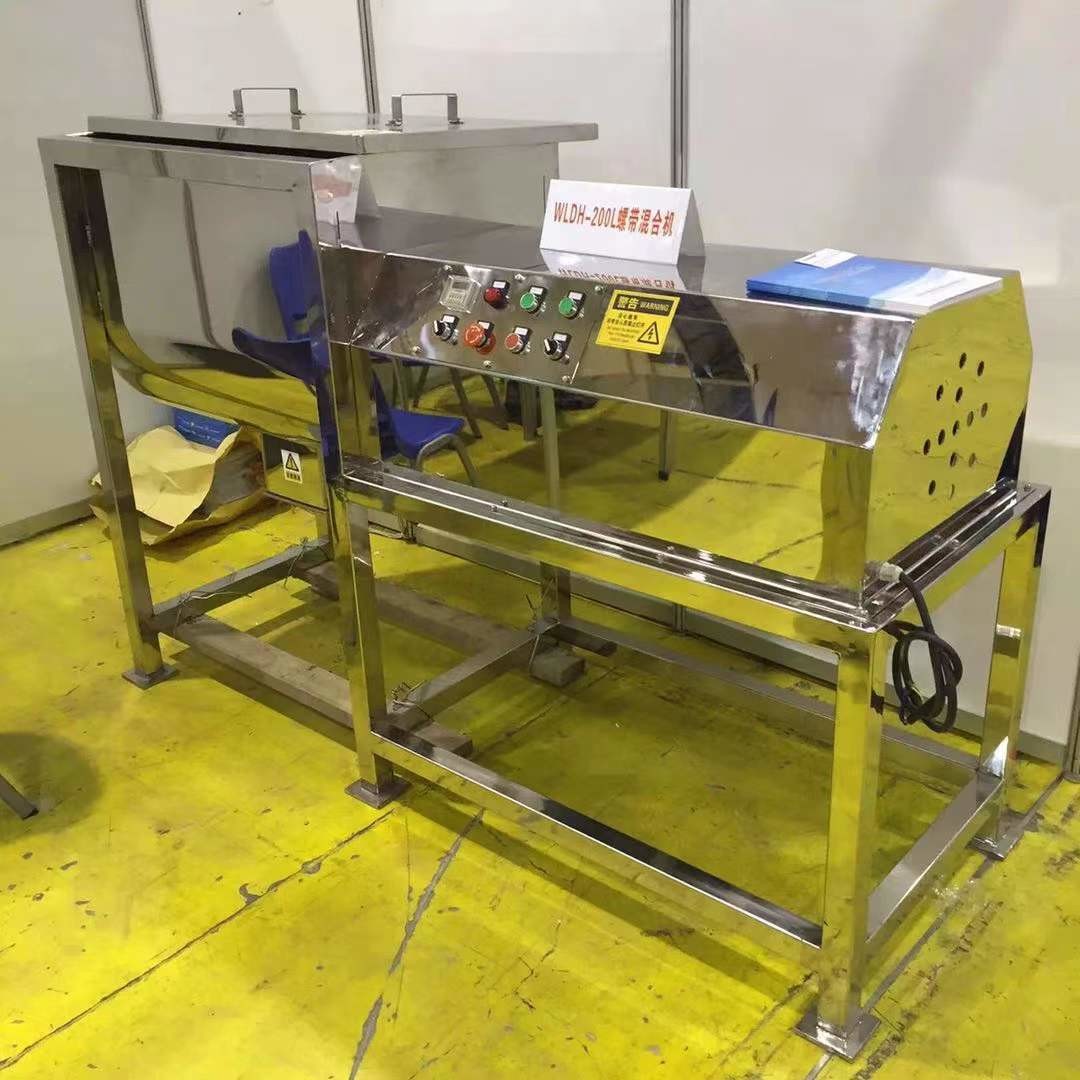

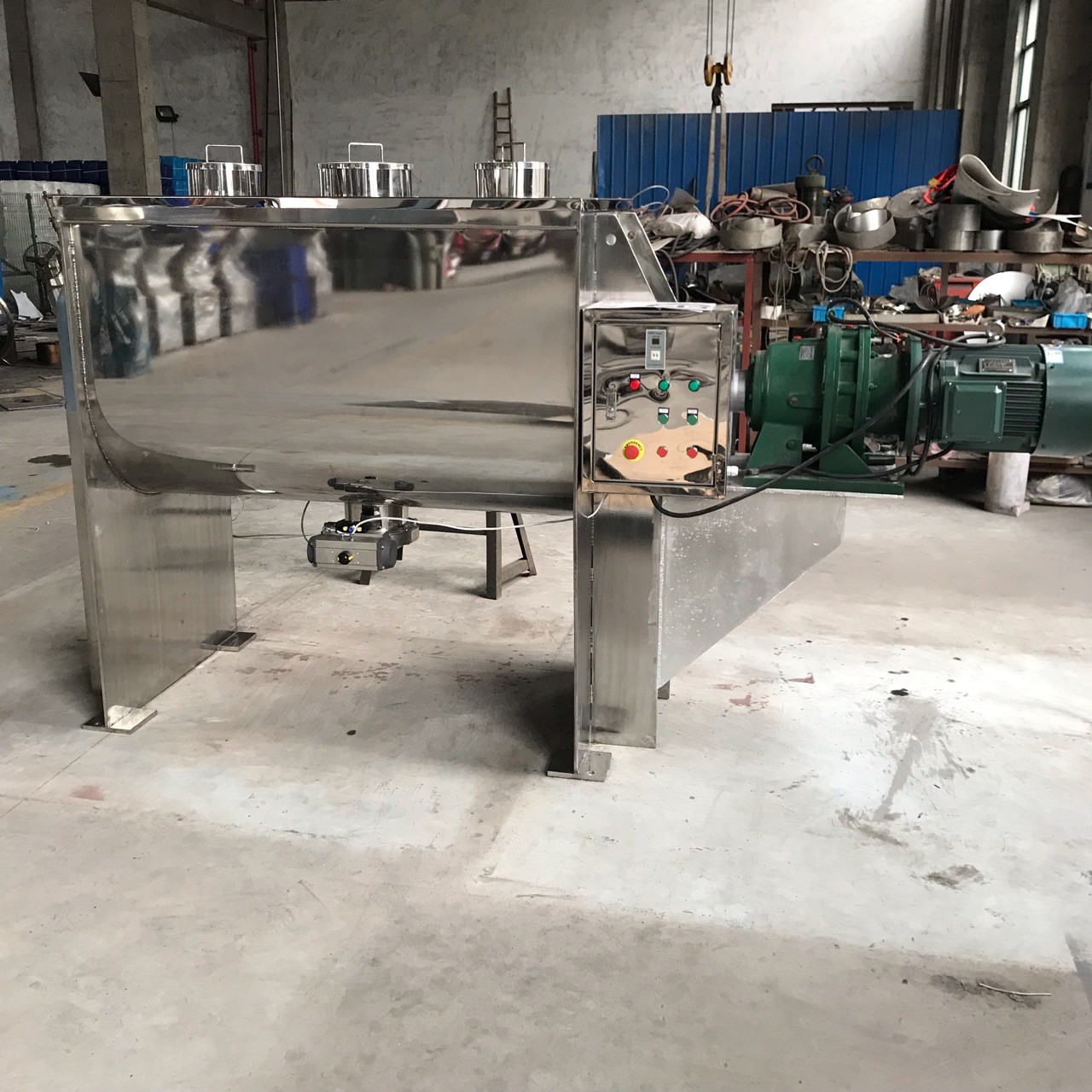

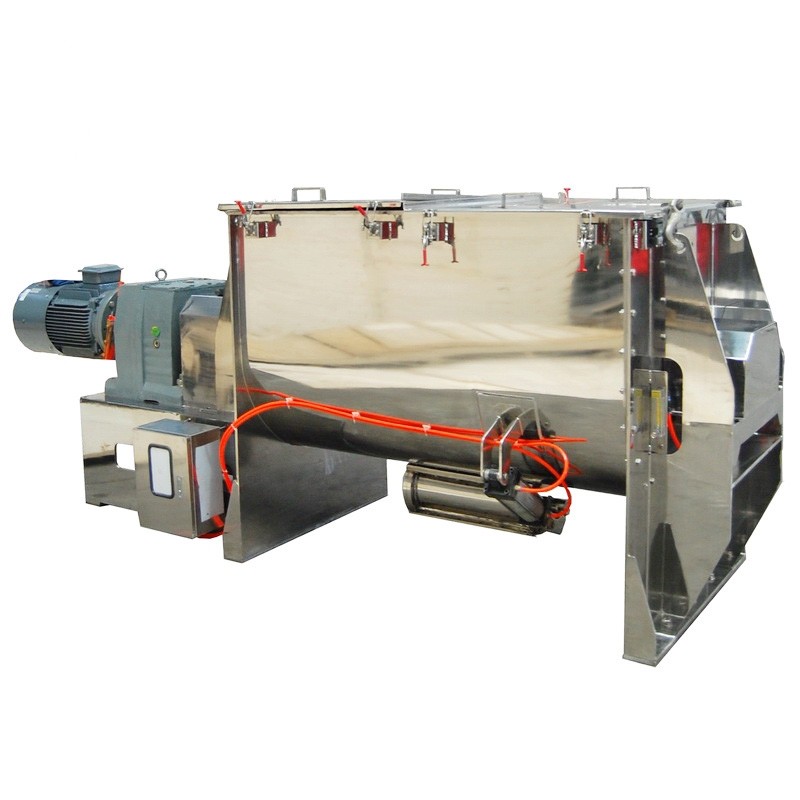

Horizontal Ribbon Mixer
Introduction
Horizontal double-ribbon mixer is suitable for mixing different kinds of powders, powder with a little bit liquid, and powder with tiny granule. It is widely used in powder material manufacturing process in many fields, like chemical, medicine, food and construction fields.
Main Features
1. Horizontal tank body, need small space but more capacity.
2. Dual screw structure-The inner screw push the material form central to sides and the outer screw push the material from sides to the center to make the material effective mixing.
3. Gear box drive the auger shaft , low noise and low malfunction, long using life.
4. U-Shape tank bottom, better for material discharge and cleaning.
5. Pneumatic cylinder to control the discharge exit.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer
6. Heating,cooling function can be realized.dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating
7. Customized ribbon blender available. dry powder ribbon mixer horizontal ribbon mixer ribbon mixer with heating.
Technical Parameters
Model | WLDH-0.5 | WLDH-1 | WLDH-2 | WLDH-3 | WLDH-4 | WLDH-6 |
Capacity (kg/batch) | 250 | 500 | 1000 | 1500 | 2000 | 3000 |
Volume (L) |
500 | 1000 | 2000 | 3000 | 4000 | 6000 |
Rotating (rpm) |
≤42 | ≤42 | ≤42 | ≤42 | ≤42 | ≤42 |
Power (kW) |
5.5 | 11 | 18.5 | 22 | 30 | 37 |
Dimension (cm) |
230*80*130 | 270*100*150 | 340*120*175 | 350*140*205 | 420*145*210 | 480*165*235 |
Weight (kg) |
1000 | 1500 | 2300 | 3200 | 4100 | 5200 |
Specifications Configuration
1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, differentmaterial can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2. The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.
3. High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.
4. Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.
5. Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.
6. Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacketsampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.
FAQ
1. Are you a factory?
A: Yes we are a factory with more than 10 years manufacturing experience.
2. I'm new in our industry,but I'm planing to set up a factory,what can I| do?
A:We will design the most suitable proposal based on your actual situation, such as the daily production, raw material formula, factory layout, etc.
3. How long is your warranty?After warranty,what if we encounter problem about the machine?
A: Our warranty is one year. After warranty we still offer you lifetime after-sales service, anytime you need we are there to help. If the problem is easily to solve, we will shoot asolution video for you. If video doesn't work out, we will send engineer to your factory.
4. How can you control the quality before delivery?
A: First, our component/spare parts providers test their products before they offer com-ponents to us. Besides, our quality control team will test machines performance or running speed before shipment. We would like to invite you come to our factory to verify machines yourself. If your schedule is busy, we will take a video to record the testing procedure and send the video to you.
5. Are your machines difficult to operate? How do you teach us using the machine?
A: Our machines are fool-style operation design, very easy to operate. Besides, before delivery we will shoot instruction video to introduce machines' functions and to teach you how to use them. If needed engineers are available to come to your factory to help install machines, test machines and teach your staff to use the machines.
6. Can I come to your factory to observe machine running?
A: Yes, customers are warmly welcome to visit our factory.
7. Can you make the machine according to buyer's request?
A: Yes, OEM is acceptable. Most of our machines are customized design based on cus-tomer's requirements or situation.
Company introduction
Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing and sales of various industrial drying machines, fruits & vegetables and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China.
Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria and South Africa, etc.
WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices and wholehearted services.
Welcome to visit us to start the cooperation!
