Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein

Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein
Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein
Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein

Large Image :  Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein

Product Details:
Place of Origin: CHINA
Brand Name: WKS
Certification: CE
Model Number: LPG-25
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: about 30 working days
Payment Terms: T/T
Supply Ability: 10 SETS PER MONTH

Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein

Description
Name: High Speed Centrifugal Spray Dryer Heat Source: Gas Or Electric Or Steam Heating
Capacity: 25kg/h Application: Liquid Form Material, Extracts
Installation: Engineer Guide Control: PLC Touch Screen/button Type
Inlet Air Temperature: ≤ 350°C Material: Stainless Steel
High Light:

High Speed Centrifugal Spray Dryer 25kg/h

,

High Speed Centrifugal Spray Dryer OEM

,

Spray Dryer For Milk Whey Protein

Large Capacity Centrifugal Spray Dryer Drying Equipment for Milk Whey Protein



High Speed Centrifugal Spray Dryer



Introduction

The spray dryer is one of the continuous atmospheric dryers. The liquid material is sprayed with a special device to form a mist and is dried in contact with hot air. For the drying of some heat-sensitive liquids, suspensions, and viscous liquids, such as milk, eggs, tannins, and drugs. Also used for drying fuels, intermediates, soap powder, and inorganic salts.



Working Principle

The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a finely atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.





Technical parameters

Specification LPG-5 LPG-25 LPG-50 LPG-100 LPG-150
Inlet temp. (℃) 140-350
Outlet temp. (℃) 80-90
Spray form High speed centrifugal atomization
Water evaporation(kg/h) 5 25 50 100 150
Atomizer speed(rpm) 25000 22000 21500 18000
Diameter of atomizing disk(mm) 50 120 150
Electric heating power(kw) 9.6 31.5 60 81 99
Recovery rate of dry powder (%) 99
Occupied length(m) 1.6 4 4.5 5.2 7
Occupied width (m) 1.1 2.7 2.8 3.5 5.5
Height of Tower(m) 1.75 4.5 5.5 6.7 7.2
Lifting height of nozzle(m)   2.5 2.5 3.2 3.2



Product Features

High-speed drying: the surface area of liquid material is greatly increased after atomization, achieving instantaneous evaporation of 95% -98% water in the hot air flow, drying time only takes a few seconds, especially for heat-sensitive materials

Products achieve good uniformity, mobility, and solubility, and also achieve purity, good quality. The production process is simplified and the operation control is convenient. For liquid materials with the moisture content of 40-60% (special materials up to 90%) can be dried into powder products just with one time, do not need grinding and screening after drying, reduce production processes and improve product purity. The product size, bulk density, moisture, in a certain range can be adjusted by changing operating conditions, control and management are very convenient.

The air is filtered and heated into the top air distributor of the dryer, and the hot air enters the drying chamber evenly in a spiral fashion. The material liquid is sprayed into a finely atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.



Application
Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.

Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica, and so on.

Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.

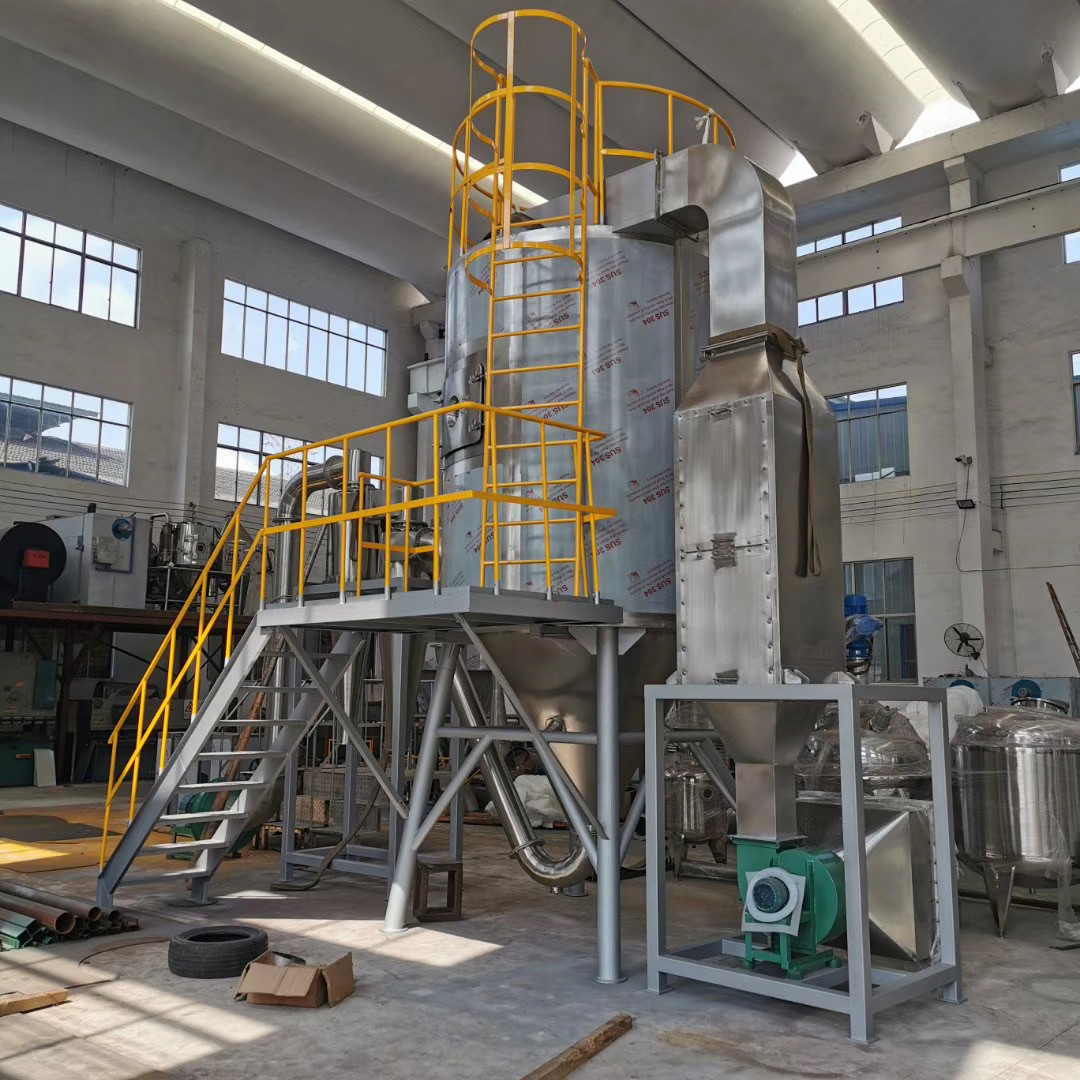

Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein 0

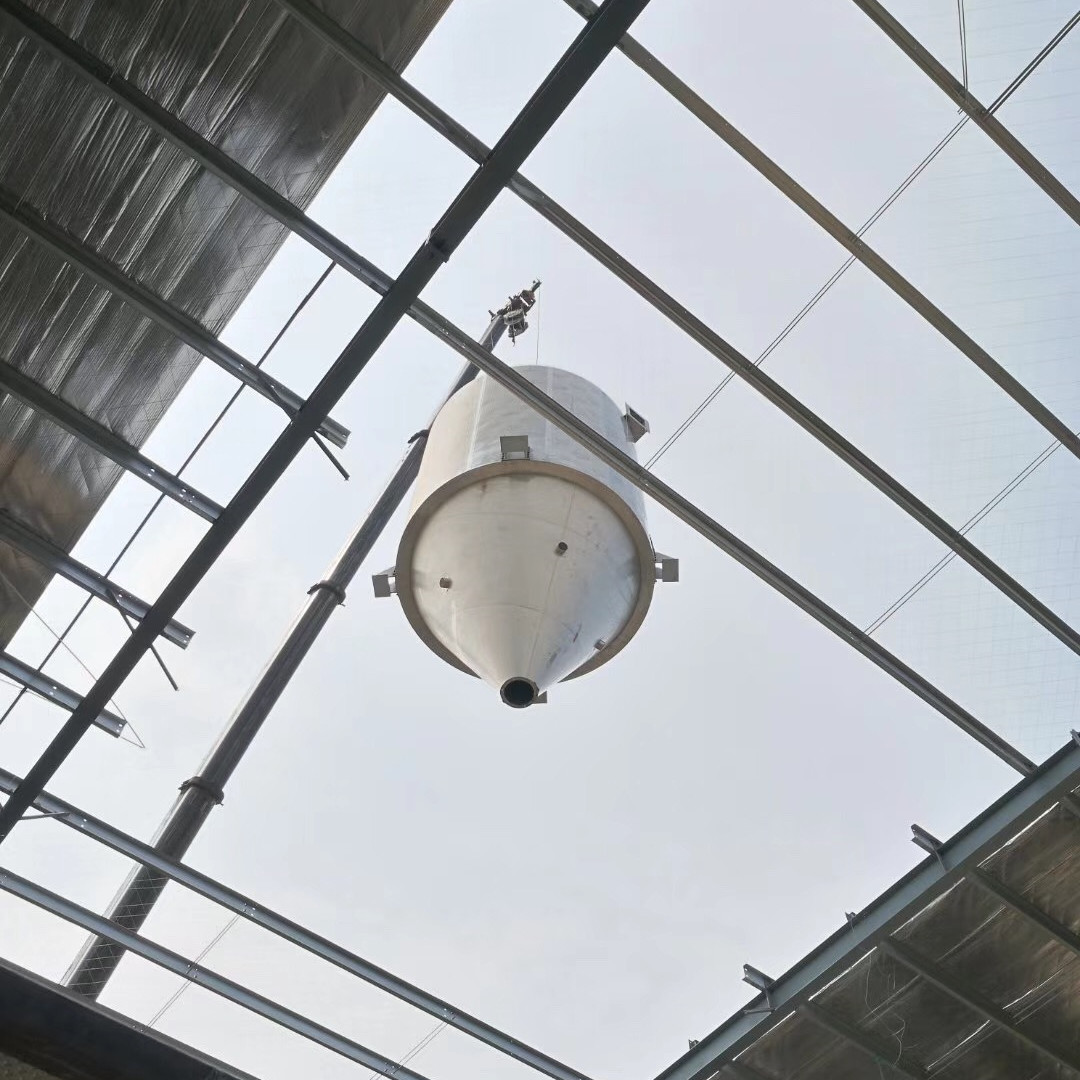

Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein 1

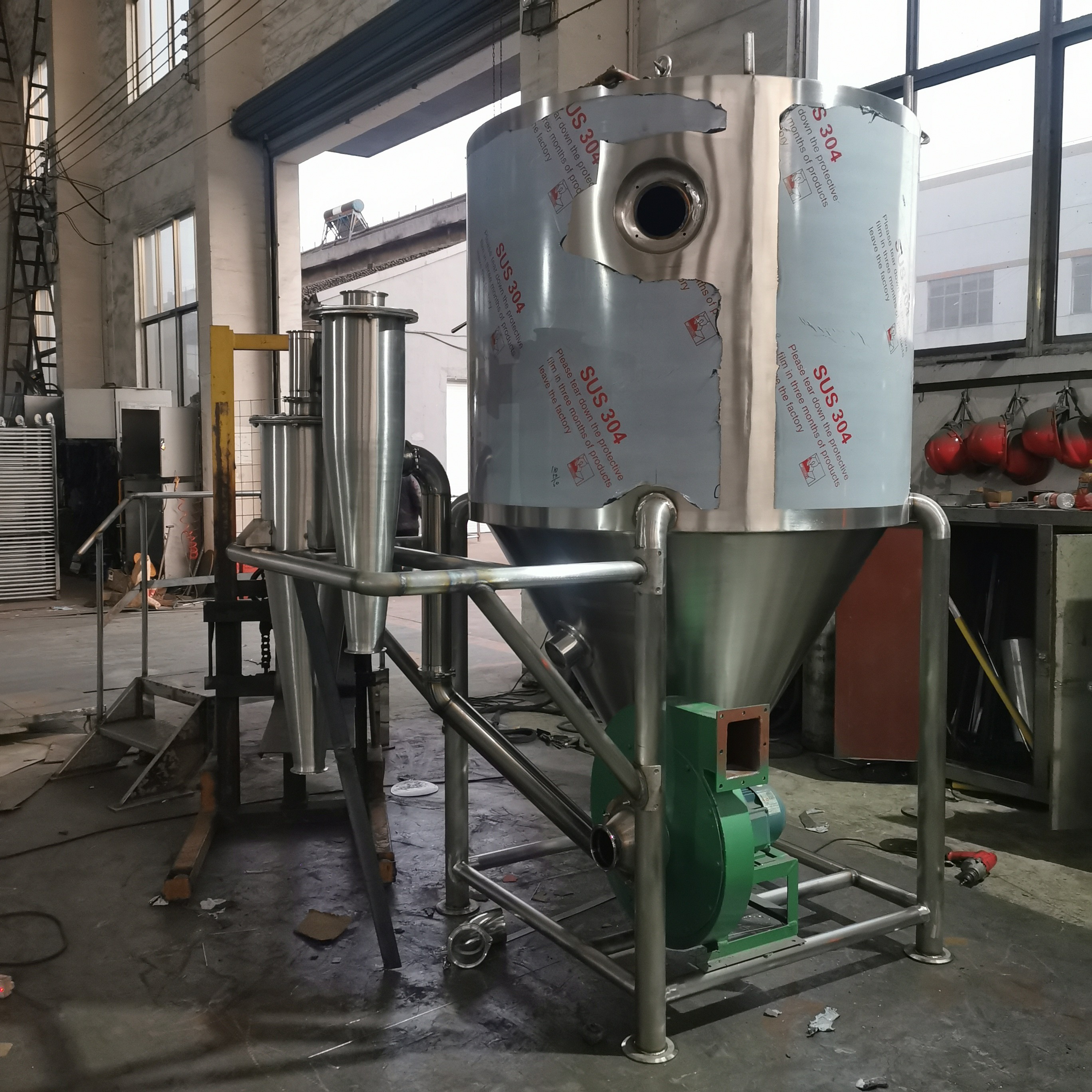

Large Capacity High Speed Centrifugal Spray Dryer For Milk Whey Protein 2
