Product Details:
|
Name: | Universal Crusher | Capacity: | 100-1000kg/h |
---|---|---|---|
Material: | 304 Stainless Steel | Voltage: | 110V-600V |
Fineness: | 2-120 Mesh | OEM ODM: | YES |
High Light: | Micronized Kava Hammer Mill Grinder,1000kg/h Spice salt grinder machine,masala powder grinding machine |
Dry masala micronized powder pulverizer kava hammer mill food grinder spice crusher salt chili grinding herb pulverizing
Introduction

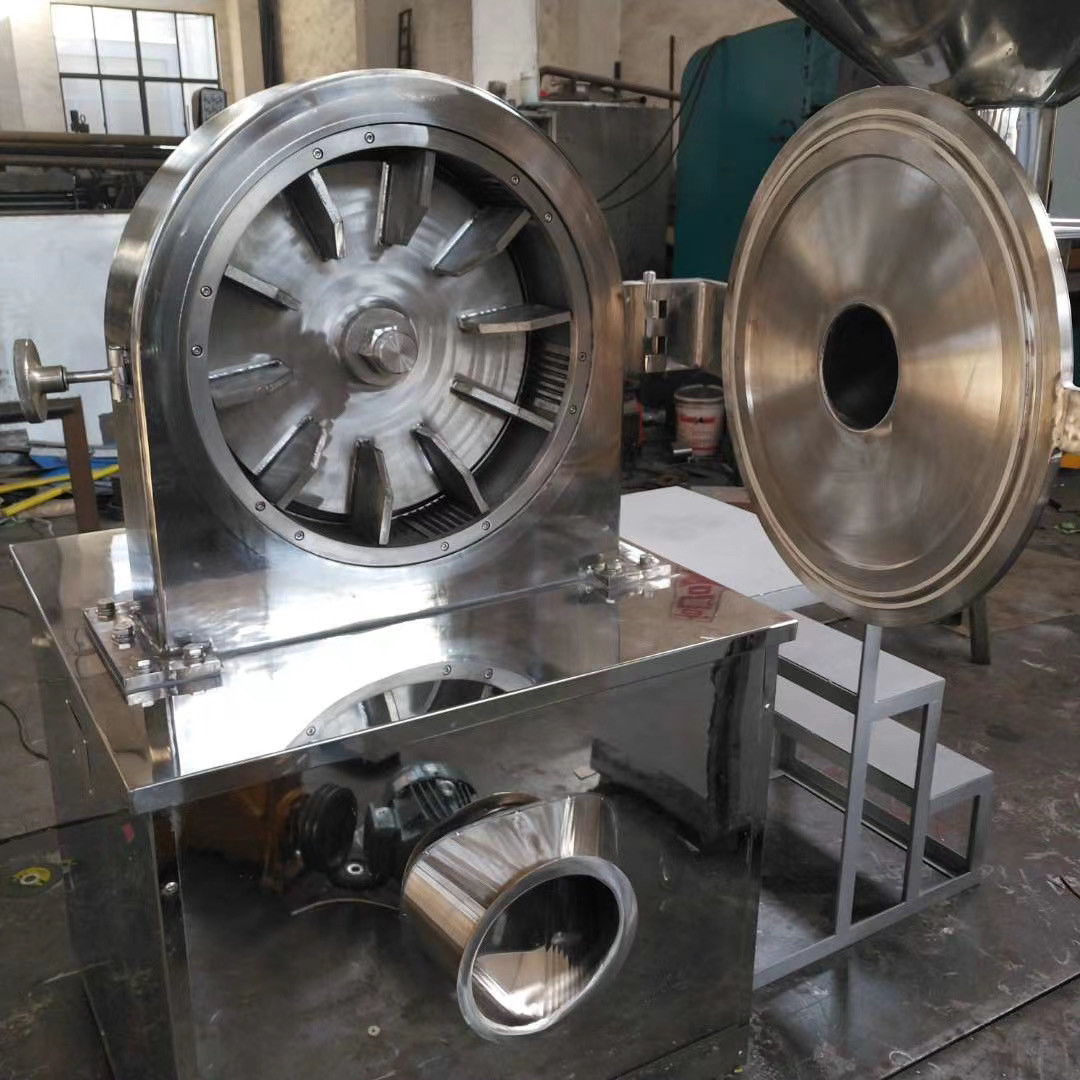

This machine utilizes the relatively high-speed operation between the movable chain disc and the fixed one, so that the materials are crushed by the impact of the gear plate, the friction and collision of the materials with each other. Crushed material can be discharged directly from the grinding chamber through the discharge port, normally collected by a long cotton bag. The crushed size is up to change of different mesh sieves.
The structure of the machine is simple and sturdy, operation is stable, grinding the material quickly and evenly, the effect is good. The machine is made of food grade stainless steel. All the slots in the housing (crushing trough) are machined by precision machining so as to achieve smooth surface and easy cleaning.
It changes the rough, easy-to-accumulate and difficult-to-clean phenomenon of ordinary crusher's inner wall.
Technical parameters
Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
Weight (kg) | 180 | 260 | 360 | 450 | 550 |
Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
