Product Details:
|
Name: | Universal Crusher | Function: | Grinding Material |
---|---|---|---|
Capacity: | 160-800kg/h | Shaft Speed: | 3400rpm |
Color: | Silver | Fineness: | 2-120 Mesh |
Dimension: | 750*800*1550mm | Warranty: | 1Year |
High Light: | 3400rpm Herb Grinding Machine,OEM ODM herb grinding machine,Low Noise Food Crusher Machine |
High Efficiency with Adjustable Mesh Grinding Machines for Chinese Herb

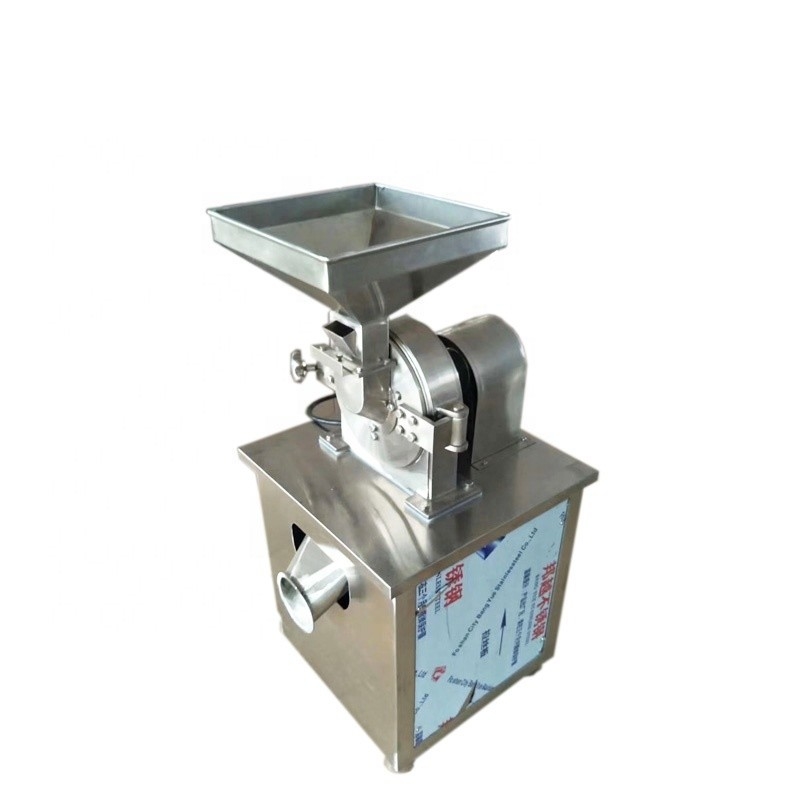

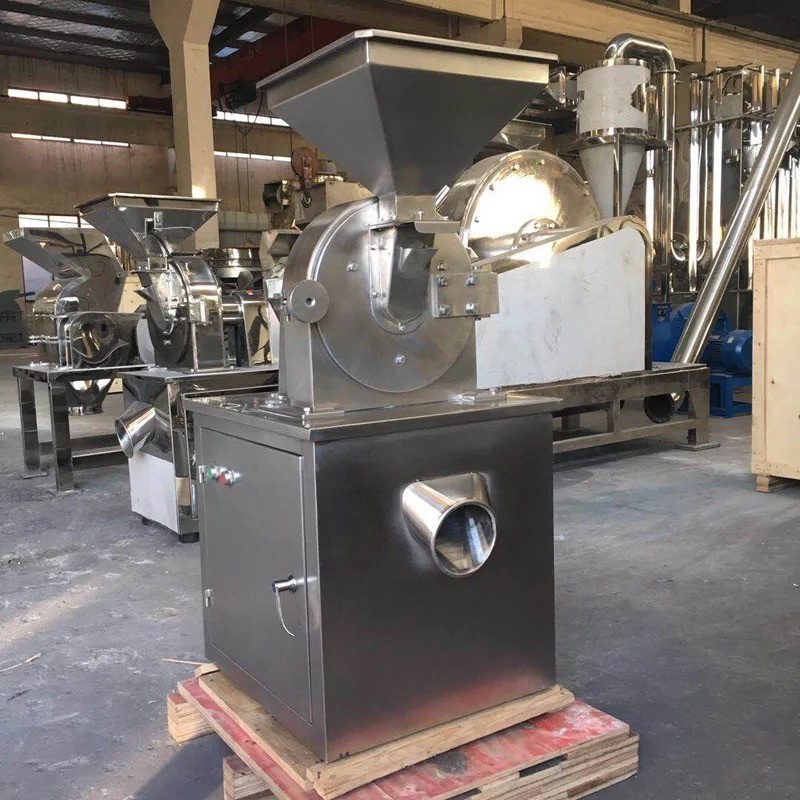

Universal Crusher

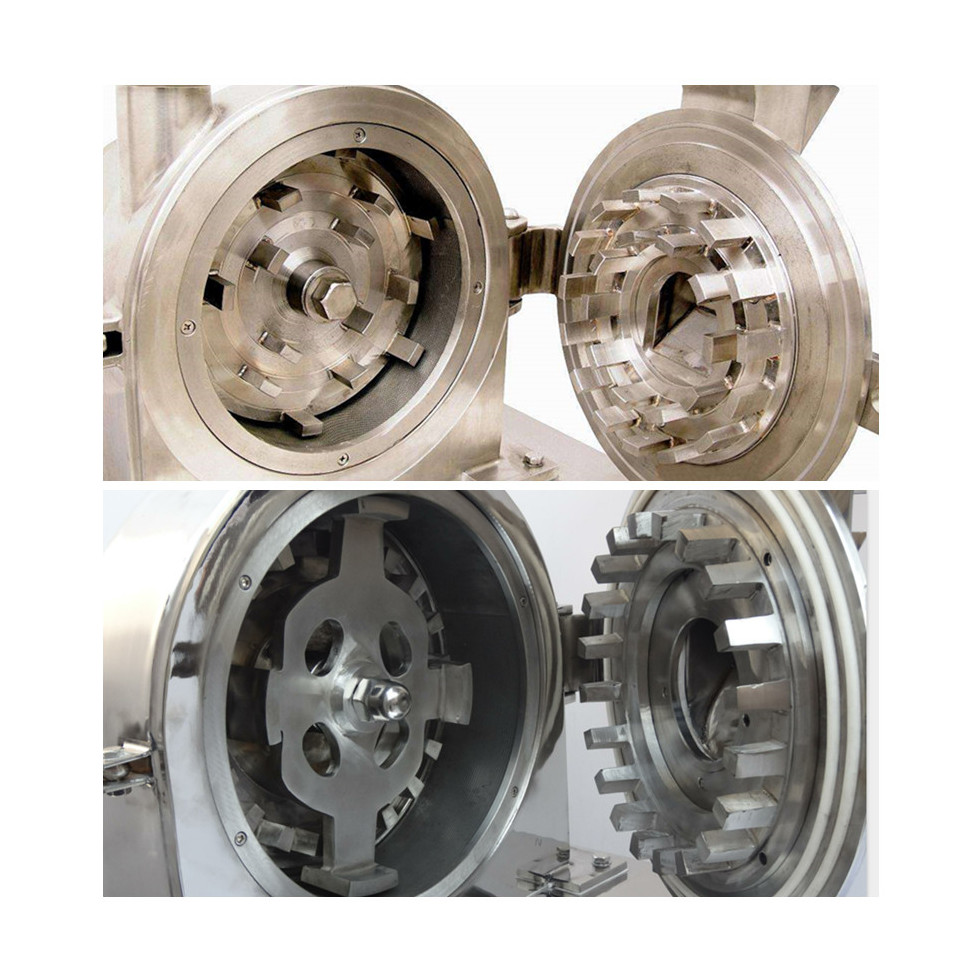

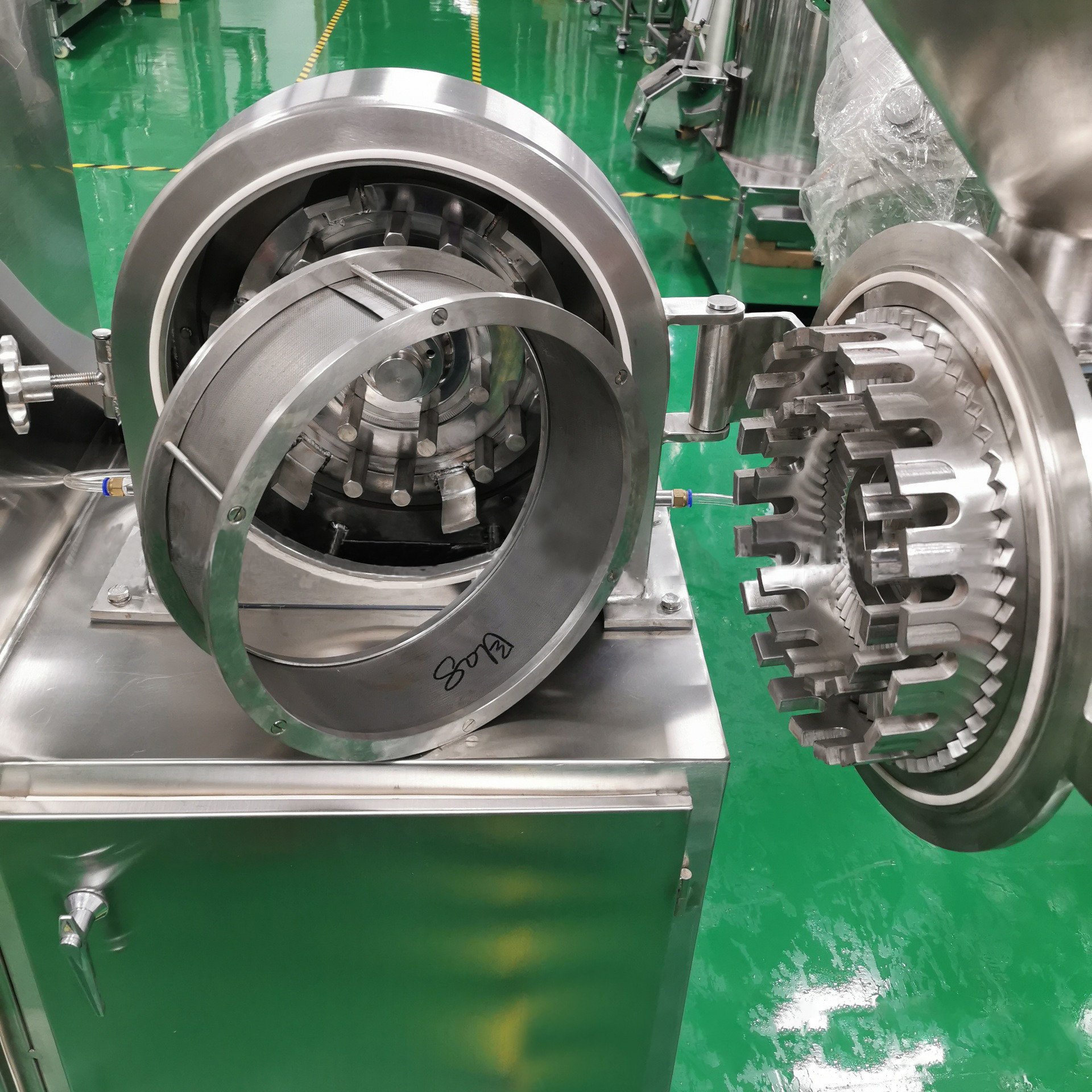

This machine has simple structure, stable operation, low noise and good crushing effect. The crushed materials are directly discharged from the crushing chamber. The particle size can be achieved by selecting screens with different apertures. In addition, the machine is all stainless steel. The inner wall of the casing is all machined to achieve a smooth surface, which has changed the rough and powder accumulation on the inner wall of the previous models, and made the production of medicines, foods, and chemicals more in line with national standards.This machine utilizes the relative movement between the high-speed movable gear plate and the fixed gear plate, so that the crushed material can be crushed by the comprehensive effects of tooth impact, shear and friction, and material collision with each other. Our company has different machinery and equipment for customers to choose from, mainly exporting drying equipment, granulating equipment, mixing equipment, crushing equipment and packaging equipment. This WKS-20B is a more popular crushing equipment. Its productive capacity can reach 60-150 kg per hour. If the customer wants to crush the materials more finely, they can contact us in time to understand the available crushing fineness before purchasing, so that we will match the suitable screen for the customer. If there are certain requirements for the temperature of the crushed materials, you can communicate in advance. We provide different styles of crushing discs, including air-cooled, pin and hammer type.
Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
Weight (kg) | 180 | 260 | 360 | 450 | 550 |
Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
The main products are exported to hundreds of countries and regions in Southeast Asia, South America, North America, Europe etc, and are well received by users all over the world! The company always adheres to the development strategy of "customer first, worry-free after-sales", pays attention to the reserve and training of talents, and has long-term exchange of talents and technologies with well-known enterprises at home and abroad. We aim to liberate people from heavy packaging production, let machines replace labor, reduce production costs and improve production efficiency.
FAQ
Q: How do you ensure the quality of your products?
A: Generally, our equipments are the most durable type in the industry, skilled workers and strict quality control system can ensure every machine with best working performance.
Q: How could I trust your promise?
A: First of all, you can check our website address on Ali International Station, and then we also have some product videos that your local customers have successfully purchased. If it is convenient for you, welcome to visit our factory in China.
