Product Details:
|
| Name: | Universal Crusher | Function: | Grinding Material |
|---|---|---|---|
| Capacity: | 60-150kg/h | Feature: | High Efficiency |
| Color: | Silver | Fineness: | 2-120 Mesh |
| MOQ: | 1 Set | Warranty: | 1Year |
| High Light: | Adjustable Mesh Sieve Universal Crusher,150kg/h Universal Crusher,60kg/h Profesional Spice Grinding Machines |
||
Easy Operate Adjustable Mesh Sieve Profesional Spice Grinding Machines

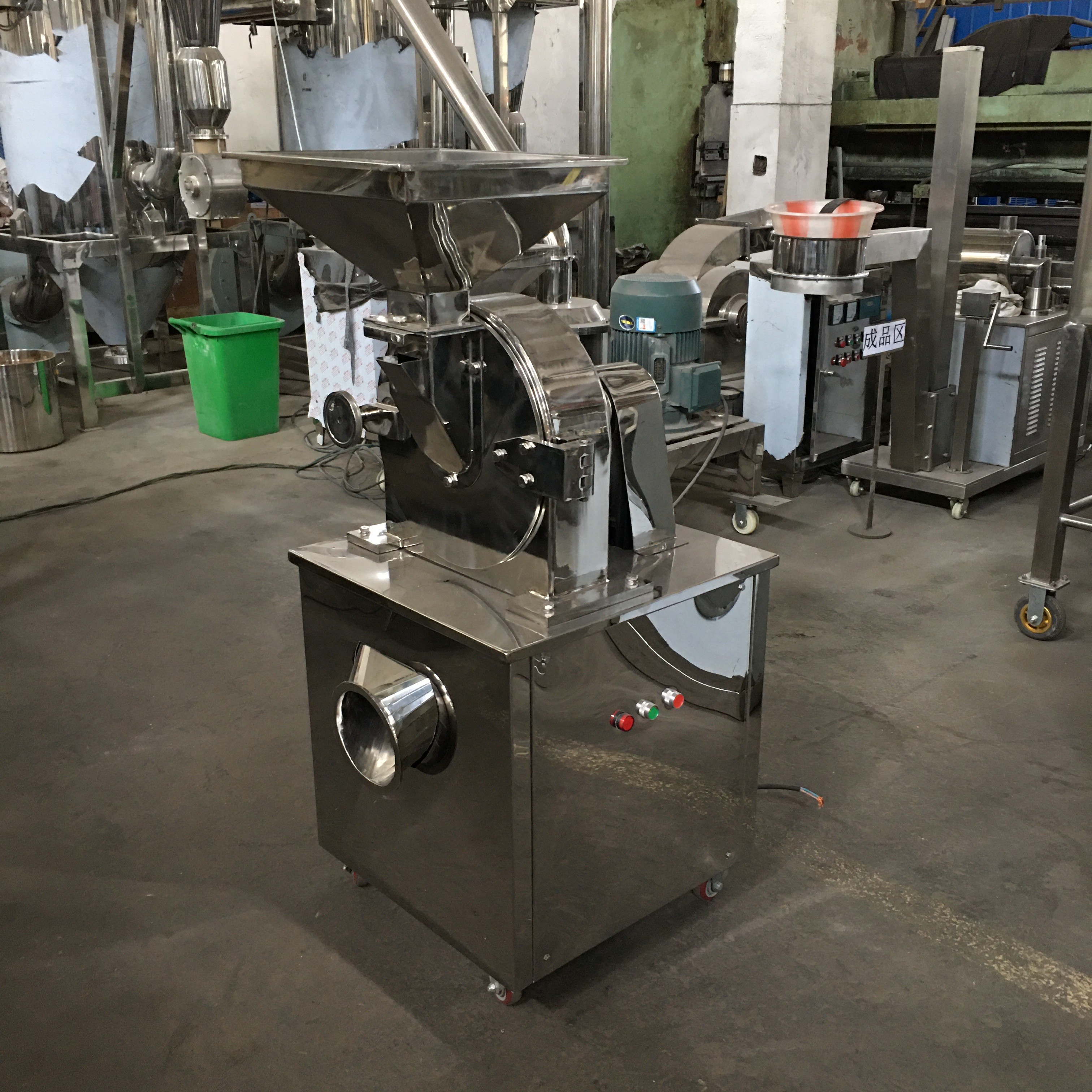

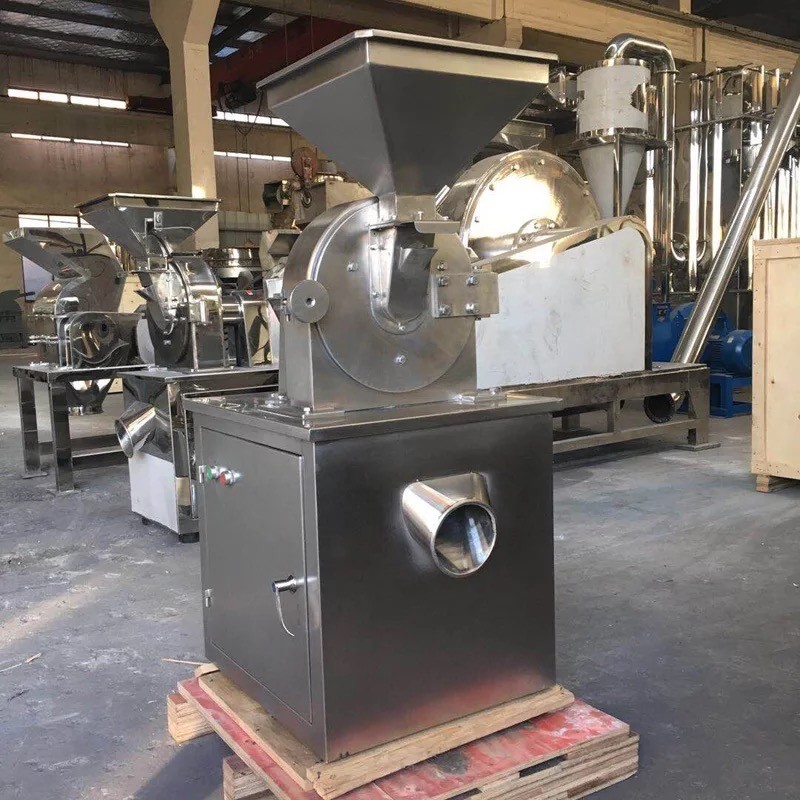

Universal Crusher

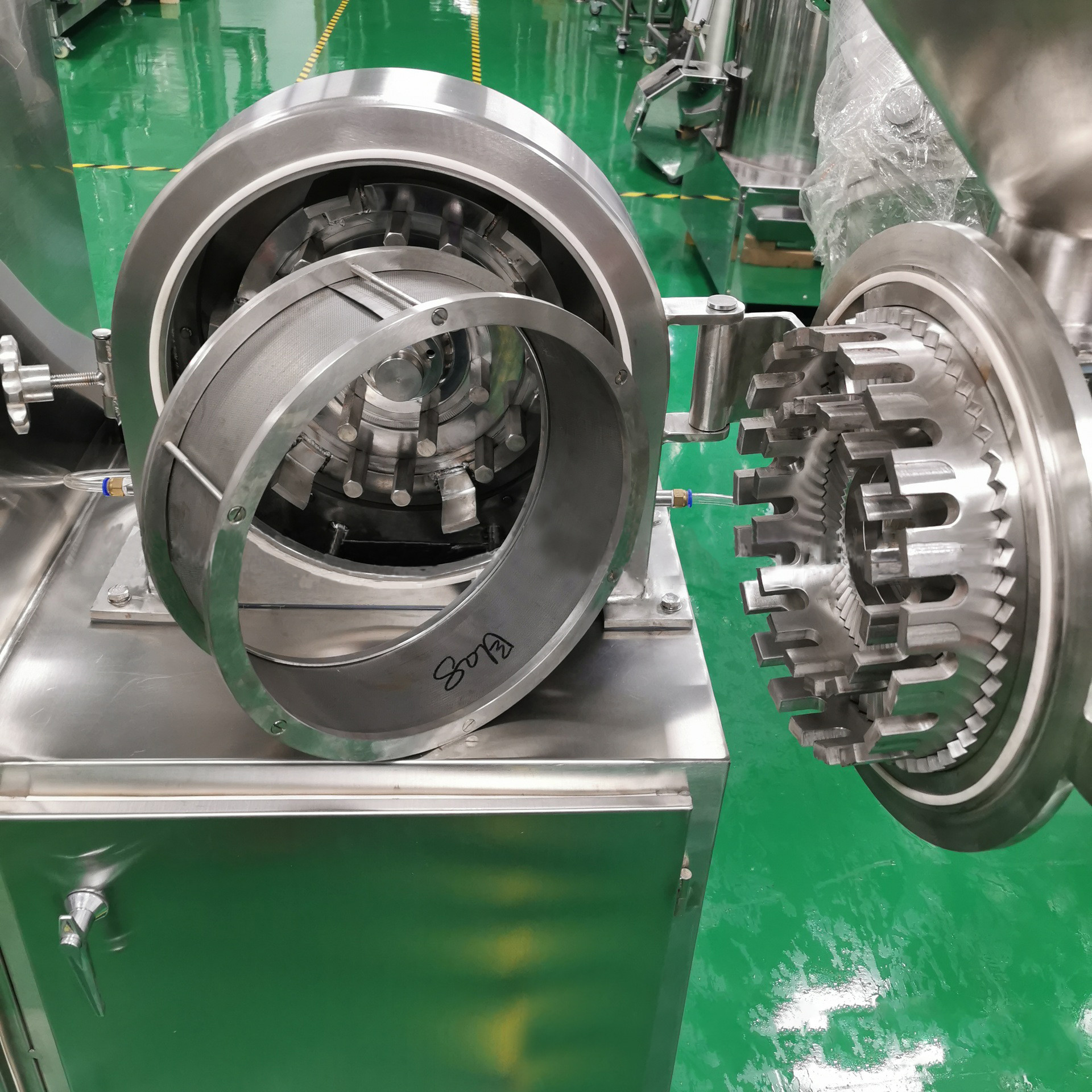

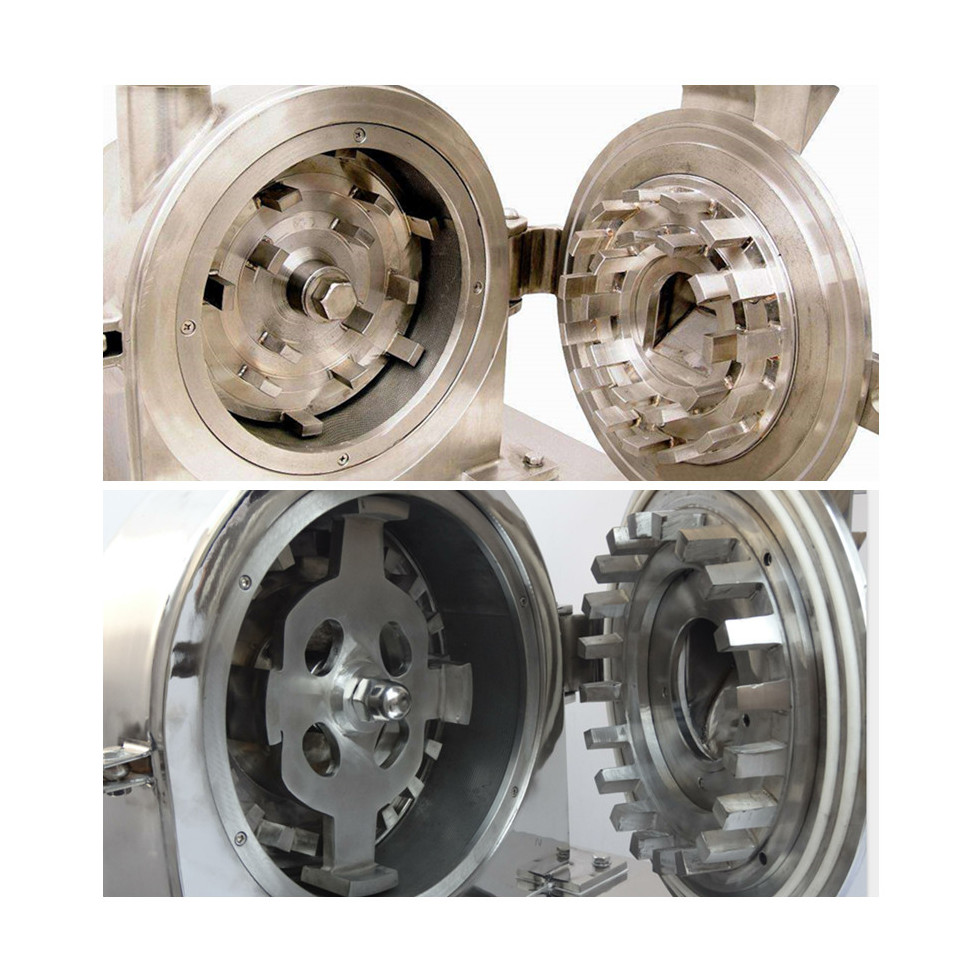

This WKS-20B series universal crusher is suitable for pharmaceutical, chemical, food, and other industries. Processing hard materials, including Chinese herbal spice etc. The machine uses the high-speed relative motion between movable chain disc and the fixed one to crush materials through the impact between gears, friction and impact between materials. There is a screen outside the cutter head for filtration. The crushed material can be directly removed from the grinding chamber of the main engine, and the particle size can be obtained by changing the screen with different apertures. After crushing, the powder passes through the screen and enters the discharge port.Every product is checked for normal operation before shipment. The utility model has the advantages of simple structure, firmness, stable operation and good crushing effect. This is the guarantee we provide to our customers. Our factory located in Jiangsu Area of China, The goods are generally shipped from the Shanghai port, and the transportation is very convenient. We always upgrade our machines to meet with customer's requests better and better.
The Universal pulverizer may be widely applied in industries, such as medicine, chemical and food etc.,for grinding of dry and fragile materials. Materials with low softening point and big viscosity are not appropriate for this machine. Components of this machine which have contact with materials to be crushed are all made of stainless steel with good anti-corrosive property. The housing is in a full enclosure for the convenience of cleaning. The interior walls are all treated to achieve evenness and smoothness of the surface, thus to ensure production of such materials as medicine, food and chemical in better conformity with the national "GMP" standard.
| Model | WKS-20B | WKS-30B | WKS-40B | WKS-50B | WKS-60B |
| Capacity (kg/h) | 60-150 | 100-300 | 160-800 | 200-1000 | 300-1500 |
| Shaft speed (r/min) | 4500 | 3800 | 3400 | 3200 | 2800 |
| Fineness size (mesh) | 2-120 | 2-120 | 2-120 | 2-120 | 2-120 |
| Motor power (kW) | 4 | 5.5 | 7.5 | 11 | 15 |
| Weight (kg) | 180 | 260 | 360 | 450 | 550 |
| Dimension (mm) | 550*600*1250 | 600*700*1450 | 750*800*1550 | 800*850*1600 | 1000*900*1680 |
FAQ
Q1: What's the raw material you want to grind?
Like chili, sugar, Chinese herbs...etc.
Q2: What's the size of your raw material?
Such as 10 mm,15 mm...etc.
Q3: What's the productive capacity of the machine you need?
Like 50 kg/hr, 300 kg/hr,500 kg/hr..etc.
Q4: What's the finished powder fineness you want to get?
Different mesh screens can be selected according to customer needs.
Q5: What power do you use in your factory?-V,-Hz, 3 phase or single phase?
Like 220 V , 50 Hz , single or 380 V, 60 Hz , or customized.
