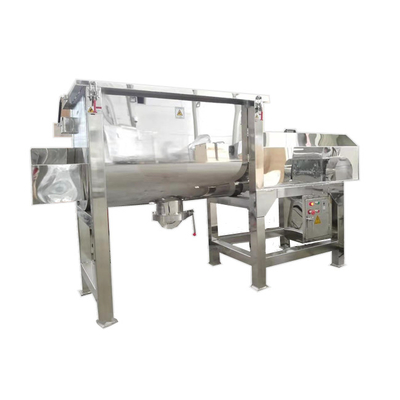

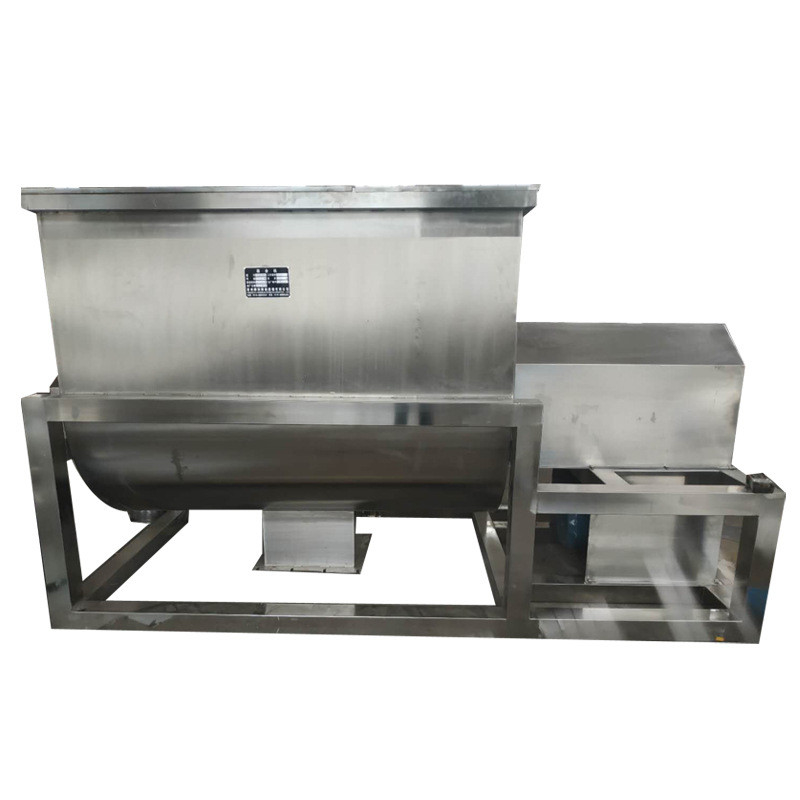

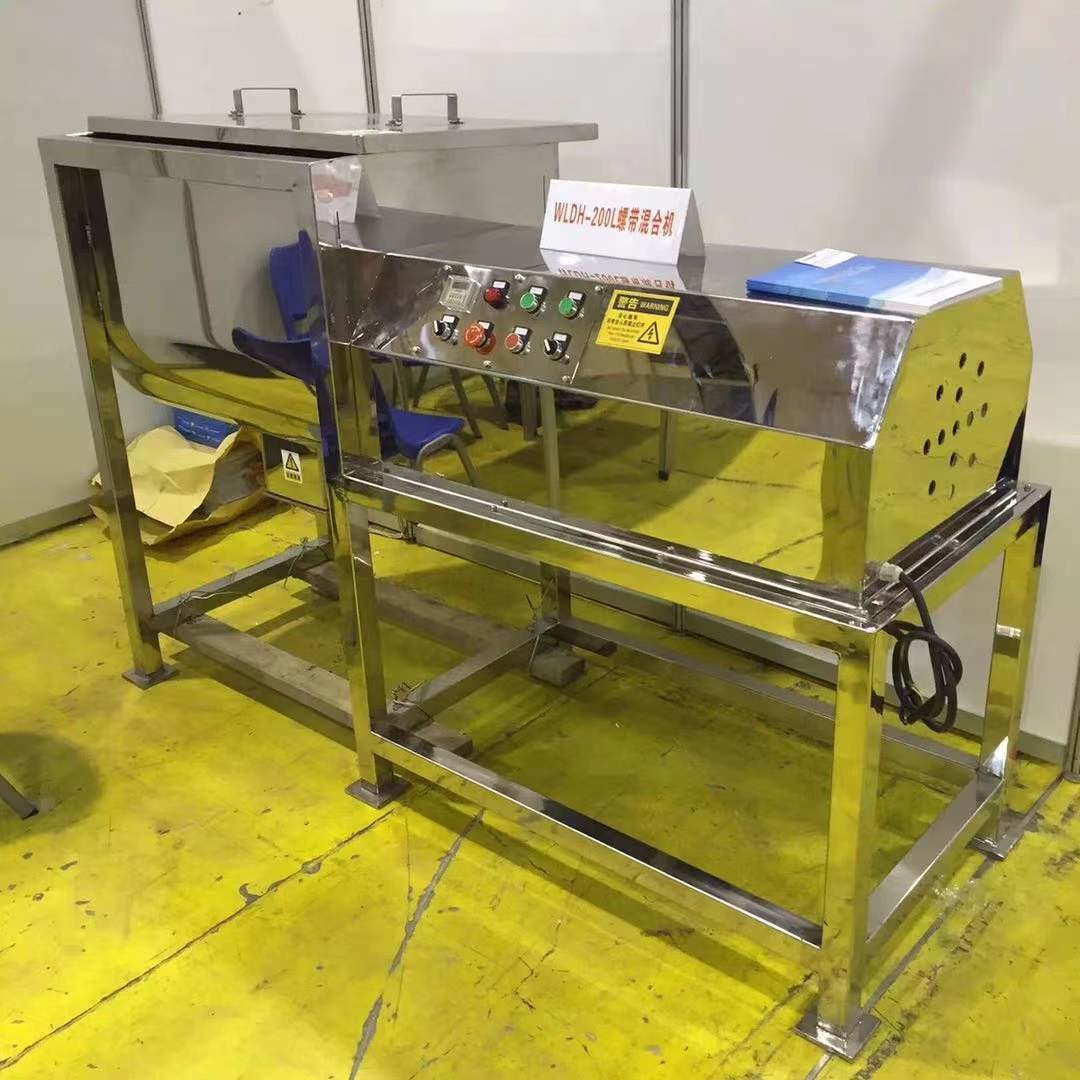

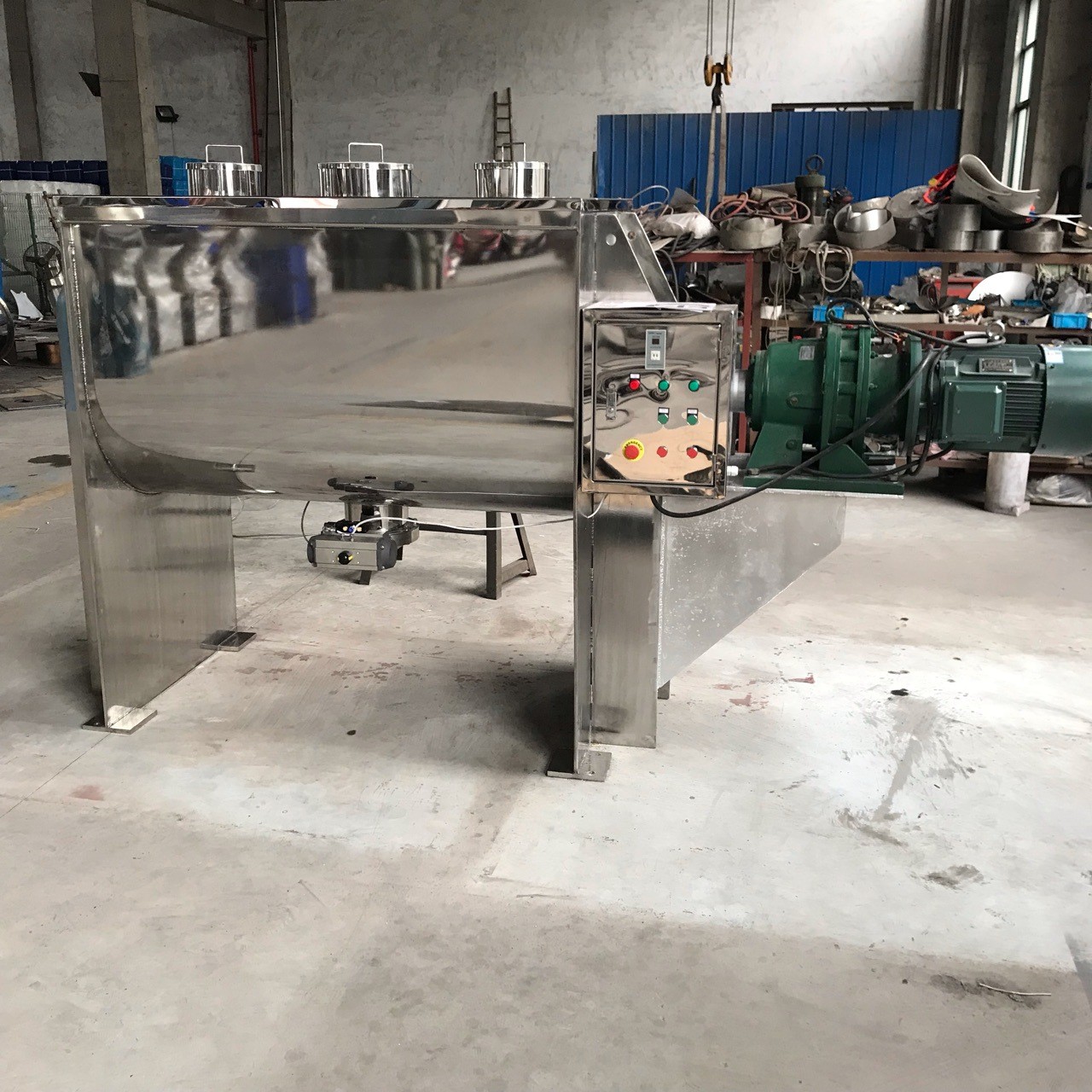

Spice Flour Ribbon Blending Machine

Food Powder Mixer Blender Vegetable Spice Flour Powder Ribbon Blending Machine​

Horizontal Ribbon Mixer

General Introduction

Ribbon Mixer consists of horizontal U shape mixing vessel, drive system and ribbon agitator. The mixing element is combined with inner and outer double helical ribbon agitator. The outer ribbon moves materials into center direction and inner ribbon moves the materials in opposition direction to shape radially and laterally movement. Finally,the material will be discharged at center discharge valve. Ribbon Blender is an efficient and versatile blending machine for mixing of dry granules powders homogeneously .Various materials can be mixed in ribbon mixer through a gentle way, especially in food material mixing. Furthermore, high speed chopper is also available to break some lumps during blending process.The cylinder cover can be made into arch or fully open. The arch can bear pressure. The fully open type is convenient to clean the interior of the equipment. The advantages of this machine are wide application range, high mixing uniformity, short mixing time and large loading coefficient.

Using Range

Widely used in chemical industry, medicine, compound fertilizer, dyes, pigments, rubber, building materials, food, milk powder,health products, feed, additives,aquaculture, biological engineering, fine chemical industry, ceramics, refractory materials,rare earth, plastic glass, new materials, nuclear materials and other industries.

Main Features

1. Stable working, noiseless, easy to disassemble;
2. Available for continuous use;
3. Energy saving, compact structure, high precision transmission;
4. Strong loading capability and easy to assemble;
5. Less influenced by particle size and density;
6. With jacket or coil to heating;
7. Dedusting system and injection system for option;
8. Star/knife-edge/butterfly types valve for option;
9. Manual or pneumatic valve discharge.

Technical Parameters

Specifications Configuration

1. Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, differentmaterial can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.

2. The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.

3. High efficiency mixing unit
Different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.

4. Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.

5. Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.

6. Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacketsampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.

Our Service

Pre-service:

Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.

1. Introduce the product to the customer in detail, answer the question raised by customer carefully;

2. Make plans for choice according to the needs and special requirements of users in different sectors;

Sale service

1. Ensure product with high quality and pre-commissioning before delivery;

2. Delivery on time;

3. Provide full set of documents as customer’s requirements.

After-sale service

Provide considerate services to minimize clients’ worries.

1. Assist clients to prepare for the first construction scheme;

2. Install and debug the equipment;

3.Train the first-line operators;

4. Examine the equipment;

5. Take initiative to eliminate the troubles rapidly;

6. Provide technical support;

7. Establish long-term and friendly relationship.

Service commitment

1. Provide clients one-year warranty to make sure the machine work well;

2. We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;

3. Send every client a preferential quotation.

Why choose us?

1. International high quality certification product chain

2. Manufacturer, more reasonable price

3. Solid technical support and after-sales service

4. Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)

5. Exports to more than 20 countries and regions, good customers feedback

6. One-stop service, customized exclusive project feasibility report

Company introduction

Henan Workers Machinery Co., Ltd. (hereinafter referred to as WKS), established for more than 10 years, is committed to the research, manufacturing and sales of various industrial drying machines, fruits & vegetables and food processing machines, also one of the earliest manufacturers involved in industrial drying equipment in China.
WKS has a modern standard workshop, covering over 2,000 square meters; WKS more than 50 professional engineers from a different technical background with many years of rich research and manufacturing experiences. WKS mainly manufactures industrial microwave dryer, hot air circulation dryer, multi-layer belt hot air dryer, vibratory fluidized bed drying equipment, spray dryer and other fruits & vegetables and food processing machines; all of our products are made of high quality stainless steel with mature product design and sophisticated production technology.

Therefore, high-quality products have much easier access to a good market reputation and share. Our products are exported to dozens of countries such as the United States, Canada, Britain, France, Australia, South Korea, India, Singapore, Thailand, Malaysia, Sri Lanka, Brazil, Russia, Uzbekistan, Romania, Croatia, Latvia, Sweden, Nigeria and South Africa, etc.

WKS believes in customer-oriented business and "quality first" philosophy, so WKS focuses on providing customers with high quality, competitive prices and wholehearted services.
Welcome to visit us to start the cooperation!
