Product Details:
|
| Name: | V Type Power Mixer | Material: | SUS304 |
|---|---|---|---|
| Application: | Powder | Certification: | CE Certificate |
| Function: | Mixer Blender | Product Type: | Powder And Granules |
| High Light: | Collagen V Type Powder Mixer,GMP V Type Powder Mixer,304 Stainless Steel Mixing Machine |
||
Pharmaceutical Chemical and Collagen V Type Dry Powder Mixer 304 Stainless Steel
V Type Powder Mixer
Products Description:
| TYPE | FULL VOL. (m³) |
LOADING RATIO |
L (mm) |
W (mm) |
H (mm) |
DISCHARGE DIAMETER (mm) |
ROTATING HEIGHT (mm) |
ROTATING SPEED (rpm) |
ELECTRIC POWER (kW) |
WEIGHT (kg) |
| WKS-V-0.1 | 0.1 | 0.4~0.8 | 1650 | 500 | 1550 | φ80 | 1600 | 12 | 0.75~1.1 | 180 |
| WKS-V-0.3 | 0.3 | 0.4~0.8 | 1900 | 600 | 1750 | φ100 | 1900 | 12 | 1.1~1.5 | 350 |
| WKS-V-0.5 | 0.5 | 0.4~0.8 | 2300 | 700 | 2100 | φ150 | 2250 | 9 | 1.5~2.2 | 550 |
| WKS-V-1 | 1 | 0.4~0.8 | 2700 | 1000 | 2500 | φ150 | 2700 | 9 | 2.2~4 | 1000 |
| WKS-V-1.5 | 1.5 | 0.4~0.8 | 3000 | 1000 | 2600 | φ200 | 2900 | 8 | 4~5.5 | 1100 |
| WKS-V-2 | 2 | 0.4~0.8 | 3200 | 1200 | 3100 | φ200 | 3250 | 8 | 4~7.5 | 1500 |
| WKS-V-2.5 | 2.5 | 0.4~0.8 | 3950 | 1500 | 3550 | φ200 | 3800 | 7 | 5.5~11 | 1700 |
| WKS-V-3 | 3 | 0.4~0.8 | 4100 | 1500 | 3600 | φ200 | 3850 | 6 | 7.5~11 | 1800 |
Application:
This series of machine are newly design, high efficient and high accuracy mixer. It is widely used for dry material grains in the field of medical, chemical, food, metallurgical and other industry.
Working principle
Feature:
1. It is used to mix the dry-powder, granular materials with good liquidity.
2. It consists of two asymmetric cylinders. The materials can flow as vertical and horizontal direction. The mixing uniformity will be above 99%.
3. It adopts vacuum feeding under sealing state. There’s no driving structure inside and be clean, no dead corner in according with GMP standard.

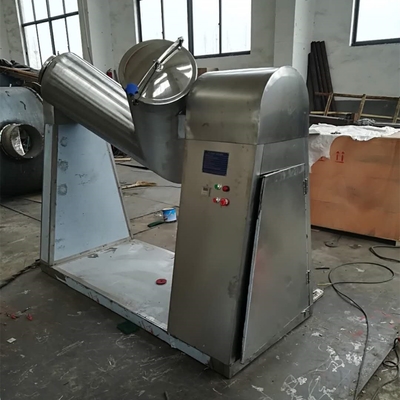

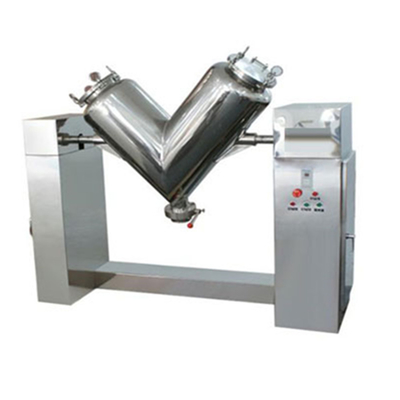

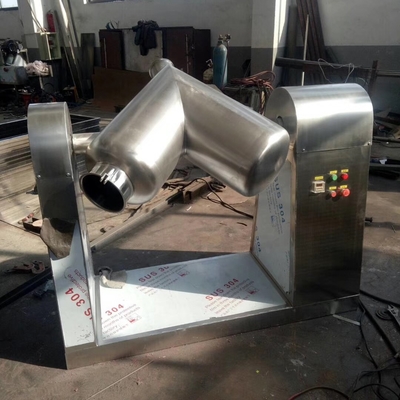

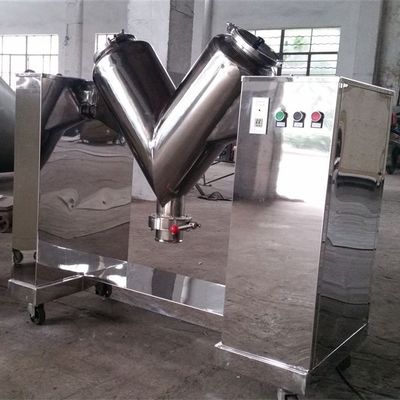

Pictures
