0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine

0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine
0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine
0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine 0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine 0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine 0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine 0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine

Large Image :  0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine

Product Details:
Place of Origin: China
Brand Name: WKS
Certification: CE
Model Number: WKS-V-1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: about 30 working days
Payment Terms: T/T
Supply Ability: 10 sets for month
Contact Now

0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine

Description
Name: V Type Mixer Material: SUS304
Application: Powder Certification: CE Certificate
Function: Mixer Blender Product Type: Powder And Granules
High Light:

11KW V Type Blender Pharmaceutical

,

0.75KW pharmaceutical powder mixer machine

,

V Type pharmaceutical powder blender

V Type High Efficiency Mixer Pharmaceutical Powder Mixing Machine

V Type Powder Mixer



Products Description:
V series mixer is a mixing equipment for pharmaceutical industry and other powder and granular materials. It is widely used in pharmaceutical, food, chemical, and other industries. The equipment is designed based on the advantages of similar foreign products. Because the lengths of the two cylindrical columns that make up the mixer are not equal, they form an asymmetry. When the mixer is running, the materials are different from the decomposition and combination angles, forming an axial layer by layer Alternate diffusion and mixing, due to the different planes of the materials on the inner wall of the cylinder, also have different potential energy between each other, resulting in lateral convection mixing. The above-mentioned mixing effect is continuously repeated, so that the materials reach a very uniform random mixing state. Due to the internal gravity mixing, this machine has a small pressure feed to the material, high mixing uniformity, and is made of stainless steel material. The inner and outer walls are polished, and the power consumption and efficiency are high. It is an ideal device for the new generation of powder mixing.



Application:

The mixer is used for mixing the dry material grains in the medical, chemical, food, metallurgical and other industries. The mixing barrel structure is unique. The mixing efficiency is high. There is no corner that can not be reached. The barrel uses the stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer meets GMP standard.

Technical parameter
TYPE FULL VOL.
(m³)		 LOADING
RATIO		 L
(mm)		 W
(mm)		 H
(mm)		 DISCHARGE DIAMETER
(mm)		 ROTATING HEIGHT
(mm)		 ROTATING SPEED
(rpm)		 ELECTRIC POWER
(kW)		 WEIGHT
(kg)
WKS-V-0.1 0.1 0.4~0.8 1650 500 1550 φ80 1600 12 0.75~1.1 180
WKS-V-0.3 0.3 0.4~0.8 1900 600 1750 φ100 1900 12 1.1~1.5 350
WKS-V-0.5 0.5 0.4~0.8 2300 700 2100 φ150 2250 9 1.5~2.2 550
WKS-V-1 1 0.4~0.8 2700 1000 2500 φ150 2700 9 2.2~4 1000
WKS-V-1.5 1.5 0.4~0.8 3000 1000 2600 φ200 2900 8 4~5.5 1100
WKS-V-2 2 0.4~0.8 3200 1200 3100 φ200 3250 8 4~7.5 1500
WKS-V-2.5 2.5 0.4~0.8 3950 1500 3550 φ200 3800 7 5.5~11 1700
WKS-V-3 3 0.4~0.8 4100 1500 3600 φ200 3850 6 7.5~11 1800

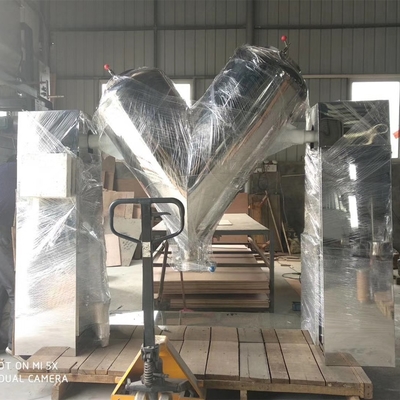

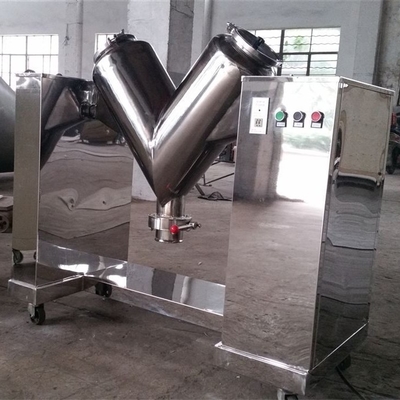

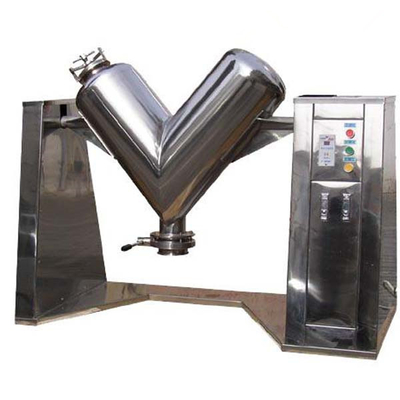

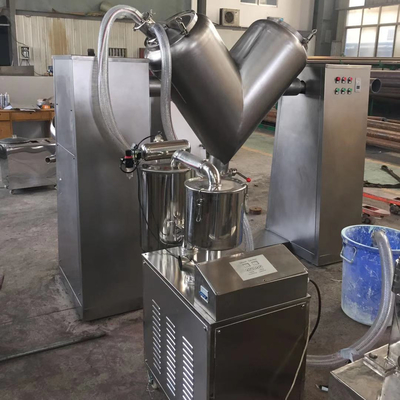

 Pictures

0.75KW To 11KW V Type Blender Pharmaceutical Powder Mixer Machine 0

Working principle

The machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It’s high efficient.


FAQ:

Q: What price terms you offer?

A: We can offer FOB, FCA, CFR, CIF, EXW and other price terms based on your request.

Q: What payment terms you take?

A: TT, LC, other terms are also workable.

Q: How can I visit your factory?

A: Our factory is located in Changzhou city Jiangsu Province. Just let us know your scheduel in advance and we will arrange everything for you! Any other doubts about our machine, please feel easy to contact with us.
