Product Details:
|
Name: | V Type Mixer | Material: | SUS304 |
---|---|---|---|
Application: | Powder | Certification: | CE Certificate |
Function: | Mixer Blender | Product Type: | Powder And Granules |
High Light: | 3m3 V Type Powder Mixer,0.1m3 medicine mixer machine,Chemical Medicine Blender |
Chemical Powder V Shape Powder Mixer Blender Medicine Powder Mixing Machine

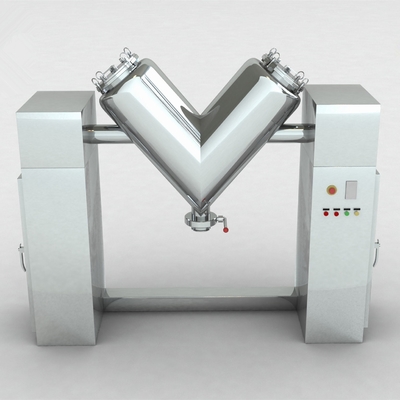

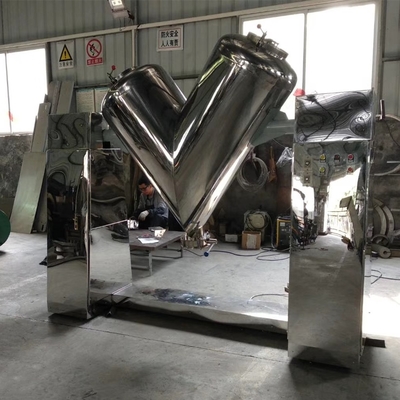

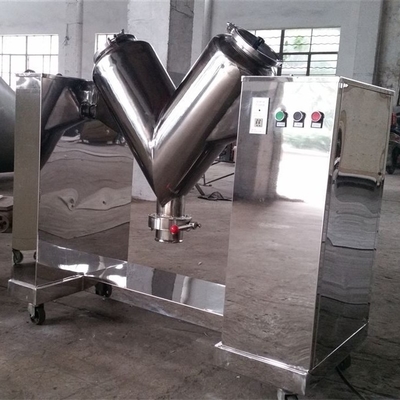

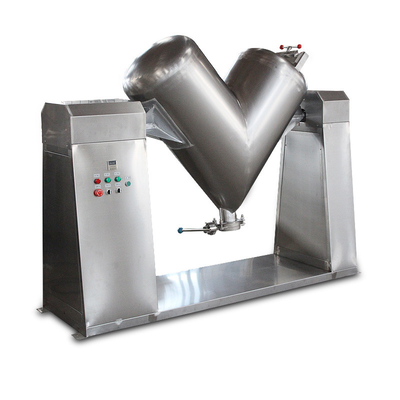

V Type Powder Mixer
V shaped mixer is used for mixing dry granules and powder in lines of food,pharmacy or other industries.
It can mix dry powder, cosmetic powder...etc
Working principle:
V-type mixer is driven by the drive shaft which rotates around the center of the rotary axis, during which material starts gravity diffusion movement along with the V-shaped inclined cylinder, when the connection of the V-shaped cylinder is rotated in the upper position, the materials collected at the bottom are diverted into the two inclined cylinder bodies, so that the material of each inclined cylinder body can also enter the other inclined body through the joint ports tube inside. With the continuous rotation of the cylinder, the continuous changes of the cylinder body, V-cylinder material is repeatedly dislocation, translation, diffusion, so as to achieve uniform mixing.
Technical parameter
TYPE | FULL VOL. (m³) |
LOADING RATIO |
L (mm) |
W (mm) |
H (mm) |
DISCHARGE DIAMETER (mm) |
ROTATING HEIGHT (mm) |
ROTATING SPEED (rpm) |
ELECTRIC POWER (kW) |
WEIGHT (kg) |
WKS-V-0.1 | 0.1 | 0.4~0.8 | 1650 | 500 | 1550 | φ80 | 1600 | 12 | 0.75~1.1 | 180 |
WKS-V-0.3 | 0.3 | 0.4~0.8 | 1900 | 600 | 1750 | φ100 | 1900 | 12 | 1.1~1.5 | 350 |
WKS-V-0.5 | 0.5 | 0.4~0.8 | 2300 | 700 | 2100 | φ150 | 2250 | 9 | 1.5~2.2 | 550 |
WKS-V-1 | 1 | 0.4~0.8 | 2700 | 1000 | 2500 | φ150 | 2700 | 9 | 2.2~4 | 1000 |
WKS-V-1.5 | 1.5 | 0.4~0.8 | 3000 | 1000 | 2600 | φ200 | 2900 | 8 | 4~5.5 | 1100 |
WKS-V-2 | 2 | 0.4~0.8 | 3200 | 1200 | 3100 | φ200 | 3250 | 8 | 4~7.5 | 1500 |
WKS-V-2.5 | 2.5 | 0.4~0.8 | 3950 | 1500 | 3550 | φ200 | 3800 | 7 | 5.5~11 | 1700 |
WKS-V-3 | 3 | 0.4~0.8 | 4100 | 1500 | 3600 | φ200 | 3850 | 6 | 7.5~11 | 1800 |
Pre-Sales Service
After-Sales Service
Provide the test run video, Training how to instal the machine, training how to use the machine.
