Spice Cocoa collagen Powder V Type Mixing Equipment Chemicals Medicine mixer

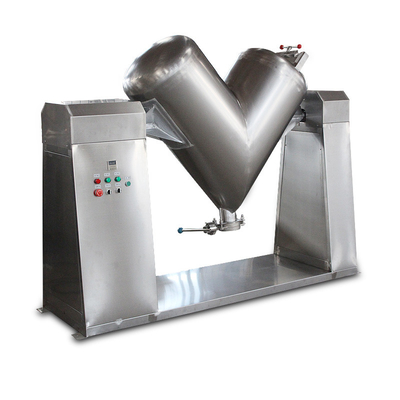

V Type Powder Mixer
Features
1. Using the principle of gravity diffusion, the pressure to the material is small, will not cut the material.
2. Cylinder made of high quality stainless steel, the inner and outer walls are polished, the process of mixing materials without pollution, power consumption is small, easy to clean.
3. Using stainless steel butterfly valve discharge, no dust leakage and flying phenomenon.
4. Large-capacity mixer can be configured with vacuum feeding system to improve work efficiency and improve the working environment.
5. Especially suitable for the materials with similar particle size and apparent density, also can be used for materials which are easy to aggregate.
Technical parameter
| TYPE |
FULL VOL.
(m³) |
LOADING
RATIO |
L
(mm) |
W
(mm) |
H
(mm) |
DISCHARGE DIAMETER
(mm) |
ROTATING HEIGHT
(mm) |
ROTATING SPEED
(rpm) |
ELECTRIC POWER
(kW) |
WEIGHT
(kg) |
| WKS-V-0.1 |
0.1 |
0.4~0.8 |
1650 |
500 |
1550 |
φ80 |
1600 |
12 |
0.75~1.1 |
180 |
| WKS-V-0.3 |
0.3 |
0.4~0.8 |
1900 |
600 |
1750 |
φ100 |
1900 |
12 |
1.1~1.5 |
350 |
| WKS-V-0.5 |
0.5 |
0.4~0.8 |
2300 |
700 |
2100 |
φ150 |
2250 |
9 |
1.5~2.2 |
550 |
| WKS-V-1 |
1 |
0.4~0.8 |
2700 |
1000 |
2500 |
φ150 |
2700 |
9 |
2.2~4 |
1000 |
| WKS-V-1.5 |
1.5 |
0.4~0.8 |
3000 |
1000 |
2600 |
φ200 |
2900 |
8 |
4~5.5 |
1100 |
| WKS-V-2 |
2 |
0.4~0.8 |
3200 |
1200 |
3100 |
φ200 |
3250 |
8 |
4~7.5 |
1500 |
| WKS-V-2.5 |
2.5 |
0.4~0.8 |
3950 |
1500 |
3550 |
φ200 |
3800 |
7 |
5.5~11 |
1700 |
| WKS-V-3 |
3 |
0.4~0.8 |
4100 |
1500 |
3600 |
φ200 |
3850 |
6 |
7.5~11 |
1800 |

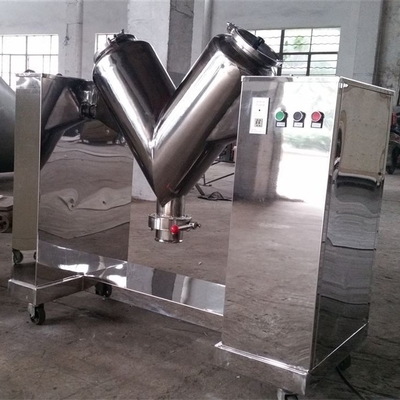

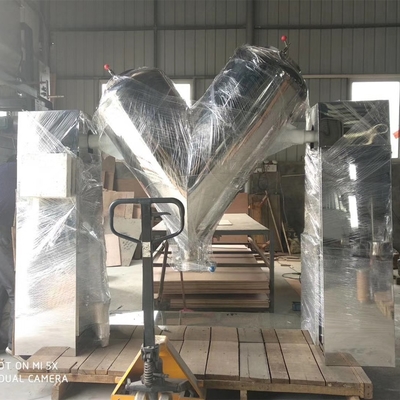

Pictures
Operation and Maintenance
1. Connect the power first, setting the required mixing time, then turn on the switch, the machine begin running.
2. After the mixing, if you found that the position of discharging port is not the best position, you should turn off the power first, and adjust the position of discharging port.
3. Before you use the machine, you should check the appliance, if it is normal; and check the covers of mixing barrels, if the covers are tightly closed.
4. User should clean the machine after the finish of work, especially the barrels, prevent the residual materials.
5. Note that the reducer should be added enough lubricating oil(generally use the 30 # machine oil), and the transmission should be added grease lubricant.
6. Users should maintain the machine once each half of year, change the lubricating oil of reducer, check if the appliance is aging, the appliance should be replaced if it is aging.
7. After you have been using the machine for one year or more, you should make a big maintenance, check the gab between each parts, and appropriately adjust them, so that the machine can keep in good condition.
Working Principles
The reducing mechanism drives the barrel rotary, and the length of two barrels is different, which will produce asymmetry. And then the machine take advantage of this asymmetry for mixing materials. When the machine is running, materials from the decomposition to the combination, as potential energy differences, which will produce lateral force to promote the horizontal exchange of materials; and materials from the combination to the decomposition, as materials plane differences, which will produce lateral force to promote the horizontal exchange of materials again. The barrels rotary one cycle, which will make 25% of materials flow from one barrel to the other one; at the same time the materials will also produce radial flow, and then the materials can horizontally and radially decompose, alternating combination, so that the materials can mix evenly.
