Product Details:
|
| Name: | Microwave Vacuum Dryer | Model: | MV-48 |
|---|---|---|---|
| Capacity: | 200-300kg/batch | Material: | 304 Stainless Steel |
| Vacuum: | 0.93Mpa | Control: | PLC+HMI |
| High Light: | Fruit Vegetable Microwave Vacuum Dryer,0.93Mpa Microwave Vacuum Dryer,CE Industrial Food drying machine |
||
Commercial Fruit Vegetable Microwave Vacuum Dryer Industrial Food drying machine

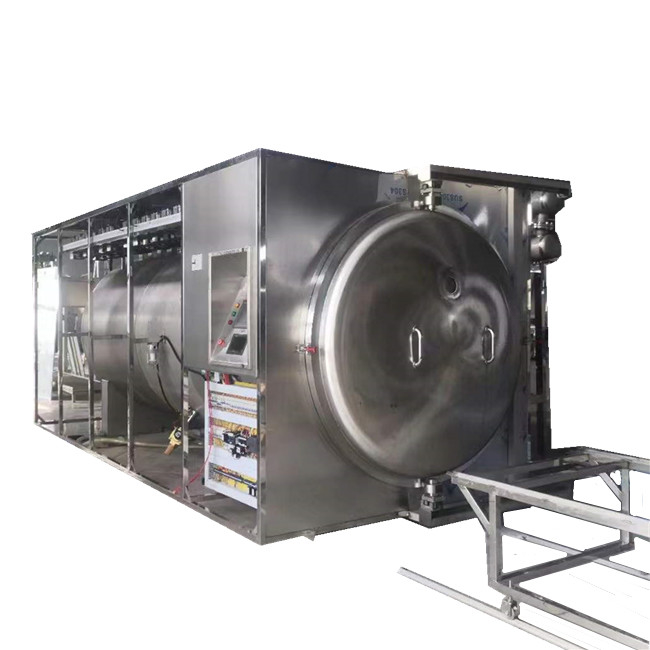

Microwave Vacuum Dryer
Microwave vacuum drying equipment is a new type of microwave energy application equipment combining microwave energy technology and vacuum technology. It has a series of advantages of microwave and vacuum drying, and overcomes the shortcomings of conventional vacuum drying cycle and low efficiency. In the drying process, the work efficiency can be improved by 4 to 10 times compared with the conventional method. Microwave vacuum drying equipment is a comprehensive high-tech equipment combining microwave energy application technology and vacuum drying technology condensation and dehumidification technology. It is mainly used for low temperature dehydration of fruits, vegetables and food etc.
| Model | WKS-MV-3 | WKS-MV-6 | WKS-MV-9 | WKS-MV-12 | WKS-MV-24 | WKS-MV-48 |
| Microwave power | 3kw | 6kw | 9kw | 12kw | 24kw | 48kw |
| Frequency | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz | 2450±50MHz |
| Evaporation capacity | 2.4-3kg/h | 4.8-6kg/h | 7.2-9kg/h | 9.6-12kg/h | 19.2-24kg/h | 38.4-48kg/h |
| Cooling | Air | Air | Air | Air | Air/water | Air/water |
| Vacuum pump | 1.8kw | 2.2kw | 2.2kw | 4.5kw | 7.5kw | 15kw |
| Control | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI | PLC+HMI |
Features of Microwave Vacuum Dryer:
1. Energy-saving and high-efficiency: Compared with conventional drying technology, it can improve work efficiency by more than four times.
2.heating evenly: Because microwave heating is heating inside and outside the material, the temperature difference between the inside and outside of the material is small, so the drying quality is greatly improved.
3.easy to control: easy to control in time, easy to adjust and determine the process parameters.
4.the equipment is small, easy to install and maintain.
5.the product quality is good: Compared with the conventional method, the quality of the processed product has been greatly improved.
6.The microwave vacuum equipment has the effect of disinfection, sterilization
FAQ:
1. Question: What information should be provided in order to get a quotation of microwave vacuum dryer?
Answer: Our Sintering oven can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What are you going to dry?
2) What is the handing capacity per batch?
3) Max temperature, heat-up rate, temperature uniformity.
2. Question: What is lead time?
Answer: 30-45 working day.
3. Question: How the dryer will be delivered ?
Answer: FOB LCL or FLC for shipping
5.Question: What standard models do you have?
Answer: We have the following standard models:
Packing & Shipping:
Packing: Normally it is packed in the plywood case, or loaded directly in the container after film wrapping.
Shipping: LCL/FCL
