CE Industrial V Type Powder Mixer Food Grade Salt Mixing Machine
Product Details
CE Industrial V Type Powder Mixer
,ODM V Type Powder Mixer
,Food Grade Salt Mixing Machine
CE Industrial V Type Food Grade Blender for Salt Sugar Spice Baby Milk Powder
V Type Powder Mixer
Introduction:
The materials being blended are loaded from top ports. The loading factor is 40%-60%. The materials being blended in these units can vary in bulk density and in percentage of the total mixture. V shell gets rotation under the driven of motor-reducer. Materials being blended are constantly being split and intermixed as the shell rotates. Normal cycle times are typically in the range of 15 minutes, however can be less depending on the difficulty of blending.
Working Principle:
the machine is mainly composed of mixing tank, spiral agitating vane and transmission parts. There are two layers of spiral agitating vane. The outside vanes accumulate the material from side to center, while the inner vanes separate the material from center to side. So that material will mix to each other in convective mixing inside the tank. It’s high efficient.
Feature:
This series of mixer, made by stainless steel, is in unique structure, high efficient, easy operation, widely use and small occupation.
| TYPE | FULL VOL. (m³) |
LOADING RATIO |
L (mm) |
W (mm) |
H (mm) |
DISCHARGE DIAMETER (mm) |
ROTATING HEIGHT (mm) |
ROTATING SPEED (rpm) |
ELECTRIC POWER (kW) |
WEIGHT (kg) |
| WKS-V-0.1 | 0.1 | 0.4~0.8 | 1650 | 500 | 1550 | φ80 | 1600 | 12 | 0.75~1.1 | 180 |
| WKS-V-0.3 | 0.3 | 0.4~0.8 | 1900 | 600 | 1750 | φ100 | 1900 | 12 | 1.1~1.5 | 350 |
| WKS-V-0.5 | 0.5 | 0.4~0.8 | 2300 | 700 | 2100 | φ150 | 2250 | 9 | 1.5~2.2 | 550 |
| WKS-V-1 | 1 | 0.4~0.8 | 2700 | 1000 | 2500 | φ150 | 2700 | 9 | 2.2~4 | 1000 |
| WKS-V-1.5 | 1.5 | 0.4~0.8 | 3000 | 1000 | 2600 | φ200 | 2900 | 8 | 4~5.5 | 1100 |
| WKS-V-2 | 2 | 0.4~0.8 | 3200 | 1200 | 3100 | φ200 | 3250 | 8 | 4~7.5 | 1500 |
| WKS-V-2.5 | 2.5 | 0.4~0.8 | 3950 | 1500 | 3550 | φ200 | 3800 | 7 | 5.5~11 | 1700 |
| WKS-V-3 | 3 | 0.4~0.8 | 4100 | 1500 | 3600 | φ200 | 3850 | 6 | 7.5~11 | 1800 |

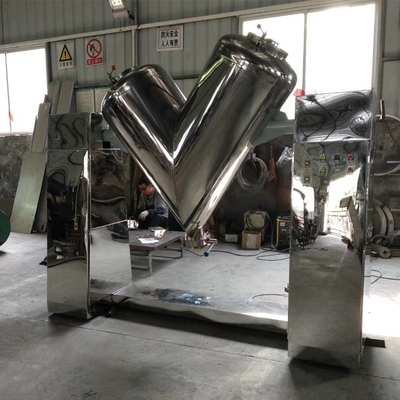

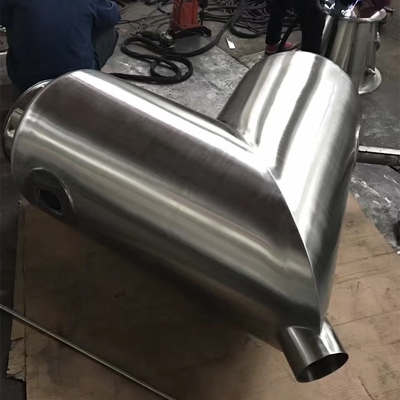

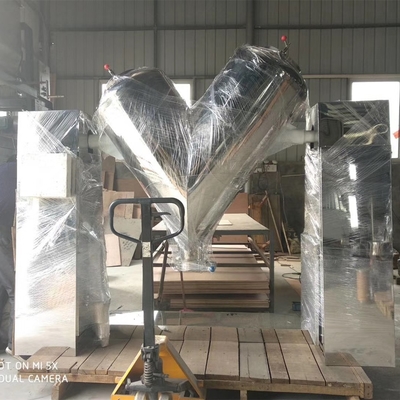

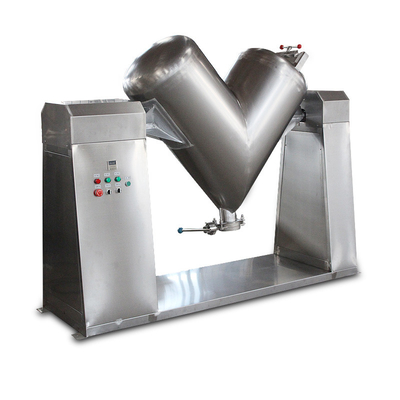

Pictures
Packaging
All products sold by our company will be safely packed according to the size and weight of the product.
Delivery
Usually, we ship your cargo by FedEx, DHL, UPS or any other logistic company.
You can also use your own shipping agent.
Logistics
1. DHL, UPS, FedEx, EMS, TNT, ARAMEX and etc. We will choose the most economical one for you or designate a specific one by yourself.
2. Tracking number will be sent to you within 2 or 3 days after delivery.
Feedbacks
We value any comments, suggestions from you. If you got any problem, please contact us
Delivery Problems
If you find damage or shortage of goods, please take some meaningful photos for a witness and send it to us, we'll solve it within 24 hours.
Warranty
Typically every product got 1 year of warranty, we'll do whatever we can to assist you to solve the issue.
-
