Product Details:
|
Name: | Superfine Grinding Machine | After-sales Service Provided: | Online Support |
---|---|---|---|
Warranty: | 1 Year | Voltage: | 220V/380V Or Customized |
Power: | 22kW | Function: | Powder Grinding |
High Light: | Soybean Ultrafine Pulverizer,Barley Ultrafine Pulverizer,Pueraria Superfine Grinding Machine |
Superfine Grinding Machine
Ultrafine Universal Pulverizer Grinding Machine Air Classifier for Polyethylene
Working Principle
Air classifier mill material would be conveyed by feeding system evenly to milling chamber, and would be impacted by high speed rotating beater, and also under the centrifugal force, it would impact the grinding track. By several different pulverization powers, the material would be milled into fine powder. The milled powder would go with air flow up to the classifying chamber. With the help of adjustable classifier wheel,coarse powder and fine powder would be separated. Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

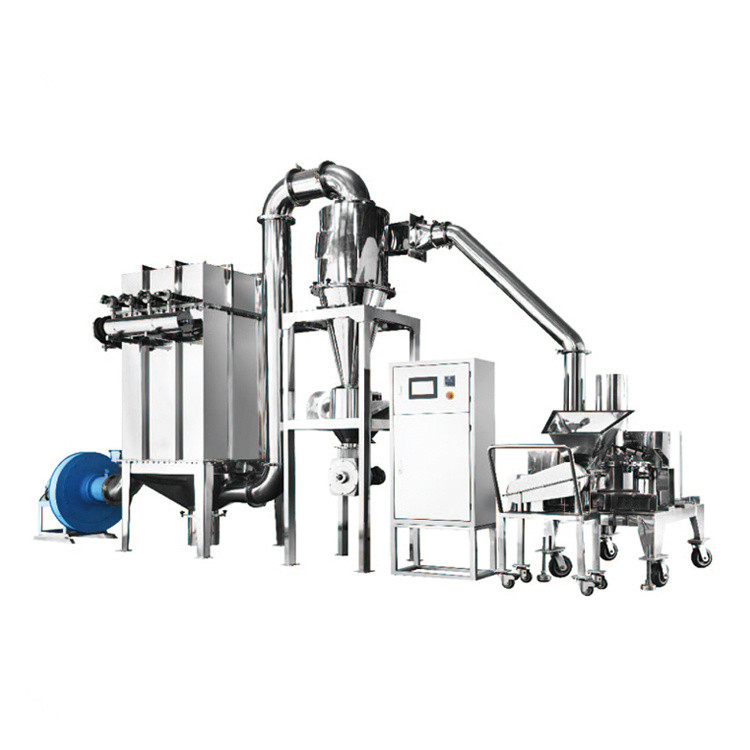

Design and supply of a Complete Milling system for the production .This includes design and supply of all ancillary items necessary for proper operation of the offered equipment including, but not limited to:
1. Feed Bin and Feed Screw
2. Pulverizing Mill
3. Cyclones
4. Bag filters/pulse dust collector with rotary valve
5. Draft Fan
6. Pipes /bracket
7. One product collection systems with rotary valve
8. Electrical Cabinet
The main purpose
This machine is composed of three parts: main machine, auxiliary machine and electric control box. The production process takes place continuously. This machine is widely used for material crushing in pharmaceutical, chemical, food and other industries.
Technical Parameters
Model | WKS-10 | WKS-20 | WKS-30 | WKS-60 |
Capacity (kg/h) | 10-200 | 20-400 | 30-800 | 50-1200 |
Input size (mm) | ≤10 | ≤12 | ≤12 | ≤12 |
Output size (mesh) | 80-320 | 80-450 | 80-450 | 80-450 |
Total installation power (KW) | 11.5 | 22.5 | 46 | 84.15 |
Rotating speed (RPM) | 5800 | 5800 | 3800 | 3200 |
Installation dimension (mm) | 5410x1660x2500 | 5500x1800x3100 | 9000x2200x4000 | 9000x2700x5280 |
Gross weight (kg) | 850 | 1200 | 1500 | 3200 |
WKS-20 ultra-fine pulverizing unit is designed and developed by our factory to absorb and digest the advantages of foreign countries. It is designed and developed according to my country's national conditions. Beautiful, flexible use, small footprint, wide range of applications and so on. This machine is ideal for crushing and drying non-fibrous materials and minerals. Compared with domestic models, the product has a moderately low particle size and uniform particle size, and is especially suitable for the crushing of heat-sensitive materials such as sugar, plastic powder, and Chinese medicinal materials. This unit is composed of main engine, auxiliary engine, collecting pipeline and electric control device. There is a cyclone dust collector and a filter bag dust collector in the auxiliary machine, which can also be manufactured and used separately according to the requirements of the user. The main machine is equipped with a centrifugal classification device, which can not only complete the crushing, but also has a classification function. Wind selection centrifugal shearing , No screen and no mesh, powder particles can be adjusted arbitrarily, after the material is crushed, it is conveyed to the outlet of the discharge valve by negative pressure to meet the product requirements. This unit is a good machine for crushing materials in the pharmaceutical, food and chemical industries.
