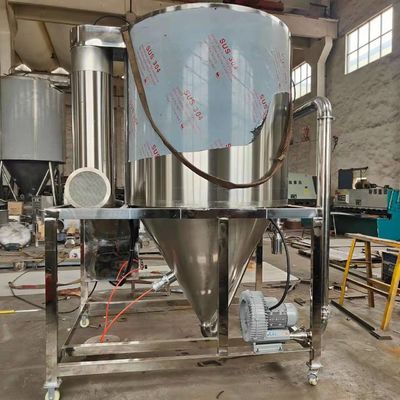

OEM Tea Extract High Speed Centrifugal Spray Dryer Salt Slurry Spray Dryer Industrial
Product Details
OEM High Speed Centrifugal Spray Dryer
,ODM High Speed Centrifugal Spray Dryer
,Salt Slurry Spray Dryer Industrial
Industrial Spray Dryer for Milk and Whey Protein Powder Spray Drying Equipment Electric Heating Atomizer
Tea Extract Centrifugal Atomization Sodium Salt Slurry Centrifugal Spray Dryer

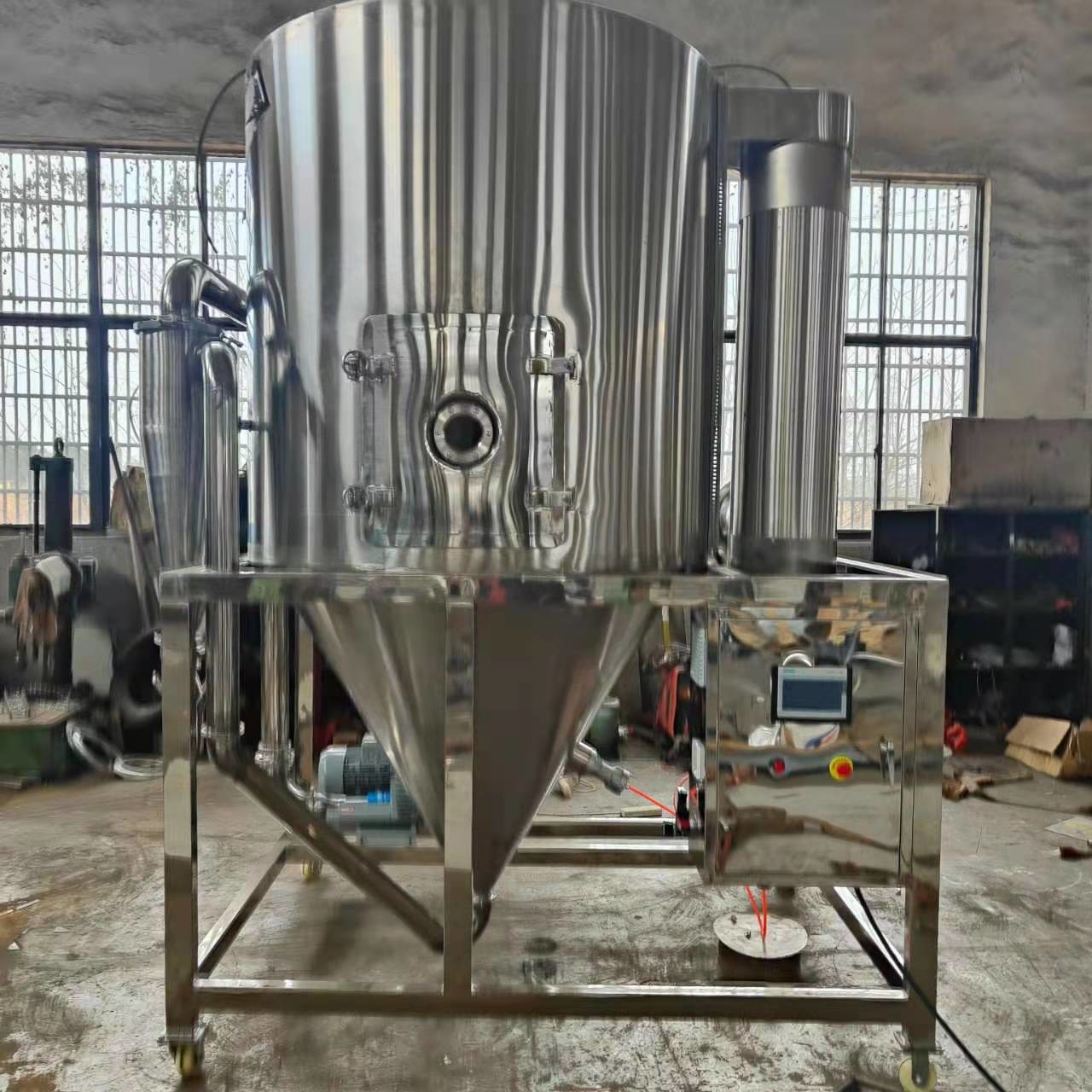

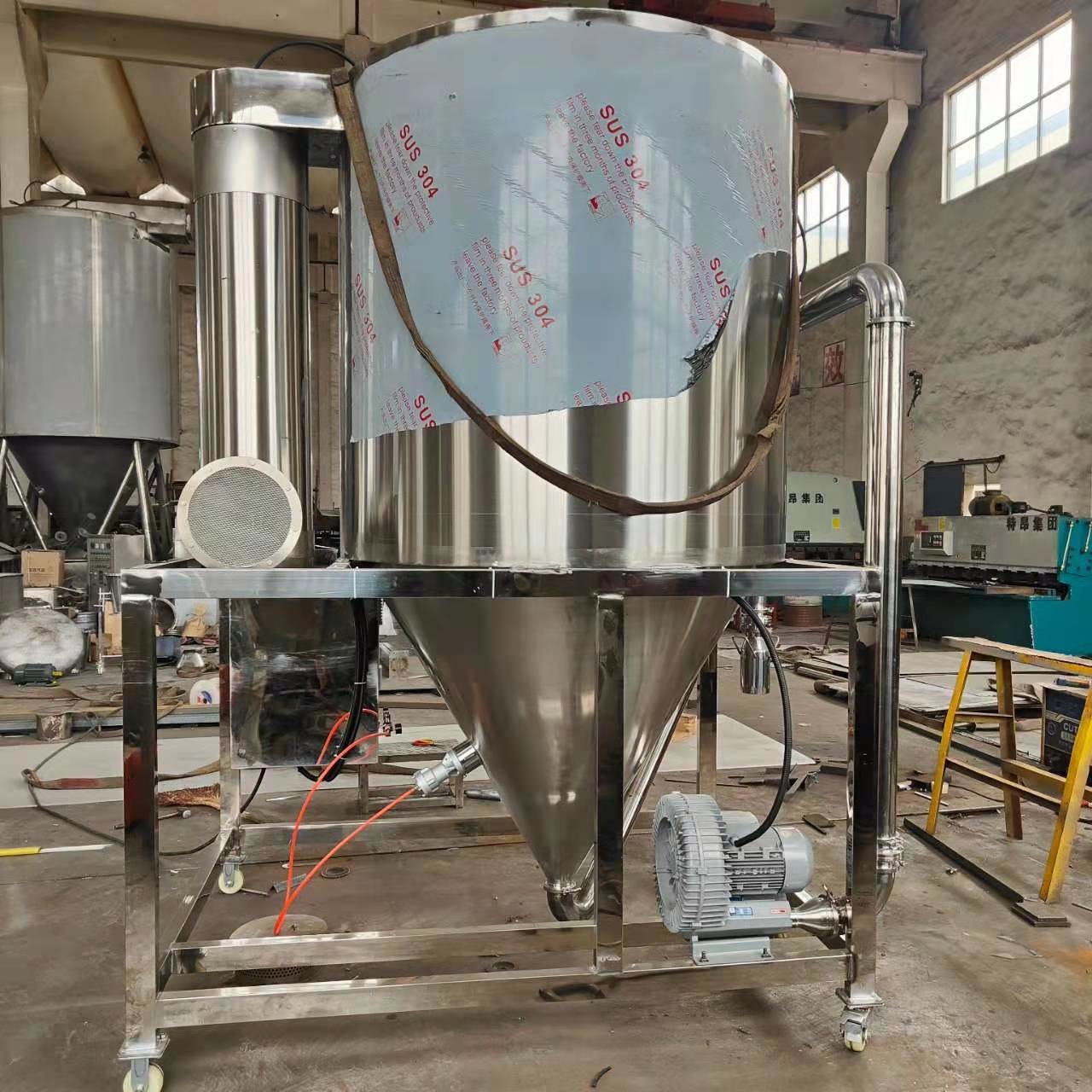

High Speed Centrifugal Spray Dryer
Introduction
The spray machine for drying is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is the most suitable for producing solid powder or particle products from liquid materials, such as: solvent, emulsion, suspension and pumpable paste states, fro this reason, when the particle size and distribution of the final products, residual water contents. Mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technology.
The spray dryer is one of the continuous atmospheric dryers. The liquid material is sprayed with a special device to form a mist and is dried in contact with hot air. For the drying of some heat-sensitive liquids, suspensions, and viscous liquids, such as milk, eggs, tannins, and drugs. Also used for drying fuels, intermediates, soap powder, and inorganic salts.
Technical parameters
| Specification | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 |
| Inlet temp. (℃) | 140-350 | ||||
| Outlet temp. (℃) | 80-90 | ||||
| Spray form | High speed centrifugal atomization | ||||
| Water evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 |
| Atomizer speed(rpm) | 25000 | 22000 | 21500 | 18000 | |
| Diameter of atomizing disk(mm) | 50 | 120 | 150 | ||
| Electric heating power(kw) | 9.6 | 31.5 | 60 | 81 | 99 |
| Recovery rate of dry powder (%) | 99 | ||||
| Occupied length(m) | 1.6 | 4 | 4.5 | 5.2 | 7 |
| Occupied width (m) | 1.1 | 2.7 | 2.8 | 3.5 | 5.5 |
| Height of Tower(m) | 1.75 | 4.5 | 5.5 | 6.7 | 7.2 |
| Lifting height of nozzle(m) | 2.5 | 2.5 | 3.2 | 3.2 | |
Product Features
1. Rapid drying speed, which just takes 5-15 seconds.
2. Suitable for thermo-sensitive material and keep the origin state.
3. Simple processing and easy operation, which is suitable for continuous production.
4. The product has a good degree of uniformity, liquidity and dissolubility with high quality and purity.
5. Can adjust the product diameter, density and water content in some degree which is convenient to control and manage.
Working Principle

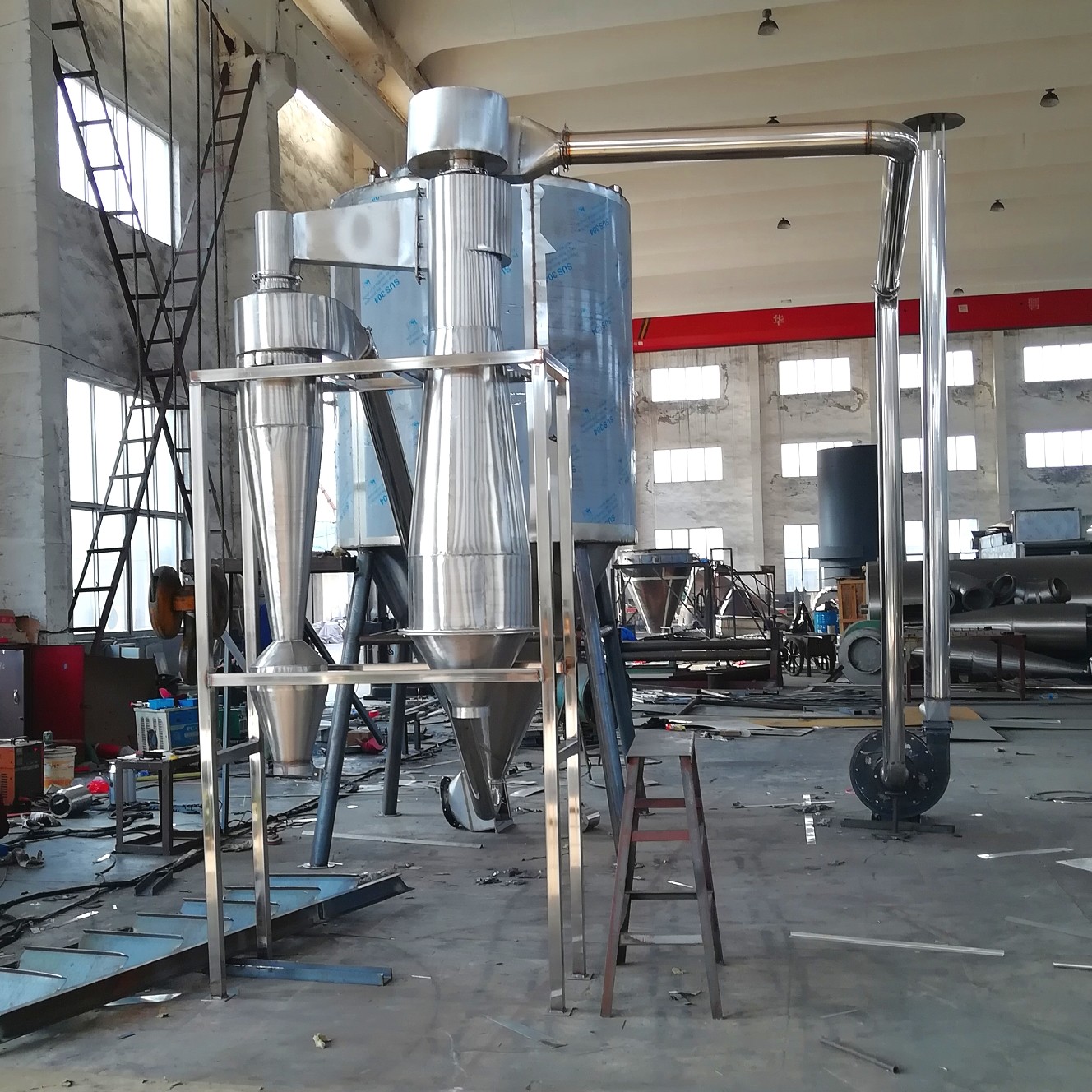

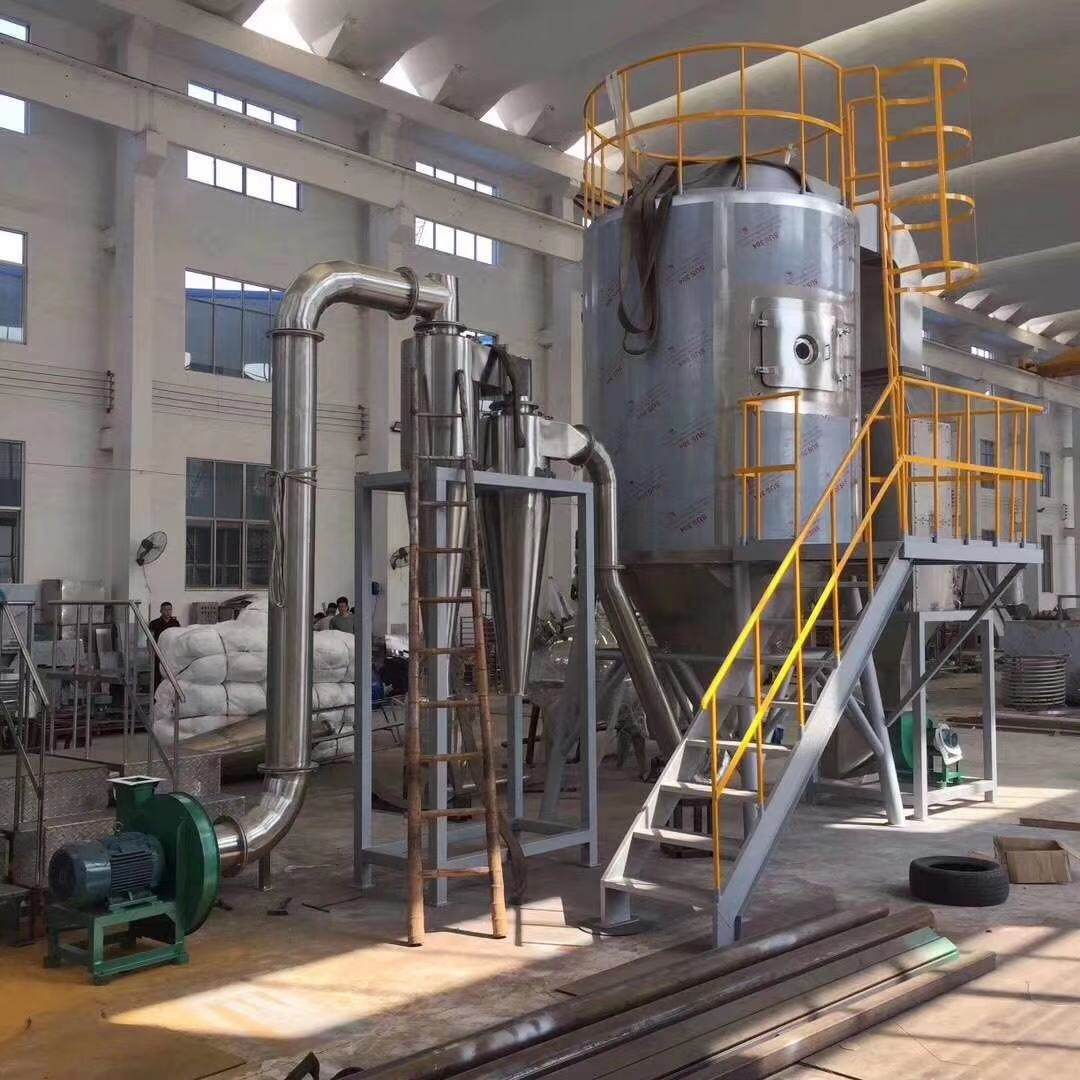

The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a finely atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
Application
Food and plants: oats, chicken juice, coffee, instant tea, seasoning spices meat, protein, soybeans, peanut protein, hydrolysates and so on.
Carbohydrates: corn steep liquor, corn starch, glucose, pectin, maltose, potassium sorbate, and the like. Chemical industry: battery raw materials, basic dye pigments, dye intermediates, fertilizer, formaldehyde silicic acid, catalysts, agents, amino acids, silica, and so on.
Ceramics: alumina, ceramic tile materials, magnesium oxide, talcum powder and so on.
-
