Product Details:
|
| Name: | High Speed Centrifugal Spray Dryer | Heat Source: | Gas Or Electric Or Steam Heating |
|---|---|---|---|
| Capacity: | 25kg/h | Application: | Liquid Form Material, Extracts |
| Condition: | New | Type: | Spray Drying Equipment |
| Installation: | Engineer Guide | Control: | PLC Touch Screen/button Type |
| High Light: | Starch High Speed Centrifugal Spray Dryer,PLC High Speed Centrifugal Spray Dryer,Chemical Stainless Steel Spray Dryer |
||

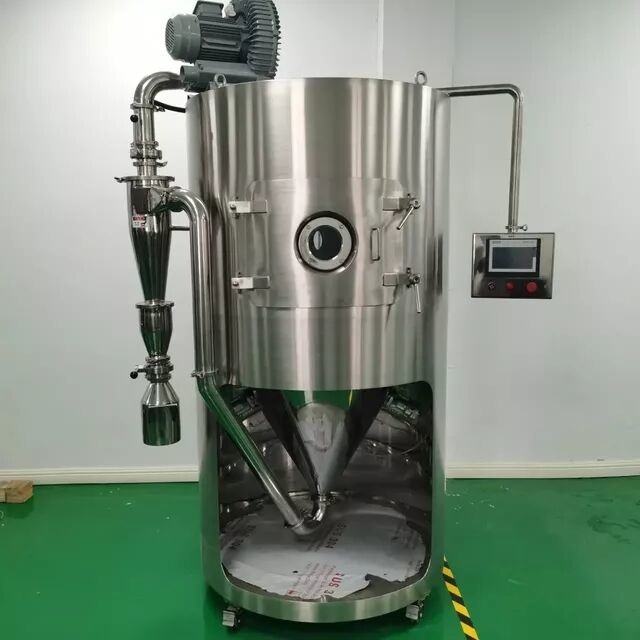

High Speed Centrifugal Spray Dryer
Starch Granule Pigment Food Chemical Stainless Steel Centrifugal Spray Dryer
Introduction
Brief introduction: In this machine, the fully-closed structure is adopted, all parts are made of stainless steel, and there is
the 3-stage purifying device. After the filtering, the air meets the 100000-grade standard. There are cooling devices for the
reactor, the temperature of the container wall is less than 80℃, and even the raw products are stayed on the wall, will not be burned. The powder rate is as high as more than 95%, and there is no powders mixing or wall hanging.
The spray dryer is one of the continuous atmospheric dryers. The liquid material is sprayed with a special device to form a mist and is dried in contact with hot air. For the drying of some heat-sensitive liquids, suspensions, and viscous liquids, such as milk, eggs, tannins, and drugs. Also used for drying fuels, intermediates, soap powder, and inorganic salts.
Technical parameters
| Specification | LPG-5 | LPG-25 | LPG-50 | LPG-100 | LPG-150 |
| Inlet temp. (℃) | 140-350 | ||||
| Outlet temp. (℃) | 80-90 | ||||
| Spray form | High speed centrifugal atomization | ||||
| Water evaporation(kg/h) | 5 | 25 | 50 | 100 | 150 |
| Atomizer speed(rpm) | 25000 | 22000 | 21500 | 18000 | |
| Diameter of atomizing disk(mm) | 50 | 120 | 150 | ||
| Electric heating power(kw) | 9.6 | 31.5 | 60 | 81 | 99 |
| Recovery rate of dry powder (%) | 99 | ||||
| Occupied length(m) | 1.6 | 4 | 4.5 | 5.2 | 7 |
| Occupied width (m) | 1.1 | 2.7 | 2.8 | 3.5 | 5.5 |
| Height of Tower(m) | 1.75 | 4.5 | 5.5 | 6.7 | 7.2 |
| Lifting height of nozzle(m) | 2.5 | 2.5 | 3.2 | 3.2 | |
Working Principle
The air is filtered and heated into the top of the dryer air distributor, hot air into the spiral evenly into the drying chamber. The material liquid is sprayed into a finely atomized liquid droplet through the high-speed centrifugal nebulizer at the top of the tower body, and can be contacted with the hot air in a very short time and can be dried into finished products. The finished product is continuously discharged from the bottom of the drying tower and the cyclone, and the exhaust gas is drained by the draft fan.
Features:
1. With the 3-stage purifying device, the air meets the 100000-grade standard.
