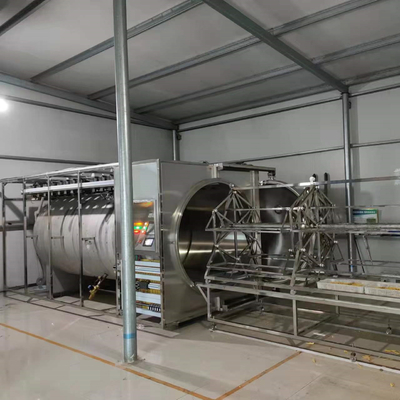

Pet Treats Microwave Vacuum Dryer

Microwave drying machine vacuum oven dryer for pet treats dog food chicken breast meat

Vacuum Microwave dryer

Working principle
There is a direct relations between evaporation temperature andatmospheric pressure during vacuum drying oven processing, the lower the atmospheric pressure, the lower the boiling point of water. In an atmosphere,the water boiling point is 100°C.Therefore, we can dry the material under the low temperature under thevacuum conditions.Deliver of this power will be not affect underthe vacuum conditions.Then the efficiently will be high absolutely.Also that canavoid this problem that is only the surface is dry and the gas can be dischargedeasily.Raw material can be heated quickly by microwave heating. The energyconsumption of this kinds machine can reduce more than 10% compare with sametype machine.Therefore, it has high quality, low cost, high yield, high efficiency,stable equipment operation, etc.

Microwave heating is a kind of radiation heating. It is the direct effect of microwaves on the object, so that the inside and outside are heated at the same time, and there is no need to transfer heat through convection or conduction, so the heating speed is fast, the thermal efficiency is high, the processing time is short, and the temperature inside and outside the material is uniform. Therefore, Energy saving, high drying efficiency and good drying quality. Intelligent static microwave vacuum drying equipment is a new type of microwave energy application equipment that combines microwave energy technology and vacuum technology and is intelligently controlled through high-tech. It combines the advantages of microwave drying and vacuum drying, while overcoming conventional vacuum. The disadvantages of high drying temperature, long time and high energy consumption. In the drying process of general materials, the drying temperature is 30-60 degrees Celsius, which has the advantages of high drying output, good quality and low processing cost. At the same time, the intelligent control system can accurately control moisture, etc. advantage.

In addition, when drying at low temperature and low pressure, the oxygen content is low, and the oxidation reaction of the dried material is weakened and slowed down, thereby ensuring the flavor, appearance and color of the material, and it is easy to dry heat-sensitive materials, especially for traditional Chinese medicine extracts, beef sauce, chemical raw materials , low-temperature drying of agricultural products, has its unique advantages.

Vacuum microwave dryer is mainly used for dehydration and drying of high value-added and heat-sensitive agricultural and sideline products, health products, food, medicinal materials, fruits and vegetables, chemical raw materials, etc.; it is used for low-temperature concentration of chemical products, removal of crystal water, enzyme Drying of preparations, etc.; vacuum extraction of Chinese herbal medicines; suitable for laboratories in scientific research institutions.

FAQ:

1. Question: What information should be provided in order to get a quotation of microwave vacuum dryer?
Answer: Our Sintering oven can be customerized. Before we can work out a detailed quotation, we have to know the following information:
1) What are you going to dry?
2) What is the handing capacity per batch?
3) Max temperature, heat-up rate, temperature uniformity.

2. Question: What is lead time?
Answer: 30-45 working day.

3. Question: How the dryer will be delivered ?
Answer: FOB LCL or FLC for shipping

4. Question: What standard models do you have?
Answer: We have the following standard models:

5.Question: What standard models do you have?
Answer: We have the following standard models:
