Product Description

The Lpg-25 Is A Versatile, Mid-Scale Pilot Or Small-Production Unit Capable Of Evaporating 25 Kg/H Of Water. For The Food Industry, Using A Combination Of Steam And Electricity Is A Strategic Choice That Balances Energy Efficiency With The Precise Temperature Control Required For Heat-Sensitive Food Products.

Main Principle:

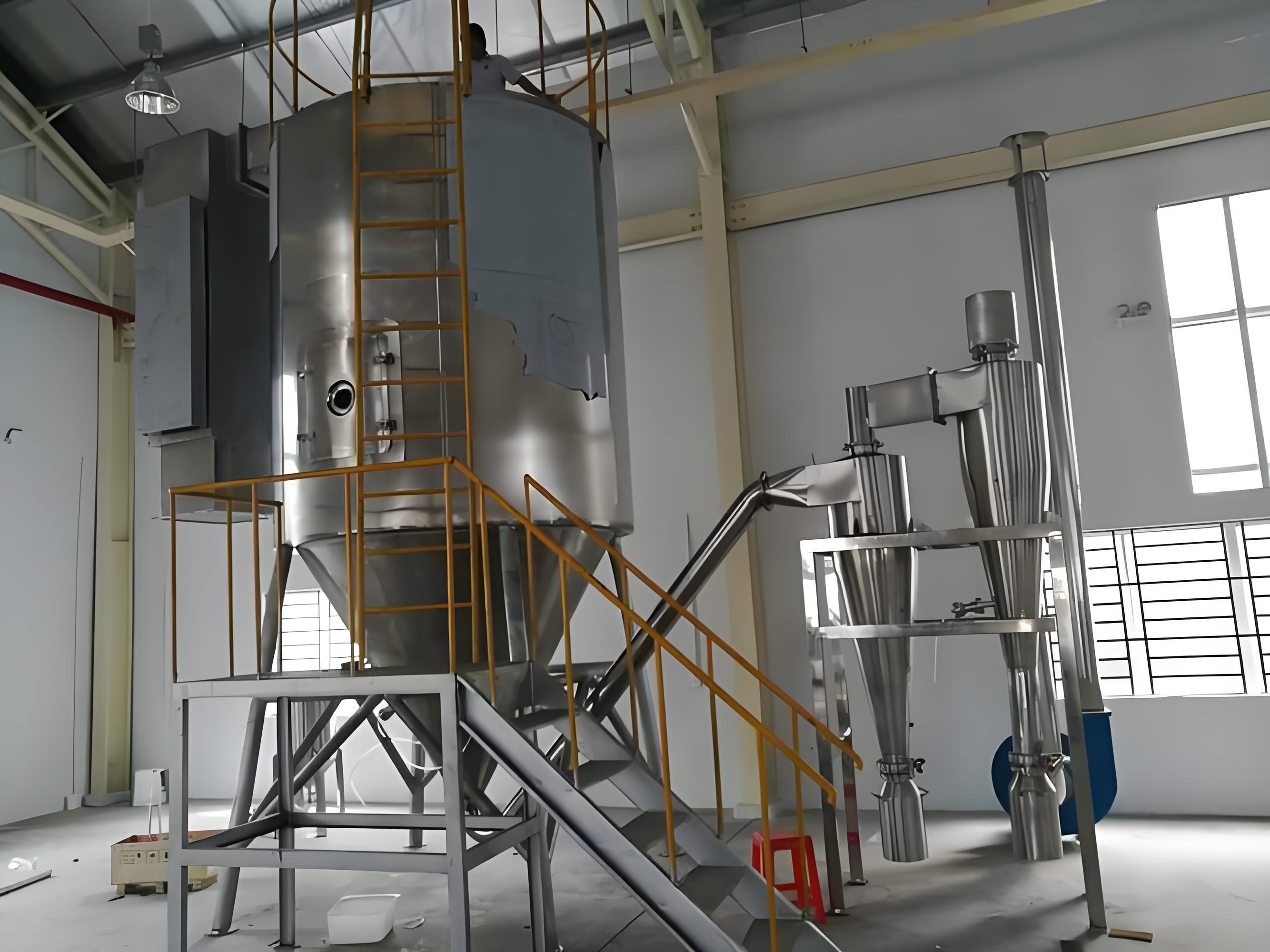

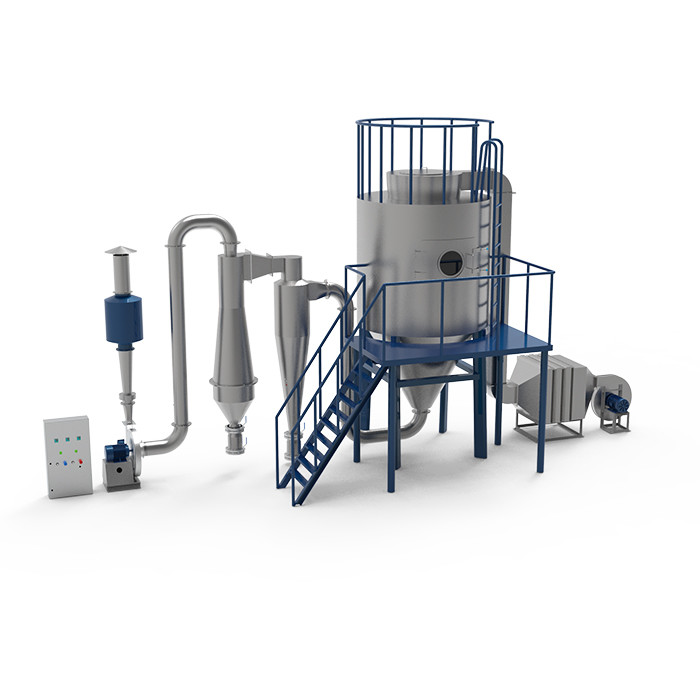

After air gets filtered and heated,it enters into an air distributor on the top of the dryer.The hot air enters into the drying room in a uniformly spiral form.Passing through the high speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Through a very short time of contacting the hot air,materials get dried.The final products discharge continuously from the bottom of the drying tower and from the cyclones.The waste gas will be discharged from blower.

Feature:

High drying speed atomizes material into liquid,the surface of the material increase greatly.It only takes few seconds to evaporate 95-98% water in a hot air flow.This is especially suitable for drying the heat sensitive materials.

The final product has features of good uniformity,flow ability,and solubility.It is in a high purity and quality as well.

The production procedure is simple,operation and control are easy.For material contains 40-60% water(special material can contain more than 90%),it can be dried into powder or particles once a time.After the drying process,there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.The product particle diameters,losseness and water contents can be adjusted through changing the operation condition whining a certain range.It is very convenient to carry out control and management.

Nowadays, Changzhou Xiaoli Drying Equipment Co., Ltd have customers both in China and abroad.Foreign customers such as Russian,East Europe,Middle East,South America,North America,East Asia,Southeast Asia, Africa,etc.

Technical Specifications

Note: The rate of moisture evaporation depends on the characteristics of the material, as well as the inlet air temperature and outlet temperature. When the outlet temperature is 90°C, the corresponding moisture evaporation curve is shown in the figure above (provided for selection reference). As products undergo continuous updates, relevant parameters are subject to change without prior notice.

Ordering Information

◎ Feedstock Name and Physical Properties: Solids content (or moisture content), viscosity, surface tension, and pH value.
◎ Properties of Dried Powder: Bulk density, permissible residual moisture content, particle size, and maximum permissible temperature.
◎ Production Capacity: Required output and daily operating hours.
◎ Available Energy Sources: Steam pressure and supply volume; electrical capacity; available supply of coal, oil, or gas.
◎ Control Requirements: Whether automatic control is required for inlet and outlet temperatures.
◎ Powder Collection Requirements: Whether a bag filter is required; environmental regulations regarding exhaust gas emissions.
◎ Other Special Requirements.

Application:

Chemical Industry: Sodium (and Potassium) Fluoride, Basic Dyes and Pigments, Dye Intermediates, Compound Fertilizers, Formaldehyde Silicates, Catalysts, Sulfating Agents, Amino Acids, Precipitated Silica, etc.

Plastics and Resins: AB and ABS Emulsions, Urea-Formaldehyde Resins, Phenolic Resins, Melamine-Formaldehyde Resins, Polyethylene, Polyvinyl Chloride (PVC), etc.

Food Industry: High-Fat Milk Powder, Casein, Cocoa Milk Powder, Milk Substitutes, Blood Meal, Egg White (and Yolk), etc.

Foodstuffs and Plant Products: Oats, Chicken Extract, Coffee, Instant Tea, Seasonings and Spices, Meat Proteins, Soybeans, Peanut Proteins, Hydrolyzates, etc.

Carbohydrates: Corn Steep Liquor, Corn Starch, Glucose, Pectin, Maltose, Potassium Sorbate, etc.

Ceramics: Aluminum Oxide, Tile Materials, Magnesium Oxide, Talc Powder, etc.
