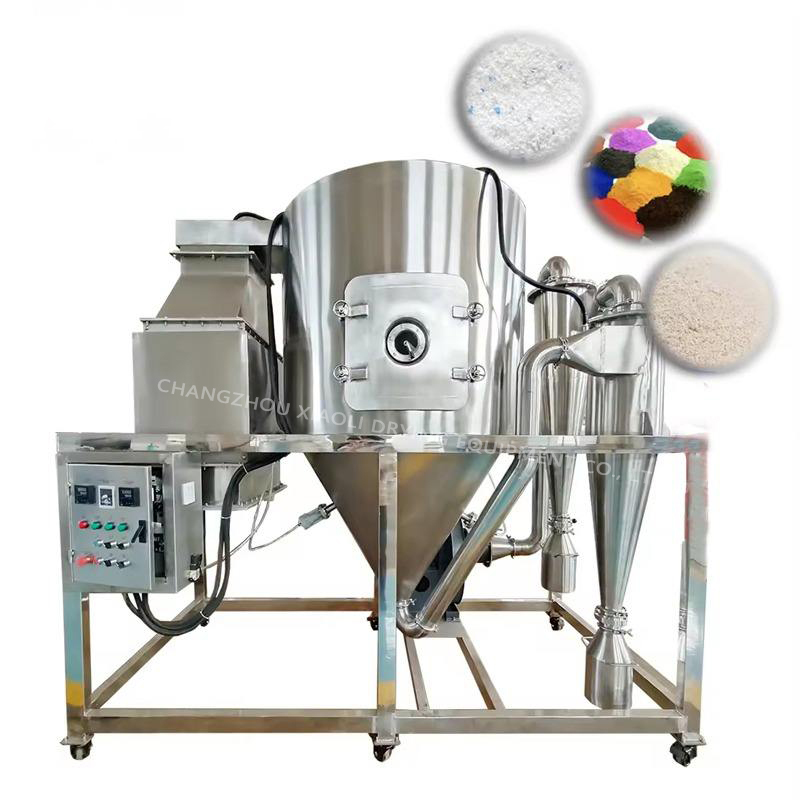

LPG-150 High Speed Centrifugal Spray Dryer Machine For Cow Blood Powder

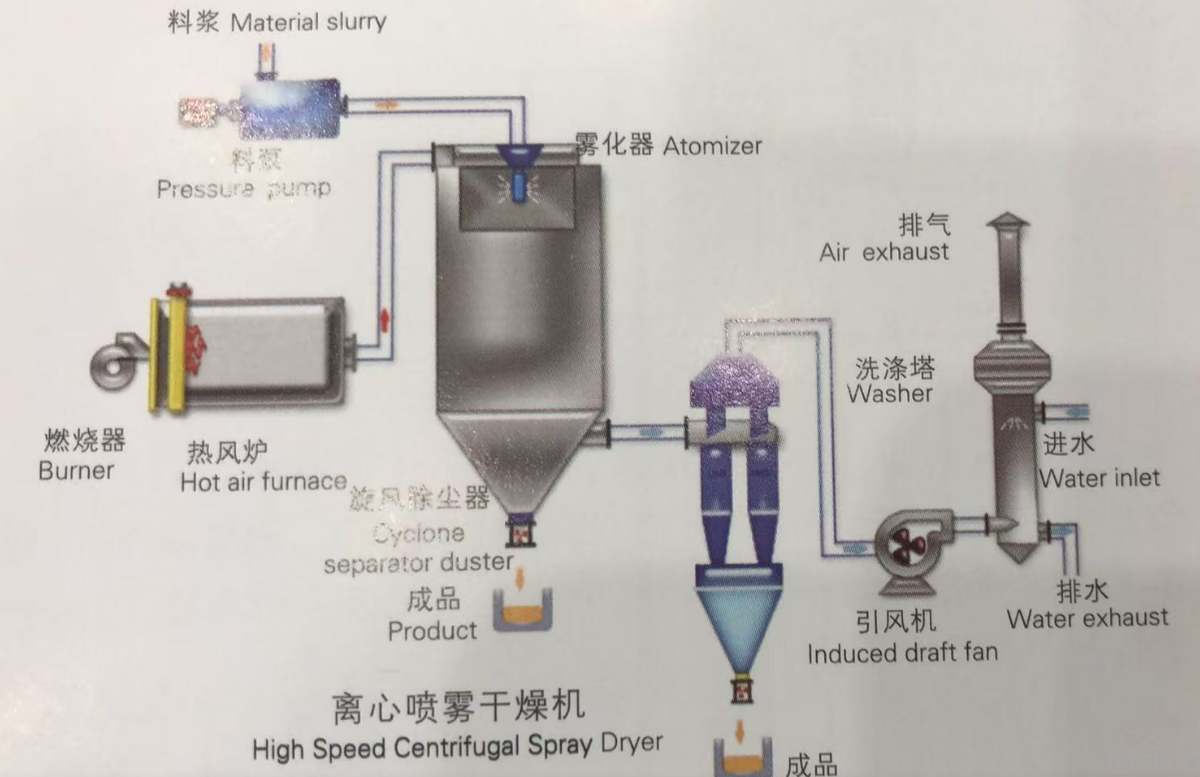

Spray drying transforms liquid whey concentrate into a fine, soluble powder by atomizing it into a hot air chamber. Energy-efficient spray dryers enhance this process through:
Electric Heat Pumps: Technologies use electric heat pumps to absorb waste energy from the dryer itself, other processes, or even ambient air. This energy is then used to heat the drying air, significantly reducing the need for fossil fuels and cutting energy consumption by up to 49% .
Precise Process Control: Advanced sensors and meters monitor key parameters like temperature, humidity, and shear rate (which affects viscosity). This precise control allows the dryer to operate at optimal conditions, minimizing excess heat and reducing energy waste .
Heat Recovery Systems: Some dryers are equipped with systems that recapture heat from the exhaust air and reuse it to preheat incoming air, lowering the overall heating load
Technical Specifications
| Model |
LPG-150 |
| Inlet Temperature |
140-350 Automatic Control |
| Outlet Temperature |
80-90 |
| Max. Moisture Evaporation Capacity (kg/h) |
150 |
| Centrifugal Spray Head Drive Type |
Mechanical Transmission |
| Max. Speed (r.p.m) |
15000 |
| Spray Disc Diameter (mm) |
150 |
| Heat Source |
Steam + Electricity; Fuel Oil, Natural Gas, Hot Air Furnaces |
| Max. Electric Heating Power (kW) |
99 |
| Overall Dimensions (L × W × H) (m) |
5.5×4×7 |
| Dry Powder Recovery (%) |
≥95 |
Note: The rate of moisture evaporation depends on the characteristics of the material, as well as the inlet air temperature and outlet temperature. When the outlet temperature is 90°C, the corresponding moisture evaporation curve is shown in the figure above (provided for selection reference). As products undergo continuous updates, relevant parameters are subject to change without prior notice.
Ordering Information
◎ Feedstock Name and Physical Properties: Solids content (or moisture content), viscosity, surface tension, and pH value.
◎ Properties of Dried Powder: Bulk density, permissible residual moisture content, particle size, and maximum permissible temperature.
◎ Production Capacity: Required output and daily operating hours.
◎ Available Energy Sources: Steam pressure and supply volume; electrical capacity; available supply of coal, oil, or gas.
◎ Control Requirements: Whether automatic control is required for inlet and outlet temperatures.
◎ Powder Collection Requirements: Whether a bag filter is required; environmental regulations regarding exhaust gas emissions.
◎ Other Special Requirements.
About Us
Changzhou Xiaoli Drying Equipment Co., Ltd. is a professional dryers and granulators supplier based on real manufacturing factory which established in 2010. We are able to provide customized design based on different raw material. By working with senior engineers, Xiaoli Technology is also engaged in dryers technical researching & package solution integrating work.
Free trial and wet material study are available for our customers.Xiaoli drying has skilled and experienced after sales service team who can reach customers in short notice for providing professional installation, commissioning and training services
Our machines are energy saving, environmental friendly, and high cost efficient. With good quality control, our typical users are across 50 countries all around the world such as USA, Canada, Spain, Singapore, New Zealand, Brazil, Japan, Korea, Indonesia, Malaysia, Vietnam etc.
Xiaoli drying is your reliable supplier in drying and granulating field!
