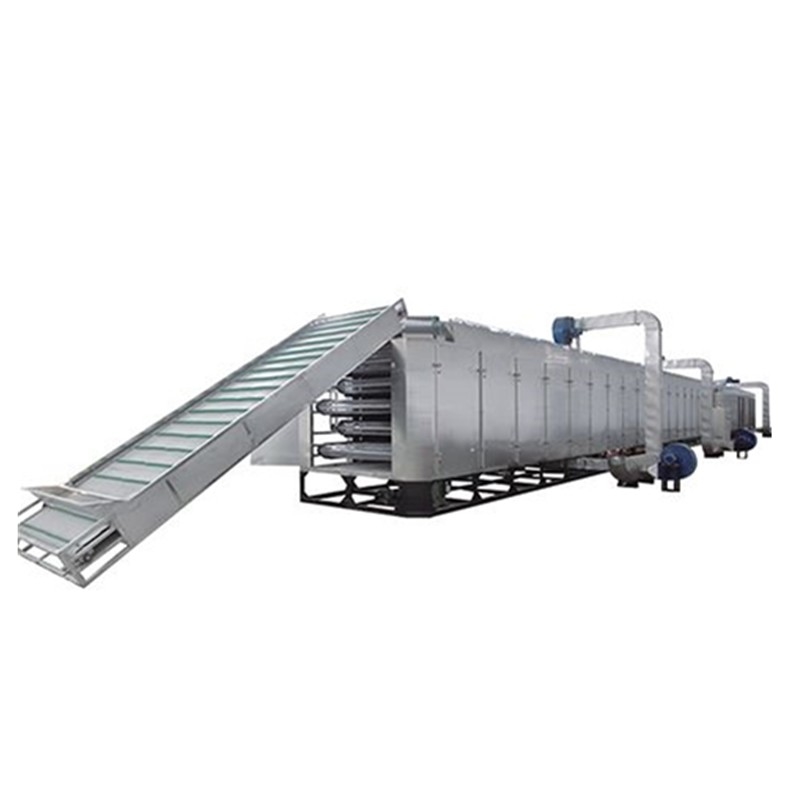

Large Capacity Continuous Belt Dryer Hot Air Circulation Industrial Drying Machine
Product Details
Large Capacity Continuous Belt Dryer
,25kw Continuous Belt Dryer
,Continuous Belt Industrial Drying Machine
Conveyor Belt Dryer
Large Capacity Continuous Belt Dryer Hot Air Circulation Drying Machine
Introduction
Multi-layer belt hot air circulation dryer is a continuous drying equipment of batch production.
Widely used for flakes, strips, granular materials with better permeability, especially for dehydrated vegetables and Chinese medicine pieces with high water content but does not allow high temperature;
Heat source can be gas, coal, steam, biomass, oil, electricity and so on.
Advantages
Fast drying speed, high evaporation intensity and good product quality.
Working principle

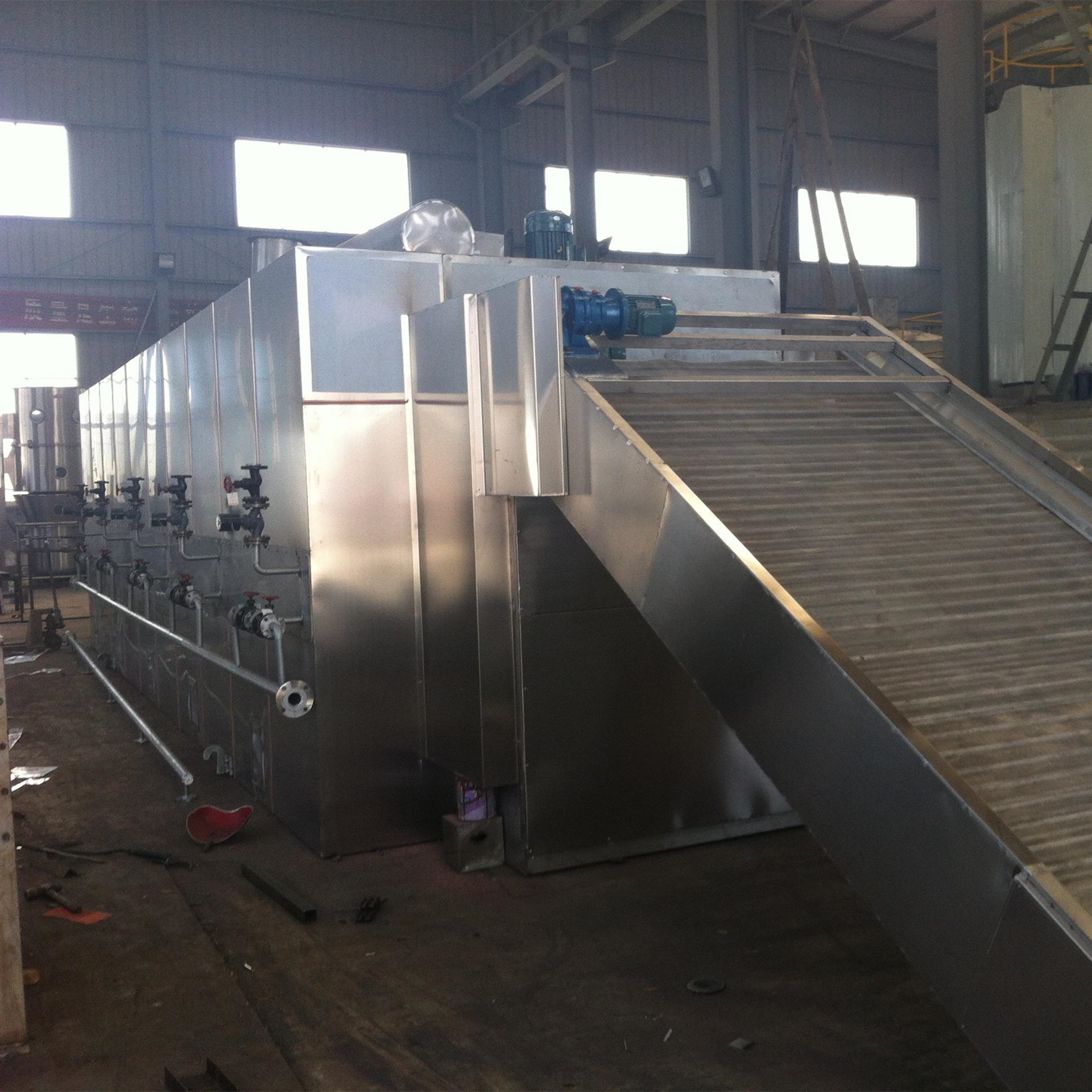

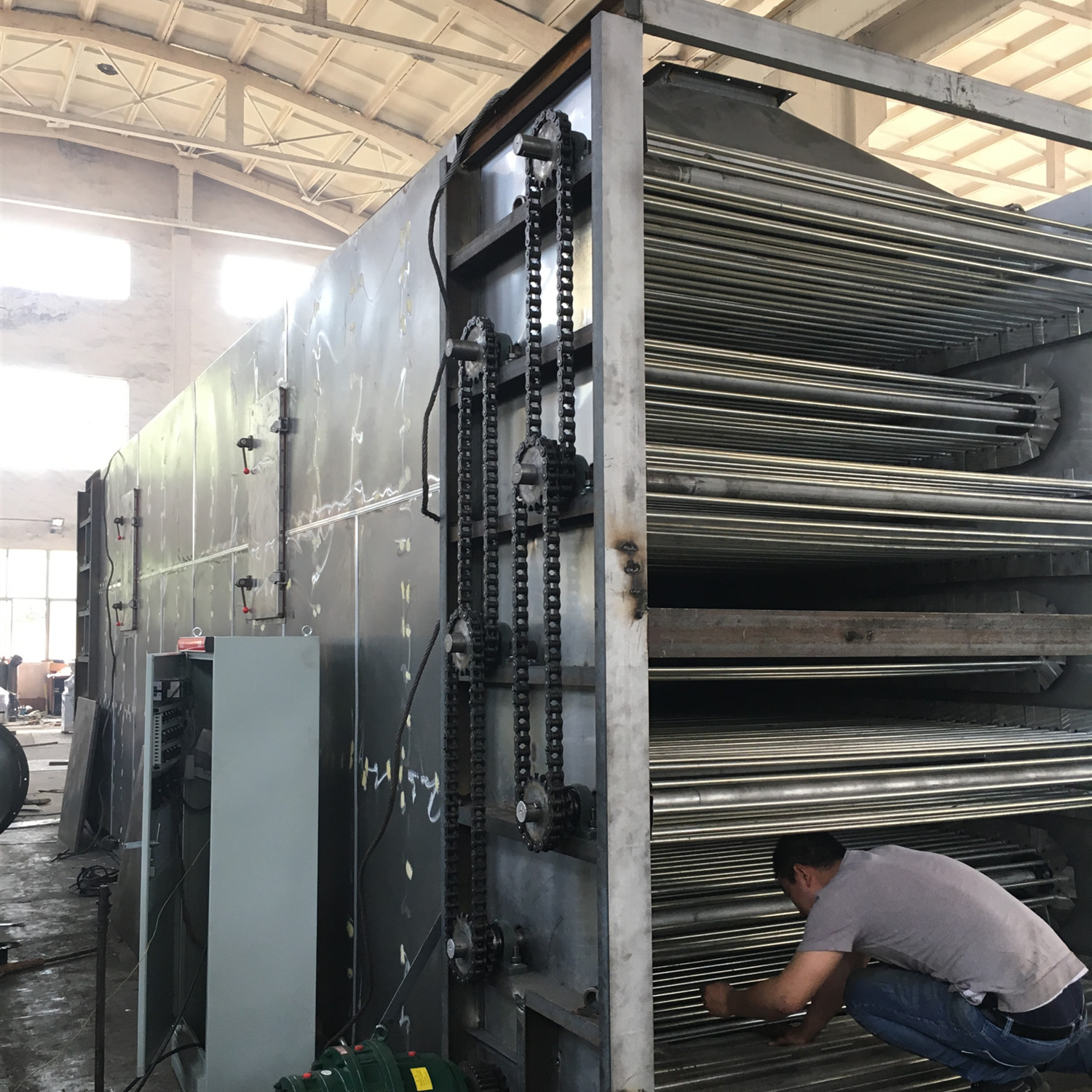

Products are sent by conveyor to feeding inlet and continuously spread evenly to the upper transmission belt , upper belt forwards through heated and sealed tunnel and transfers to the second layer belt ……
Finally dried material is discharged from the outlet to complete the drying process.
Technical parameters
| Spec. | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | |
| Unit number | 4 | 5 | 4 | 5 | 4 | 5 | 10 | |
| Belt width | 1.2 | 1.6 | 2 | |||||
| Belt length | m | 8 | 10 | 8 | 10 | 8 | 10 | 20 |
| Thickness of the material | mm | 10 to 80 | ||||||
| Temperature | ℃ | 50-140 | ||||||
| Steam pressure | Mpa | 0.2-0.8 | ||||||
| Steam consumption | kg/h | 120-300 | 150-375 | 150-400 | 180-500 | 180-500 | 225-600 | 450-1200 |
| Drying time | h | 0.2-1.2 | 1.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 |
| Drying capacity | kg H2O/h | 60-160 | 80-200 | 850-220 | 100-260 | 100-260 | 120-300 | 240-600 |
| Power | kW | 11.4 | 13.6 | 14.6 | 18.7 | 19.7 | 24.5 | 51 |
| Overall dimensions | m | 9.56*1.49*2.3 | 11.56*1.49*2.3 | 9.56*1.9*2.4 | 11.56*1.9*2.4 | 9.56*2.32*2.5 | 11.56*2.32*2.5 | 21.56*2.32*2.5 |
| Weight | kg | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 14000 |
| Note: For the drying temperature at 250-350 ℃, the company can design specially according to the actual material | ||||||||
-
