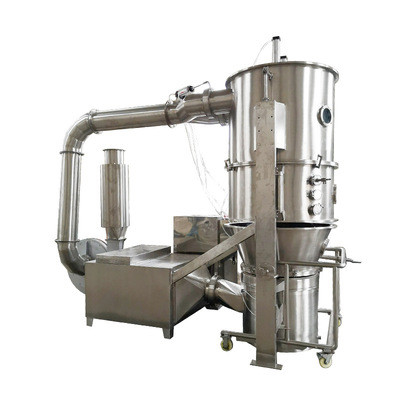

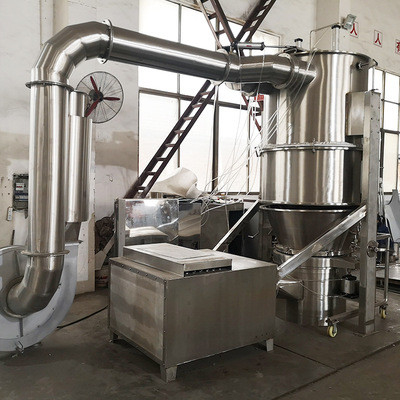

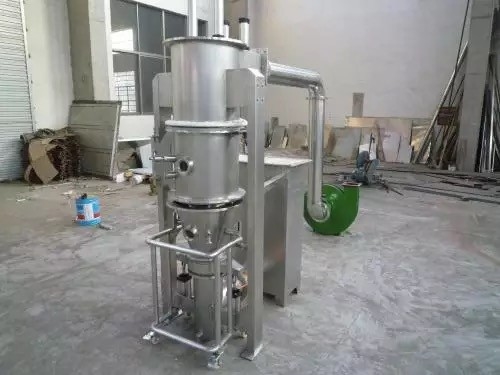

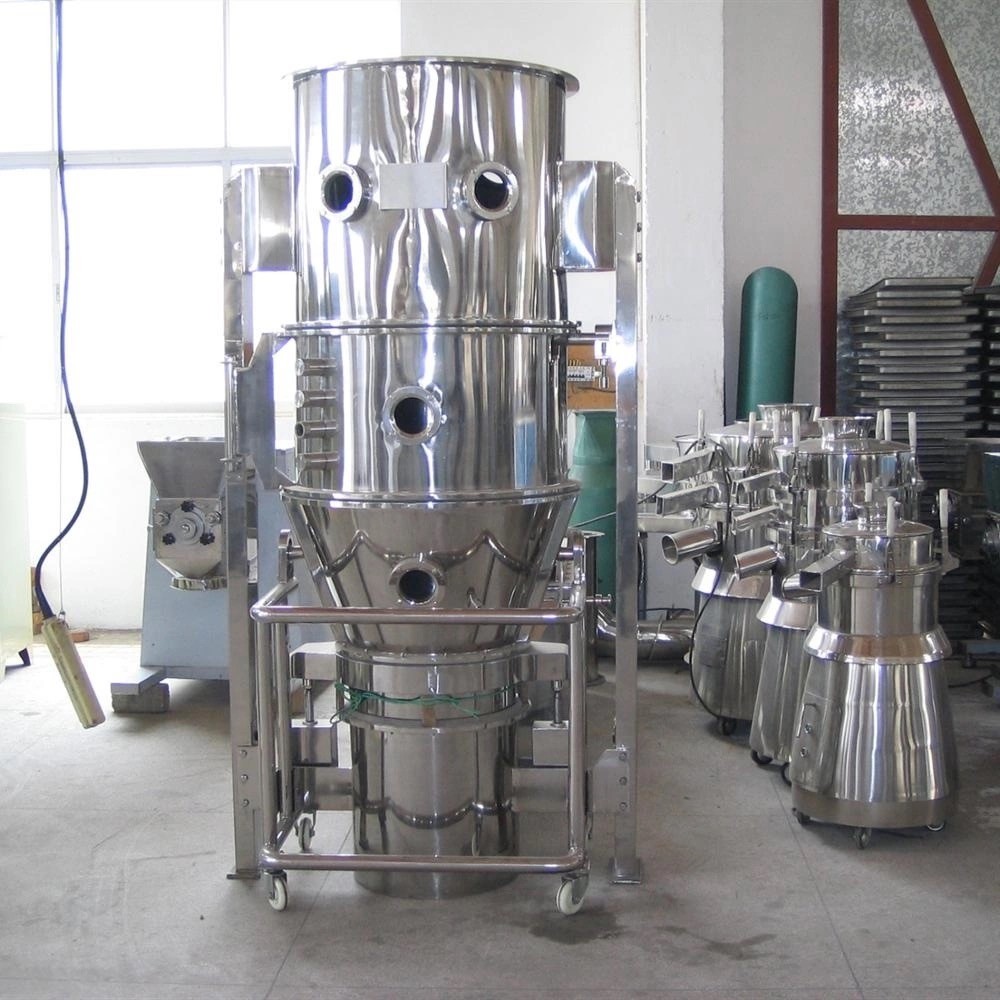

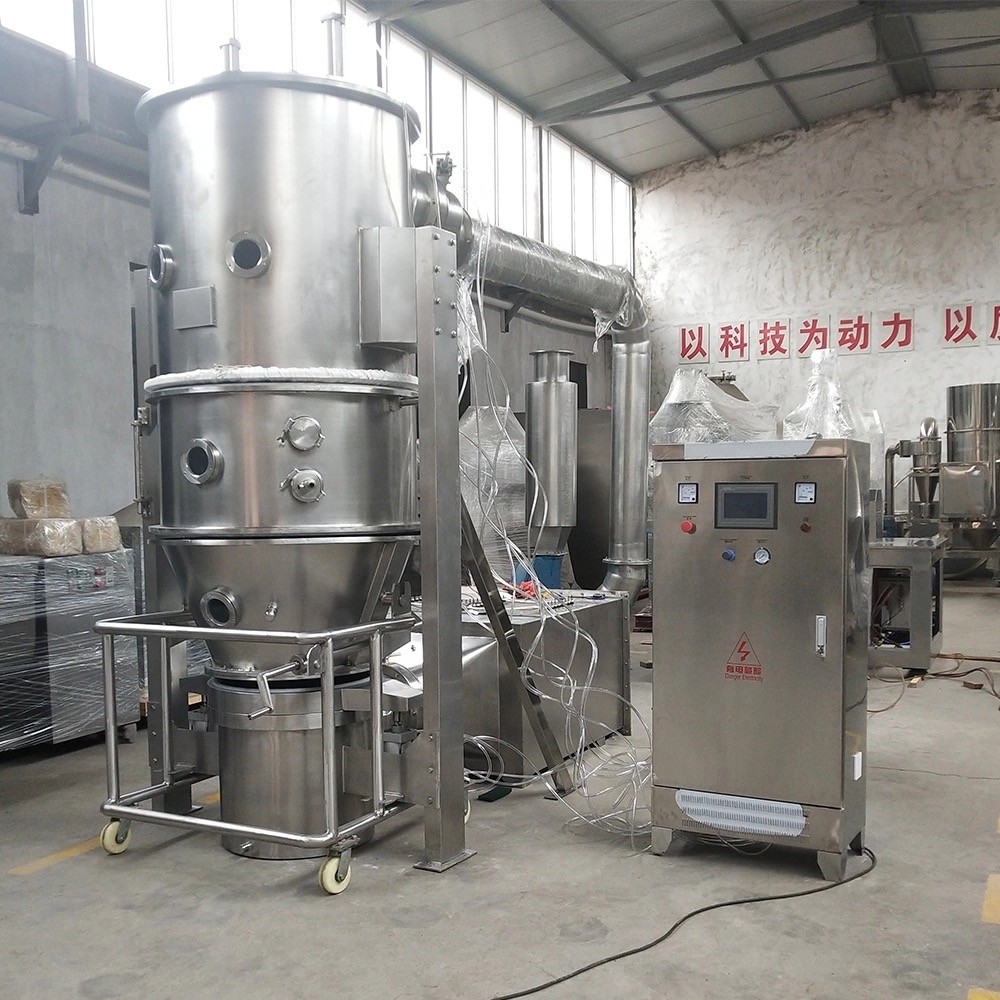

304SS 420L Fluidized Bed Dryer Granulating Coating Drying Machine

Fluidized Bed Dryer Granualting and Coating Granulaion Machine Granulator

Fluid Bed Granulator Dryer

Introduction

Put the powder for granulation or the granular material for coating into the fluidized bed. The cold air enters from the heating chamber at the rear of the main engine. After the primary effect and intermediate effect filter, the heater is heated to the temperature required by the inlet air and then enters the fluidized bed. It is fluidized in the bed, and the binder for granulation is sent to the two-fluid atomizer by the infusion pump, and sprayed to the fluidized material after atomization. The powders bridge each other and gather into granules and grow up or form a film on the material to be coated. After the water volatilizes, it is taken out of the machine by the exhaust air.

Technical parameters

Equipment principle

The material is suspended under the action of clean hot air flow (negative pressure) to form a fluidized state, and its surface is in full contact with the hot air, and the heat is evenly heated to a heat exchange state, which has extremely high efficiency. Equipped with a suitable spray system and further improvements in the functional structure of the fluidized bed, it appropriately exhibits the characteristics of fluidized bed spray drying granulation and coating, that is, it has become a kind of drying, granulation, and coating. Use process equipment.

Features

There is a sewage discharge device at the bottom of the host, which can quickly drain the accumulated water when cleaning the machine;

Complete mixing, granulation and drying in the same container, reducing the process;

Operate in a closed container without flying dust and improve the operating environment;

The filter bag adopts antistatic filter material, and the equipment is safe to operate;

The binder atomizer adopts a multi-fluid spray gun, which is uniformly atomized and has a high qualified rate of finished products;

Round container is used for easy washing; the part in contact with materials is made of stainless steel;

Adopt cylinder jack-up seal, reliable seal and simple operation;

The whole machine has good sealing performance and negative pressure operation.

Through the powder system granulation, the fluidity is improved and the dust flying is reduced.

Through powder granulation, its solubility is improved.

It adopts tipping and unloading, which is convenient, rapid and thorough, and can also design an automatic feeding and discharging system as required.

Sealed negative pressure operation, the gas is filtered. Easy to operate and easy to clean, it is an ideal equipment that meets the requirements of "GMP"

The drying speed is fast, the temperature is uniform, and the granulation time of each batch is generally 15-45 minutes.

Mixing-granulating-drying-cooling-completed in one machine.

Adopting multi-fluid anti-blocking spray gun, the material is uniform, and the qualified rate of finished products is greatly improved.

The control system is: (a) frequency conversion speed regulation (optional), (b) with positioning system, (c) working timing.

Above FL200 is equipped with a vacuum automatic feeding system to reduce the labor intensity of workers

A quick cooling system can be installed according to material requirements.

Scope of application

Pharmaceutical granulation and coating

Granulation: tablet granules, granules for granules, granules for capsules.

Coating: granule, pill protective layer, color preparation, slow release, film, enteric coating.

Food granulation and coating

Sugar, coffee, cocoa powder, cream, powdered juice, amino acids, seasonings, puffed food.

Granulation of pesticides, pigments, dyes

Drying of powder, granule and block materials
