Product Details:
|
Name: | Hollow Paddle Dryer | Material: | 304 Stainless Steel Or Carbon Steel |
---|---|---|---|
Heating Area: | 9 Square Meters | Power: | 4kW |
Heat Source: | Gas Or Electric Or Steam Heating | Speed: | 10 To 25rpm |
High Light: | 4KW Hollow Paddle Dryer,25rpm Hollow Paddle Dryer,10rpm Sludge Drying Machine |

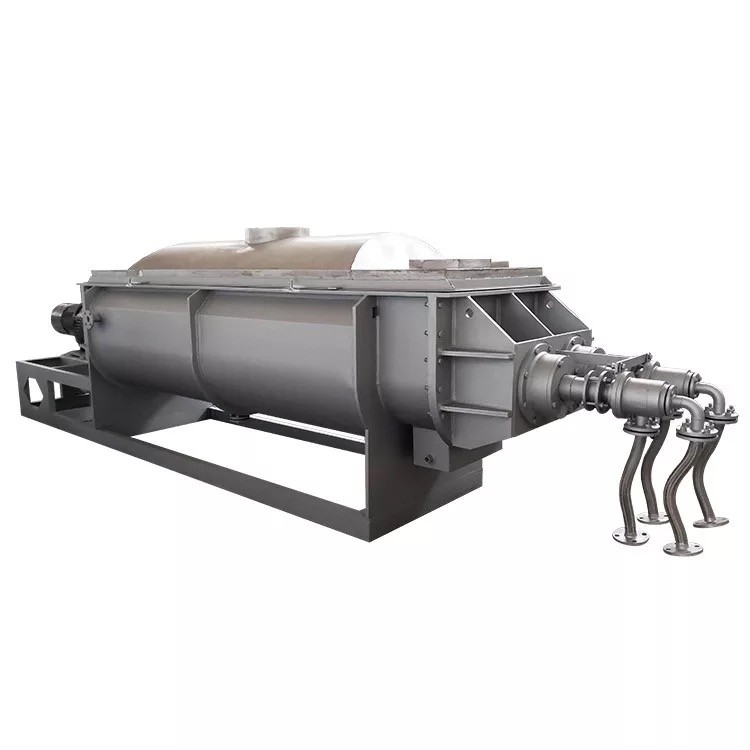

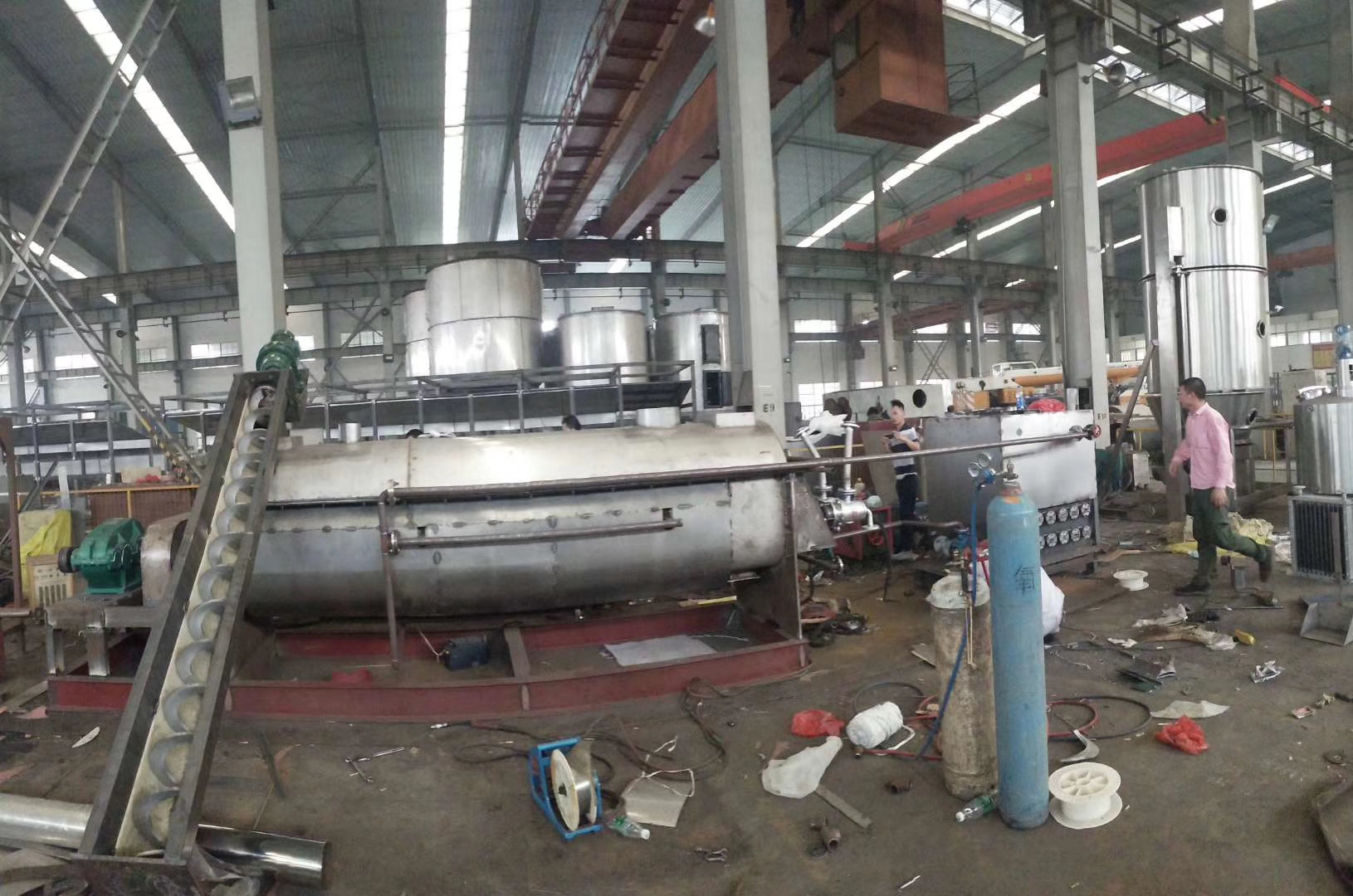

Factory Price Hollow Paddle Dryer Sludge Drying Machine
Application
The paddle dryer has been successfully used in food, chemical, petrochemical, dye, industrial sludge and other fields. The heat transfer, cooling, and agitation characteristics of the equipment enable it to perform the following unit operations: calcination (low temperature), cooling, drying (solvent recovery), heating (thawing), reaction, and sterilization. The agitating blade is also a heat transfer surface, which increases the heat transfer area per unit effective volume and shortens the processing time. The wedge-shaped blade heat transfer surface has a self-cleaning function. Compression - the expansion and agitation function makes the material mix evenly. The material moves in a "plug flow" along the axial direction, and the temperature, humidity, and mixing gradient of the material are small in the axial interval.
Technical parameters
Item | WKS-P3 | WKS-P9 | WKS-P13 | WKS-P18 | WKS-P29 | WKS-P41 | WKS-P52 |
Model | |||||||
Heating area(m2) | 3 | 9 | 13 | 18 | 29 | 41 | 52 |
Effective area(m3) | 0.06 | 0.32 | 0.59 | 1.09 | 1.85 | 2.8 | 3.96 |
Speed(rmp) | 15 to 30 | 10 to 25 | 10 to 25 | 10 to 20 | 10 to 20 | 10 to 20 | 10 to 20 |
Power(kw) | 2.2 | 4 | 5.5 | 7.5 | 11 | 15 | 30 |
Machine width A(mm) | 306 | 584 | 762 | 940 | 1118 | 1296 | 1476 |
Total width B(mm) | 736 | 841 | 1066 | 1320 | 1474 | 1676 | 1854 |
Machine width C(mm) | 1956 | 2820 | 3048 | 3328 | 4114 | 4724 | 5258 |
Total length D(mm) | 2972 | 4876 | 5486 | 5918 | 6808 | 7570 | 8306 |
Distance (feeding to discharge) E(mm) | 1752 | 2540 | 2768 | 3048 | 3810 | 4420 | 4954 |
Central height F(mm) | 380 | 380 | 534 | 610 | 762 | 915 | 1066 |
Total height H(mm) | 762 | 838 | 1092 | 1270 | 1524 | 1778 | 2032 |
Equipment characteristics
1. The energy consumption of the blade dryer is low: due to indirect heating, there is not a large amount of air carrying heat, and the outer wall of the dryer is provided with an insulation layer. For the slurry material, only 1.2 kg of water vapor is required to evaporate 1 kg of water.
2. The blade dryer system has a low cost: it has a huge heat transfer surface in the effective volume, which shortens the processing time and reduces the size of the device. It greatly reduces the building area and building space.
3. Wide range of processing materials: Different heat media can be used to process both heat sensitive materials and materials requiring high temperature treatment. Commonly used media are: water vapor, heat transfer oil, hot water, cooling water, etc. It can be operated continuously or intermittently and can be applied in many fields.
4. Small environmental pollution: no air is used, and dust materials are rarely entrained. The solvent evaporation of the material is small and easy to handle. Closed loops can be used for contaminated materials or for conditions requiring recovery of solvents.
5, low operating costs: the device operates normally, only 1 hour / day · people. Low speed mixing and reasonable structure. The amount of wear is small and the maintenance cost is low.
6. Stable operation: Due to the special compression-expansion and agitation of the wedge-shaped blade, the material particles are fully in contact with the heat transfer surface. In the axial interval, the temperature, humidity and mixing gradient of the material are small, thus ensuring Process stability.

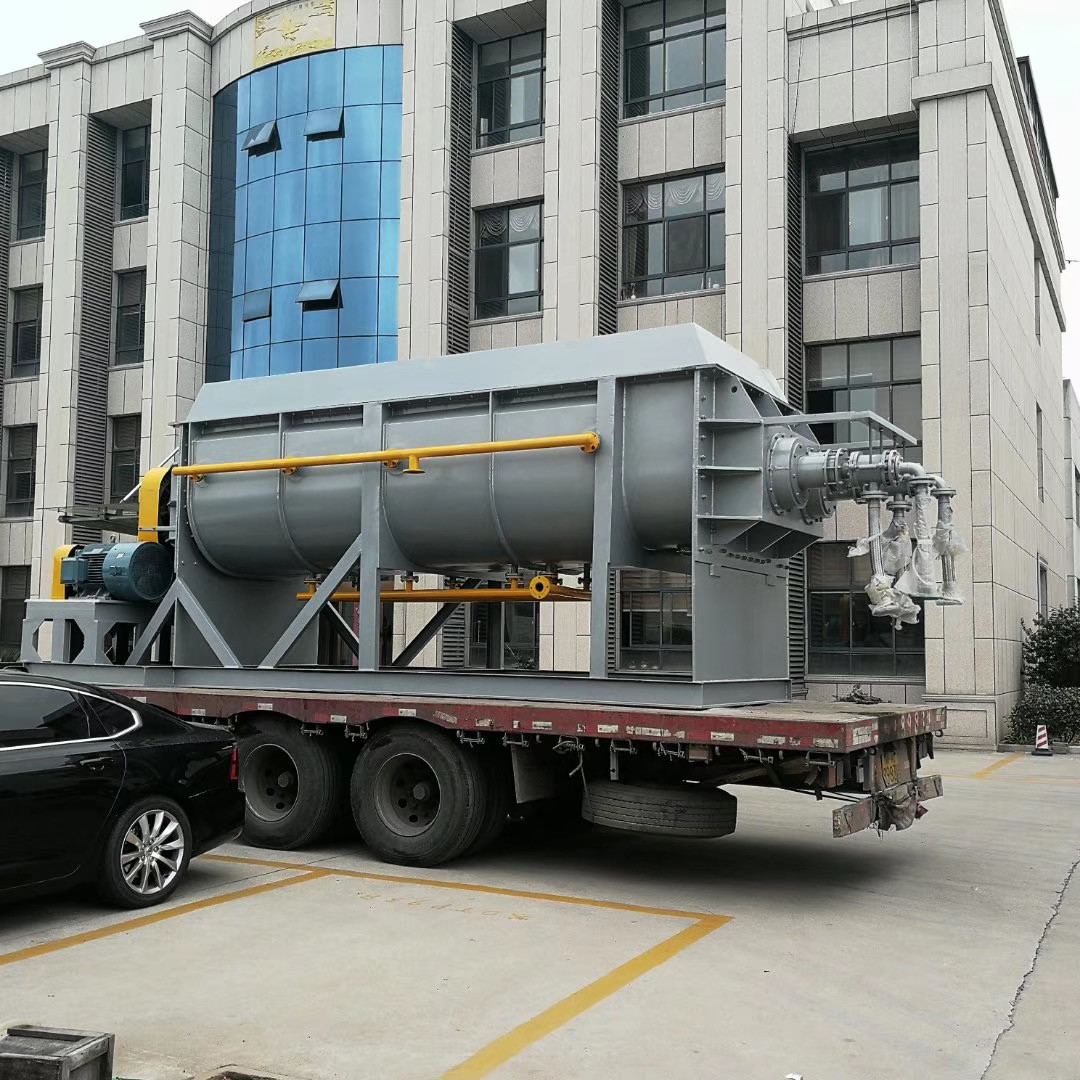

Introduction
The wedge type hollow paddle dryer can indirectly heat or cool the paste, granular, powder and slurry materials, and can perform unit operations such as drying, cooling, heating, sterilization, reaction, low temperature calcination and the like. The special wedge-type agitating heat transfer paddle in the equipment has high heat transfer efficiency and self-cleaning function of the heat transfer surface.

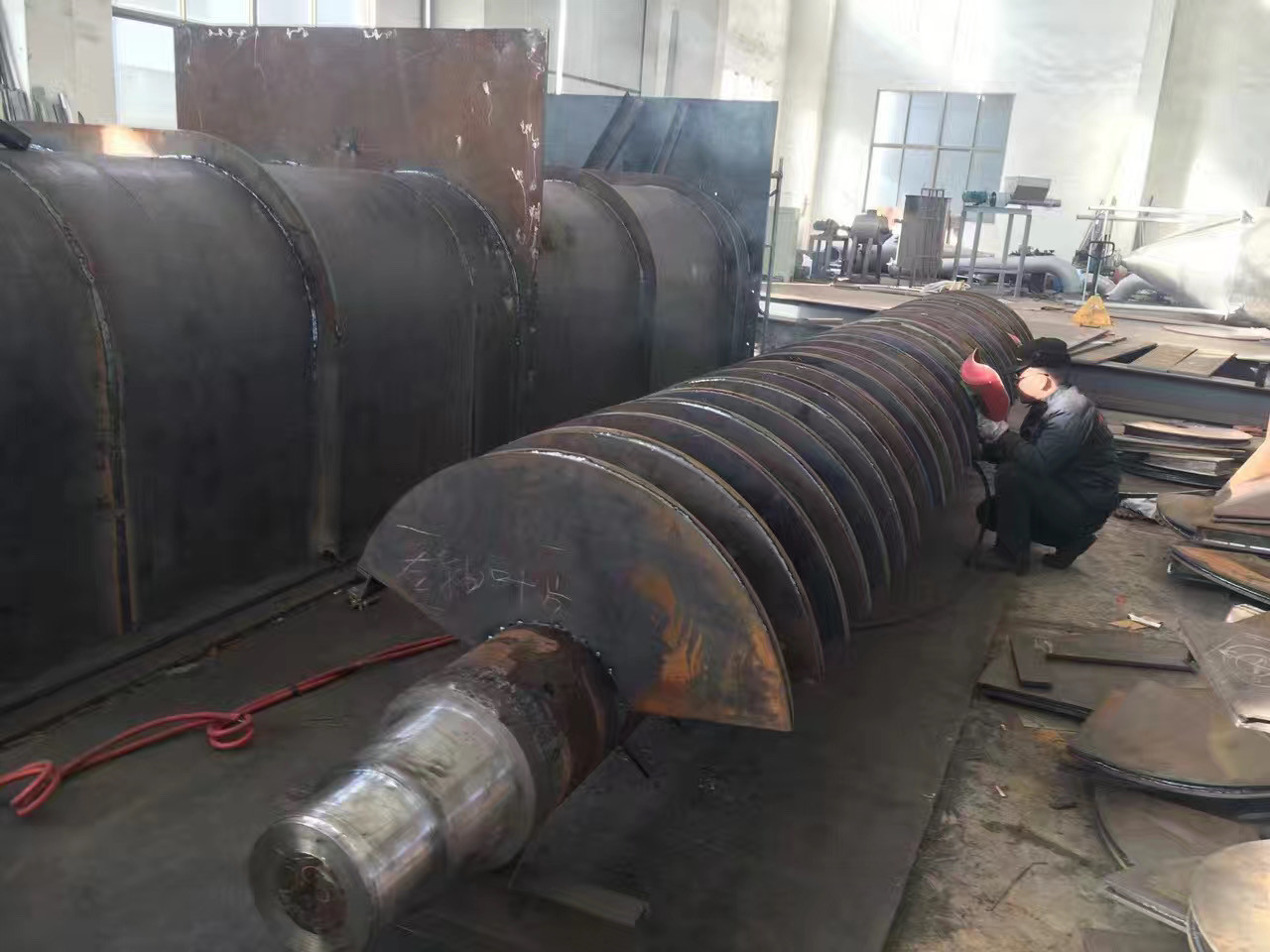

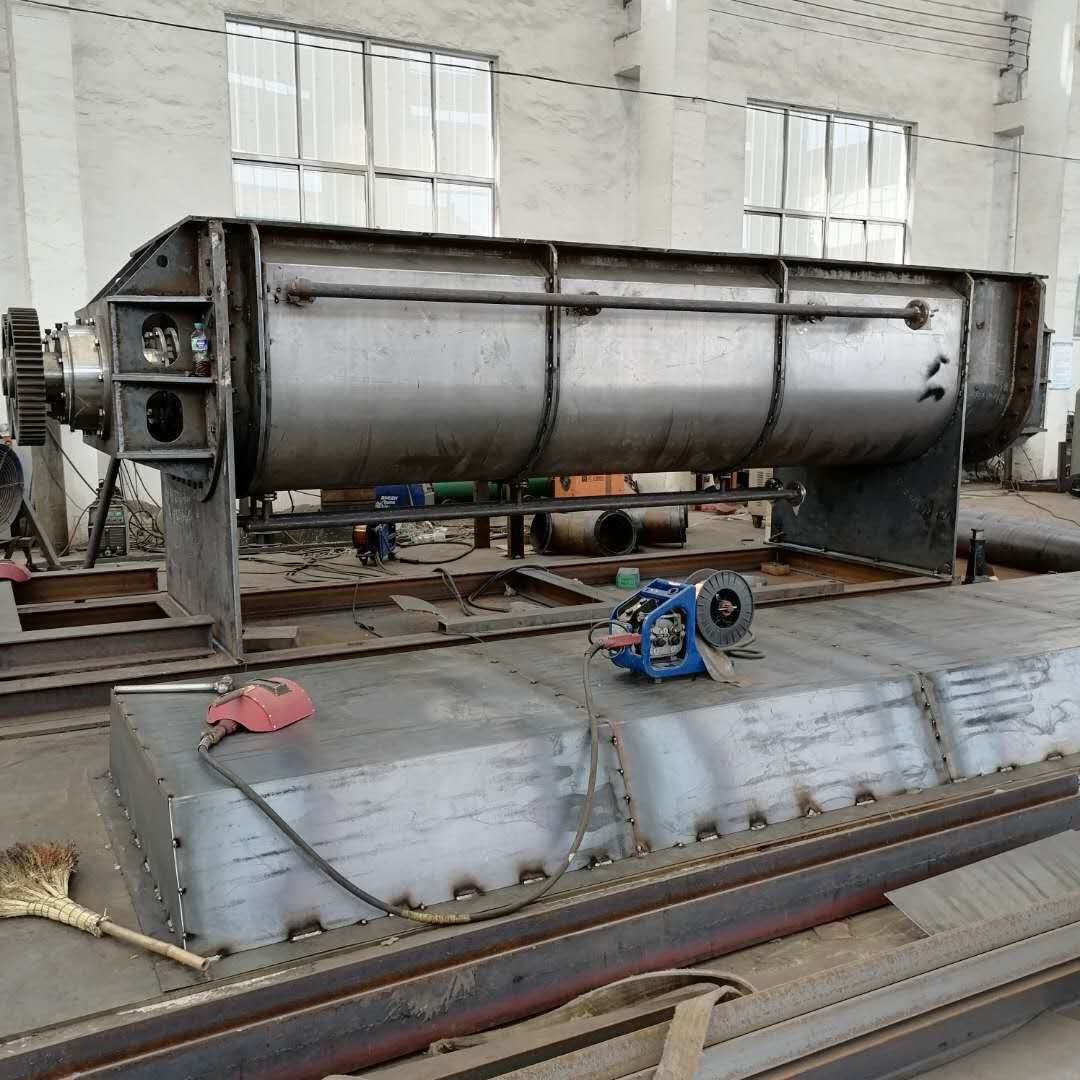

A wedge-shaped hollow blade is densely arranged on the hollow shaft, and the heat medium flows through the blade through the hollow shaft. The heat transfer area in the effective volume per unit is large, and the temperature of the heat medium is from -40 ° C to 300 ° C. It can be water vapor or liquid type: such as hot water and heat transfer oil. Indirect conduction heating, no air is carried away to remove heat, and heat is used to heat the material. The heat loss is only the heat dissipation to the environment through the insulation of the body. The wedge-shaped blade heat transfer surface has a self-cleaning function. The relative movement of the material particles and the wedge surface produces a scrubbing action, which can wash away the adhering material on the wedge surface, so that a clean heat transfer surface is maintained during operation. The housing of the paddle dryer is W-shaped, and two to four hollow agitator shafts are generally arranged in the housing. The housing has a sealed end cap and an upper cover to prevent material dust from leaking out and collecting material solvent vapor. A baffle is arranged at the discharge port to ensure the height of the material level, so that the heat transfer surface is fully covered by the material. The heat transfer medium passes through the rotary joint and flows through the casing jacket and the hollow agitating shaft. The hollow agitating shaft has different internal structures according to the type of the heat medium to ensure an optimal heat transfer effect.
