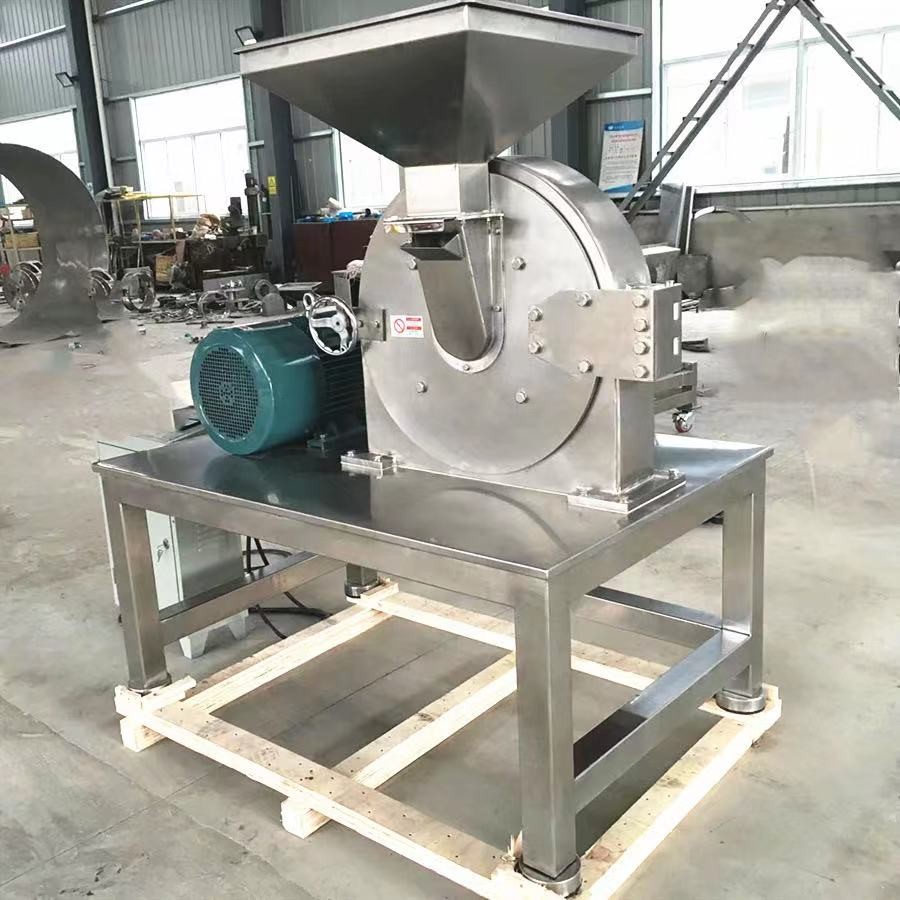

Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal

Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal
Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal
Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal

Large Image :  Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal

Product Details:
Place of Origin: CHINA
Brand Name: WKS
Certification: CE
Model Number: WKS-20B
Payment & Shipping Terms:
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Normally it is packed in the plywood case, or loaded directly in the container after film wrapping
Delivery Time: 10-30 Working Days
Payment Terms: T/T
Supply Ability: 10Sets Per Month

Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal

Description
Name: Universal Crusher Function: Grinding Material
Capacity: 60-150kg/h Feature: High Efficiency
Color: Silver Fineness: 2-120 Mesh
MOQ: 1 Set Warranty: 1Year
High Light:

Stainless Steel Sugar Grinder Pulverizer

,

4KW sugar grinder pulverizer

,

Custom Chinese Herbal pulverizer

Stainless Steel High Efficiency Grinder Pulverizer Machine for Chinese Herb



Universal Crusher



Technical Parameters



Model WKS-20B WKS-30B WKS-40B WKS-50B WKS-60B
Capacity (kg/h) 60-150 100-300 160-800 200-1000 300-1500
Shaft speed (r/min) 4500 3800 3400 3200 2800
Fineness size (mesh) 2-120 2-120 2-120 2-120 2-120
Motor power (kW) 4 5.5 7.5 11 15
Weight (kg) 180 260 360 450 550
Dimension (mm) 550*600*1250 600*700*1450 750*800*1550 800*850*1600 1000*900*1680





Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal 0

Custom 4KW Stainless Steel Sugar Grinder Pulverizer For Chinese Herbal 1

Henan Workers Machinery Co.Ltd. is a company specialized in researching, developing and supplying pharmaceutical, chemical and food. Its business scope includes mechanical equipment, drying equipment, microwave equipment and accessories, mechanical and electrical equipment and accessories, electronic products and accessories. This machine utilizes the relative movement between the high-speed movable gear plate and the fixed gear plate, so that the crushed material can be crushed by the comprehensive effects of tooth impact, shear and friction, and material collision with each other. This machine has simple structure, stable operation, low noise and good crushing effect. The crushed materials are directly discharged from the crushing chamber. The particle size can be achieved by selecting screens with different apertures. In addition, the machine is all stainless steel. The inner wall of the casing is all machined to achieve a smooth surface, which has changed the rough and powder accumulation on the inner wall of the previous models, and made the production of medicines, foods, and chemicals more in line with national standards.

At present, the main export pulverizers include universal pulverizers, coarse pulverizers. This product is a universal pulverizer, which is mainly suitable for the pulverization of brittle materials in the pharmaceutical, chemical, food, pesticide and other industries. It has the characteristics of technical stability, high product output, beautiful appearance and wide application range. In addition, this product has a one-year warranty period after it is sold. During this period, you can contact the after-sales service in time for any problems with the product. Installation and maintenance are very convenient and simple. If customers have different needs, such as the amount of product processing and the size of the crushing fineness of the processed products, they can communicate with us in time to select the correct and suitable model. This product can also be customized. Different models have different product requirements, so you can fully communicate with our engineers before purchasing to choose the exact model suitable for local products. It also has the characteristics of high efficiency and easy operation. If you encounter problems during the operation, you can contact us in time. We will introduce you the model of this product, the scope of application of each product model and its installation method. If there is a need, you can contact us in time, and we will contact you as soon as possible to provide you with timely and detailed services.
